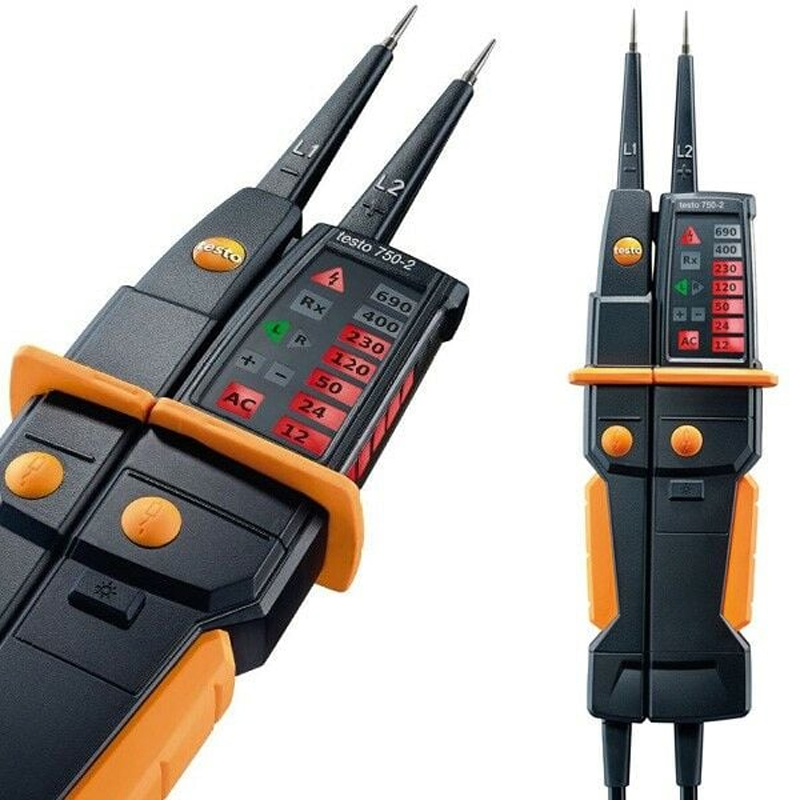

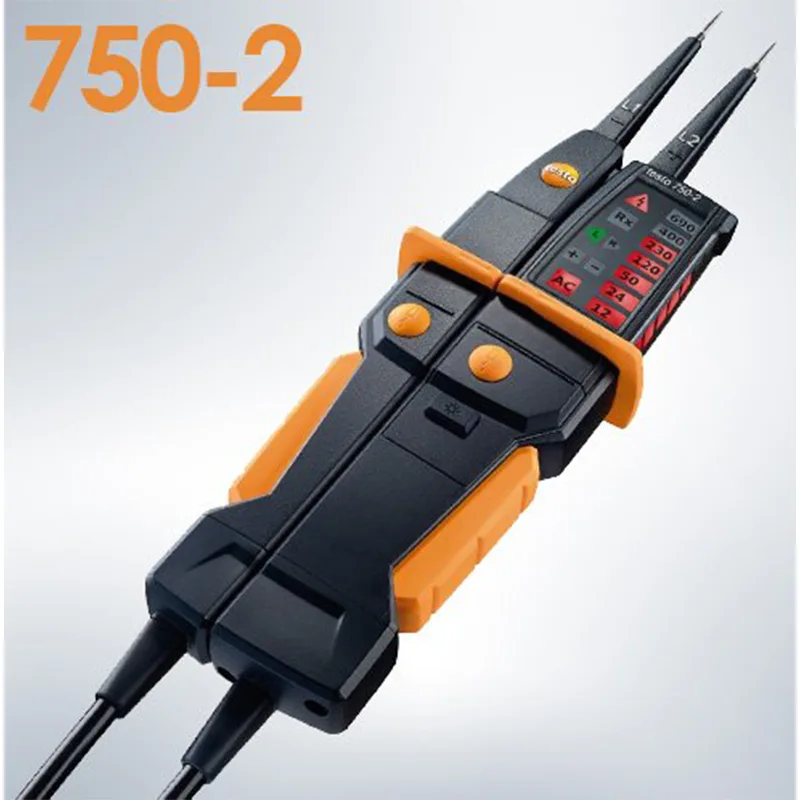

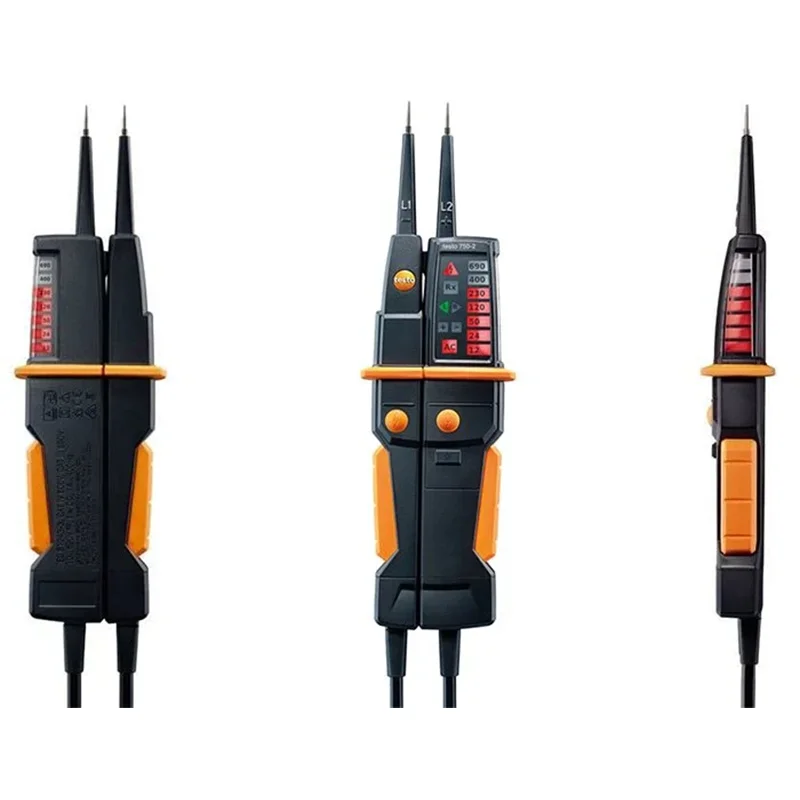

Testo 750-2 Voltage Test Device

Testo 750-2 Voltage Test Device

Testo 750-2 voltage test device; is a versatile voltage tester with an LED display capable of performing AC and DC voltage, continuity testing, and rotating magnetic field testing.
It also features an RC trigger function.
Testo 750-2 voltage test device ensures reliable determination of voltage in switches.
The 750-2 device, produced in Germany, complies with the latest EN 61243-3:2010 standard and has safety features according to CAT III.

• Our Testo 750-2 device's measurement functions; can be listed as AC and DC voltage, continuity testing, single-pole voltage testing, and rotating magnetic field testing.

• To determine if conductors are live, single-pole voltage testing is used.

• The most important difference of the Testo 750-2 voltage test device from standard devices on the market, is its extremely practical and versatile display that can be easily seen from every position and place.

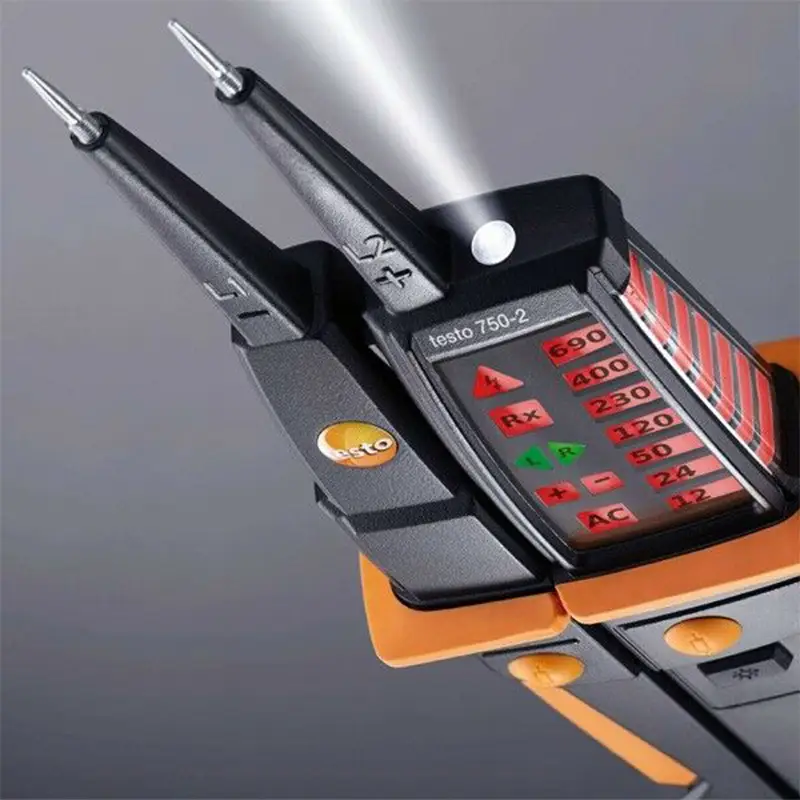

• In addition to measurement point illumination, voltage is clearly displayed thanks to its unique fiber optic technology. There is also a practical flashlight for measurement point illumination.

• Testo 750-2 detector, complies with the latest EN 61243-3:2010 standard and has safety features according to CAT III.

• The device's non-slip ring, ergonomic shape, and robust body, provide great comfort while working.

• Thanks to its robust design, it is durable and reliable despite intensive use.

• To test residual current circuit breaker, it has an RC trigger function. The vibrating current button prevents accidental triggering.

• The product's external structure has IP64 protection class; provides full protection against dust and protection against splashing liquids.

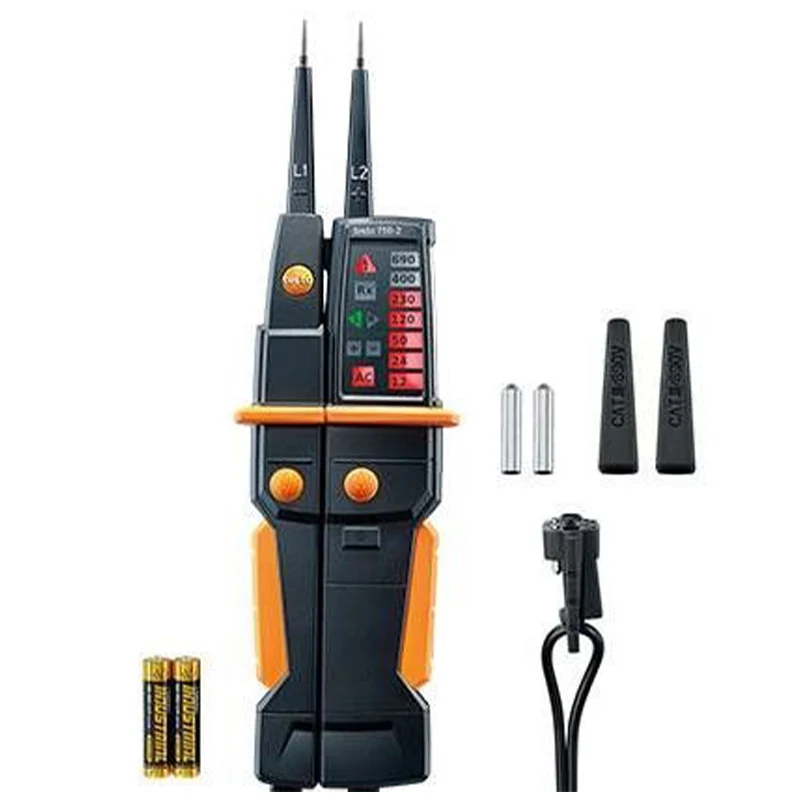

• Delivery scope; Testo 750-2 voltage test device, batteries, measuring tip protector, measuring tip caps, factory test certificate, and user manual.

Technical Specifications

• AC Voltage Measurement Range: 12 V … 690 V

• AC Voltage Accuracy: Complies with DIN EN 61243-3:2011

• DC Voltage Measurement Range: 12 V … 690 V

• DC Voltage Accuracy: Complies with DIN EN 61243-3:2011

• Continuity Test: Less than 500 kΩ

• Operating Temperature: -10 degrees … +50 degrees

• Power Source: 2 x AAA batteries

• Protection Class: IP64

• Storage Temperature: -15 degrees … +60 degrees

• Dimensions: 270 x 70 x 35 mm

• Weight: 295 gr

• Rotating Magnetic Field Test: 100 ... 690 V AC 50/60 Hz

• Measurement Category: CAT IV 600 V, CAT III 1,000 V

• Certificates: TÜV, CSA, CE

• Single-Pole Voltage Test: 100 ... 690 V AC 50/60 Hz
