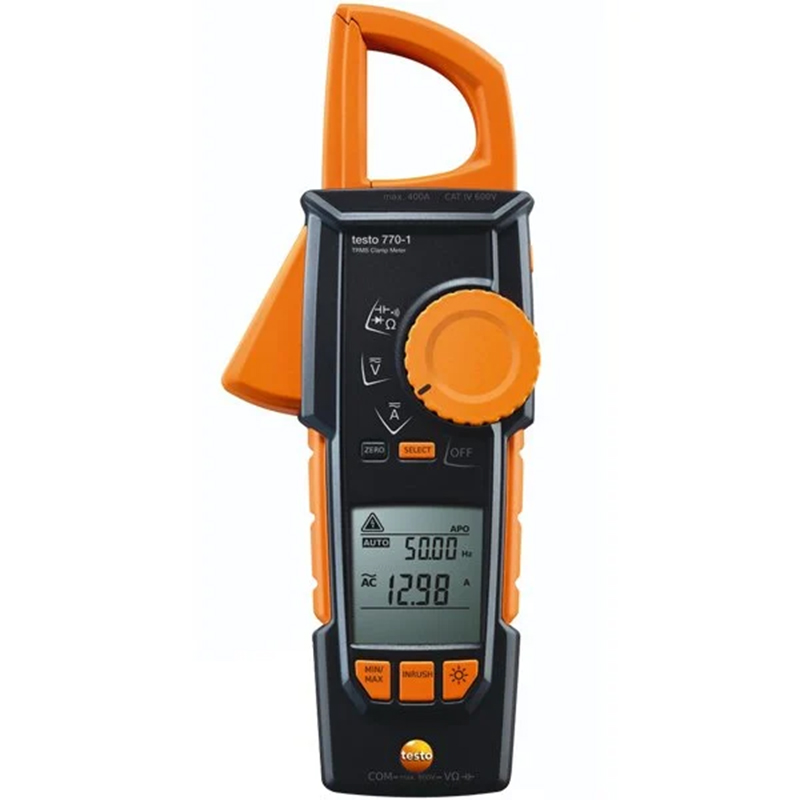

The Testo 770-1 clamp meter allows you to measure current without contact on tightly packed power cables or conductors.
Thanks to its unique gripping mechanism, it can grasp each cable easily and securely.
It automatically determines and selects other electrical parameters such as AC/DC and resistance, continuity, diode capacitance.
With its large 2-line LCD screen, you can easily read measurement data in low-light environments.
You can also use the Testo 770-1 clamp meter for inrush current measurement.
For maximum flexibility, the clamp arm of the device can be completely retracted.
You can easily capture tightly packed cables in switch cabinets without any hassle.
The use of Testo 770-1 clamp meter is very easy and reliable.
AC Current Measurement Range: 400 A
AC Current Accuracy: ± (2 % of the measurement value + 5 Digits)
AC Current Resolution: 0.1 A
DC Current Measurement Range: 400 A
DC Current Accuracy: ± (2 % of the measurement value + 5 Digits)
DC Current Resolution: 0.1 A
AC Voltage Measurement Range: 4,000 V / 40.00 V / 400.0 V / 600 V
AC Voltage Accuracy: ± (1.0 % of the measurement value + 3 Digits)
AC Voltage Resolution: 1 mV / 10 mV / 100 mV / 1 V
DC Voltage Measurement Range: 400 mV / 4,000 V / 40.00 V / 400.0 V / 600 V
DC Voltage Accuracy: ± (0.8 % of the measurement value + 3 Digits)
DC Voltage Resolution: 1 mV / 10 mV / 100 mV / 1 V
Capacitance Measurement Range: 51.20 nF / 512.0 nF / 5.120 µF / 51.20 µF / 100.0 µF
Capacitance Accuracy: ± (1.5 % of the measurement value + 5 Digits)
Capacitance Resolution: 0.01 nF / 0.1 nF / 0.001 µF / 0.01 µF / 0.1 µF
Resistance Measurement Range: 400.0 Ohm / 4.000 kOhm / 40.00 kOhm / 400.0 kOhm / 4.000 MOhm / 40.00 MOhm
Resistance Accuracy: ± (1.5 % of the measurement value + 3 Digits)
Resistance Resolution: 0.1 Ohm / 1 Ohm / 10 Ohm / 100 Ohm / 1 kOhm / 10 kOhm
Frequency Measurement Range: 99.99 Hz / 999.9 Hz / 9.999 kHz
Frequency Accuracy: ± (0.1 % + 1 Digit)
Frequency Resolution: 0.01 Hz / 0.1 Hz / 1 Hz
Diode Test: Yes
Continuity Test: Yes
Display Illumination: Yes
Min/Max Feature: Yes
Hold Feature: Yes
Operating Temperature: -10 degrees … +50 degrees
Display Count: 4,000
Storage Temperature: -15 degrees … +60 degrees
Dimensions: 243 x 96 x 43 mm
Weight: 378 g
