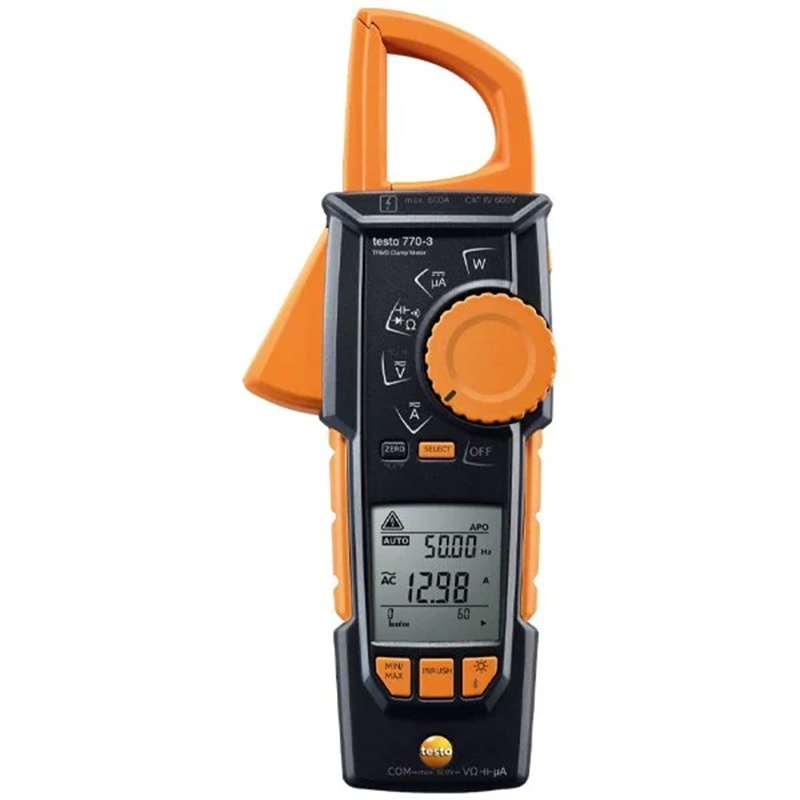

Notify me when its in stockTesto 770-3 Bluetooth Clamp Meter; is a high-quality clamp meter that allows you to measure current in crowded power cables or conductors without contact, and you can transfer data to your smartphones with its Bluetooth feature. The movable clamp arm retracts completely into the device, allowing you to grip conductors like tightly packed cables correctly.
With Testo 770-3 clamp meter; AC/DC voltage, AC/DC current, resistance and diode, frequency, active power, reactive power, apparent power, direct current/DC voltage power, and capacitance measurements can be made.
One of the biggest features of this digital clamp meter device is that it can be connected to smart devices via Bluetooth. You can instantly track measurement results with the smart device you connect.
With the "testo Smart probes" application, which you can download from Play Store or App Store to your smart device, you can view measurement results through this application.
To use the device, your smart device's operating system must be iOS 8.3 or newer, Android 4.3 or newer.
One of the most important features of this device is the True RMS function. True-RMS (rms = root of the square averages) is a feature that can measure alternating current (AC) or AC voltage.
To use the Testo 770-3 clamp meter device, your mobile device or tablet must have Bluetooth 4.0 feature.
The unique gripping mechanism makes working in tight measurement points easier.
With the Testo Smart Probes application, you can view data as a graph and document it directly with a report.
You can see the current value of the cable passing through the clamp arm of this clamp meter on the screen without contact. Thanks to its wide clamp design, you can easily use the device on thick cables.
Testo 770-3 ammeter detects direct and alternating current in the field of current and voltage and automatically selects other parameters such as resistance, diode, continuity, and capacitance.
There is a large backlit 2-line LCD screen. You can easily read measurement data with backlighting in low-light environments.
Another important feature of the Testo 770-3 digital clamp meter device is its capacity to measure very high capacitance like 60 mF.
With the Testo 0590 0021 adapter, which you will optionally purchase, you can connect a K-type probe to this clamp meter device.
With optionally purchased K-type probes, you can measure temperatures between -20°C ... +500°C.
For maximum flexibility, the clamp arm of the device is fully retractable.
It can be easily used in switch cabinets. You can easily catch tightly packed cables in the cabinets without any difficulty.
With the "INRUSH" button, you can measure the instantaneous current value. With this feature, you can see the peak value of the current.
With the "HOLD" button on the right side of the Testo 770-3 ammeter, you can fix the values you measured on the LCD screen.
With the Min/Max button, you can show the maximum or minimum value of the measurements you have taken on the LCD screen.
With the automatic shutdown feature, the device provides energy savings by automatically shutting down when not in use.
Note: To activate the Bluetooth feature of the Testo 770-3 clamp meter device; while the device is off, hold down the light button and set the measurement clamp to the "A" position.
TECHNICAL SPECIFICATIONS
Power Factor Measurement Range : -1.00 … +1.00
Power Factor Accuracy : (10% of the measured value + 5 Digits)
Power Factor Resolution : 0.01
Diode Test : Available
Bluetooth : Available
Continuity Test : Available
Display Backlight : Available
Hold Feature : Available
Temperature Measurement with Adapter : Available
Automatic Shutdown : Available
Min/Max Feature : Available
Display Counter : Available
Standards : EN 61326-1, EN 61010-2-032, EN 61140
Display : Backlit LCD screen
Operating Temperature : -0 … +50 degrees
Storage Temperature : -10 … +60 degrees
Dimensions : 249 x 96 x 43 mm
Weight : 378 g
Power Source : 3 x 1.5 V AAA battery
