Wintact WT2110B Color Screen Paint and Coating Thickness Gauge

WT2110B 'Color Screen' Paint and Coating Thickness Gauge

• Screen: Color HD screen, backlit, horizontal-vertical auto-rotatable

• Measurement Modes: Single and Continuous

• Measurement Units: µm, mils, mm

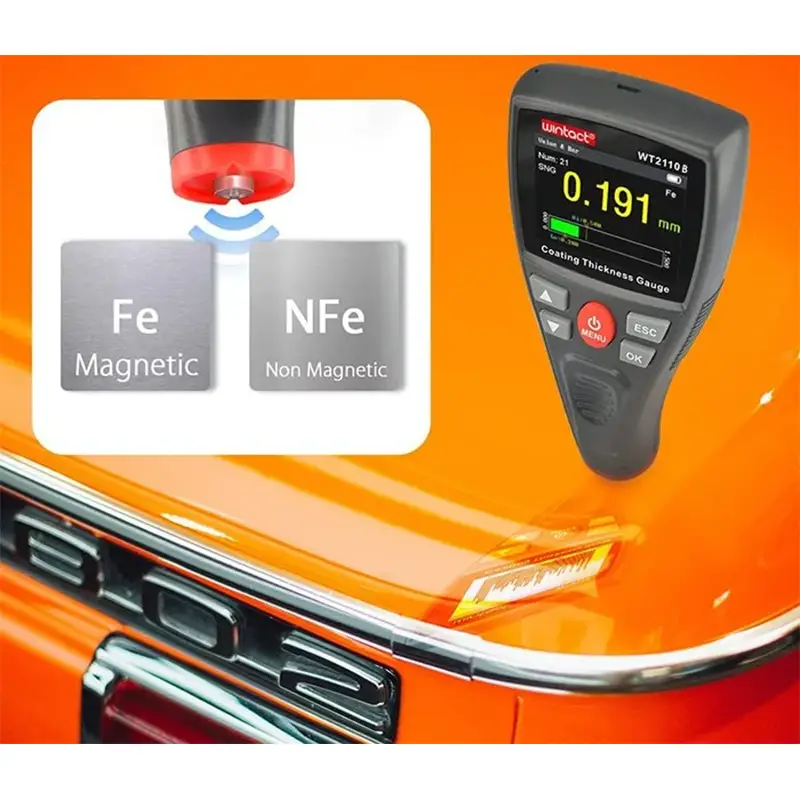

• Measurement Surfaces: Coating thickness measurement on metal and non-metal surfaces

• Calibration Types: Basic, Offset, Zero

• Auto Shutdown Time: Adjustable (2 minutes, 5 minutes, 10 minutes, 30 minutes, or off)

• Connection Features:

  • Connection to PC via USB

  • Connection to smartphone via Bluetooth

• Data Transfer:

  • Instant display of measurement values

  • Storage and archiving

  • Document sharing via email

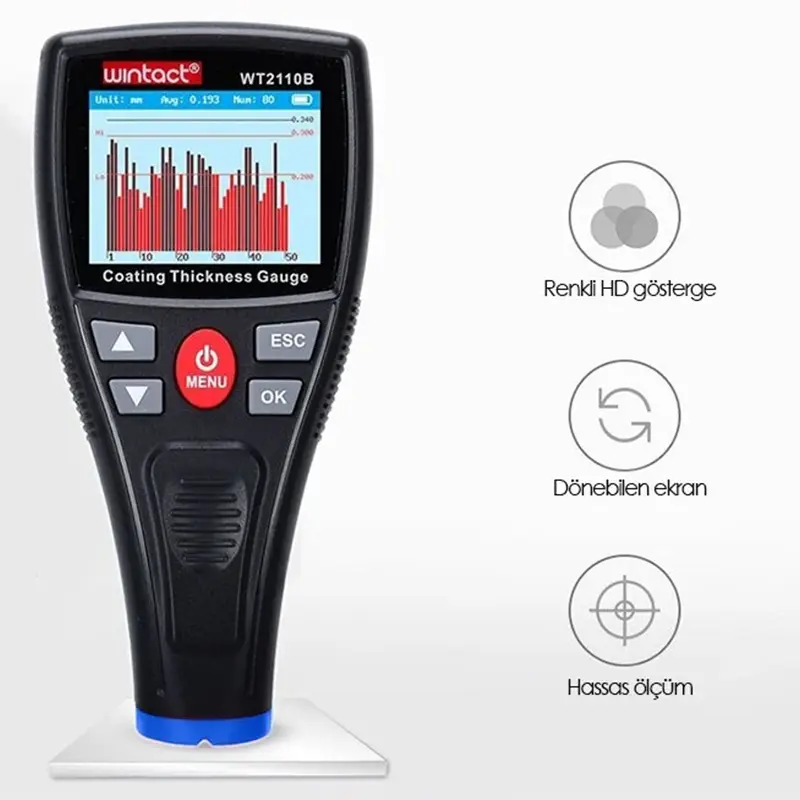

• Application Support: Computer and smartphone applications (with graphical analysis support)

• Screen Menu Colors: Blue (default), orange, red, purple, green, gray

• Power Source: Rechargeable batteries (3 pieces)

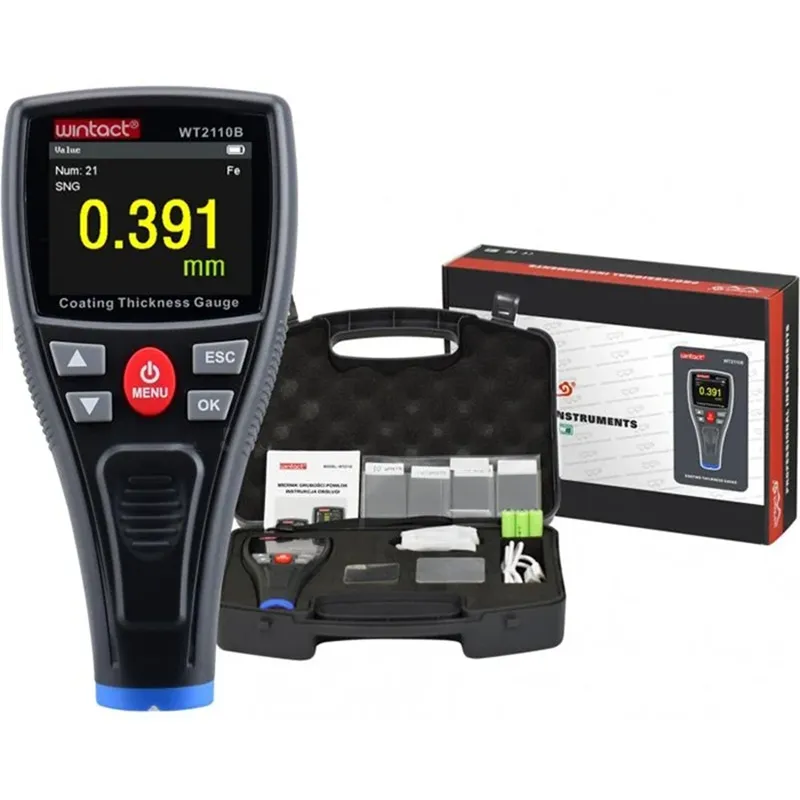

• Box Contents: Device, plastic carrying case, USB cable, power adapter, 3 rechargeable batteries, calibration set

• Note: This device does not measure the thickness of galvanized coatings.

TECHNICAL SPECIFICATIONS

• Measurement Range:

  • 0 ... 1500 µm

  • 0 ... 59 mil

  • 0 ... 1.5 mm

• Accuracy:

  • ≤ 150 µm: ±5 µm

  • 150 µm: ± (3% + 1 µm)

• Resolution:

  • 0.1 µm (for values less than 100 µm)

  • 1 µm (for values greater than 100 µm)

  • 0.1 mil

  • 0.001 mm

• Measurement Units: µm, mils, mm

• Magnetic Metal Substrate Diameter: 12 mm

• Screen: Color screen

• Computer Connection: USB connection to PC

• Size: 70.3 x 38.6 x 149.6 mm

• Weight: 137 grams

• Power Source:

  • 3 pieces 1.2 V NiMH rechargeable battery (total weight: 36.5 grams)

  • 5 V / 1 A power adapter
