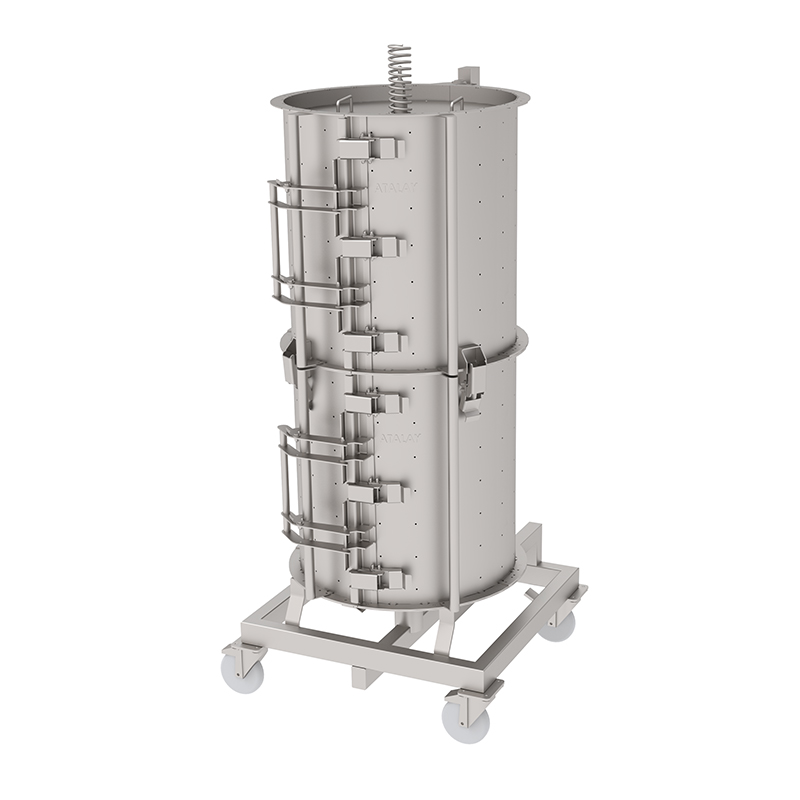

Atalay Döner Mold, 81x76.4x157 Cm, ADK 14 2

Atalay Döner Mold, 81x76.4x157 Cm, ADK 14 2

General Features

• Easily transportable thanks to its wheels.
• Provides easy product filling with segmented cylindrical blocks.
• Easily lifted with the döner lift.
• Provides easy use with hinged cylindrical blocks.
• Completely stainless body and wheels.
• The mold's lateral joint is enhanced with a rigid lock system to increase hinge durability.
• This lock system also provides extra advantage in mold disassembly.
• Provides quick connection and precise block alignment with pin structure in vertical mold joint.
• Stability in geometric dimension tolerance of the mold is increased.
• Mold diameter is 620 mm. The mold consists of 3 blocks.
• Wheels provide ease of movement as they open and close with the mold's semicircles.
• Geometric dimension stability of the skewer is increased with the centering sheet on the top section.

Technical Specifications

• Number of Covers: 2x h;600 mm
• Mirrors: 440/320/200 mm
• Inner Height: 1200 mm
• Inner Diameter: 560 mm
• Dimensions: 810x764x1570 mm
• Weight: 140 Kg
