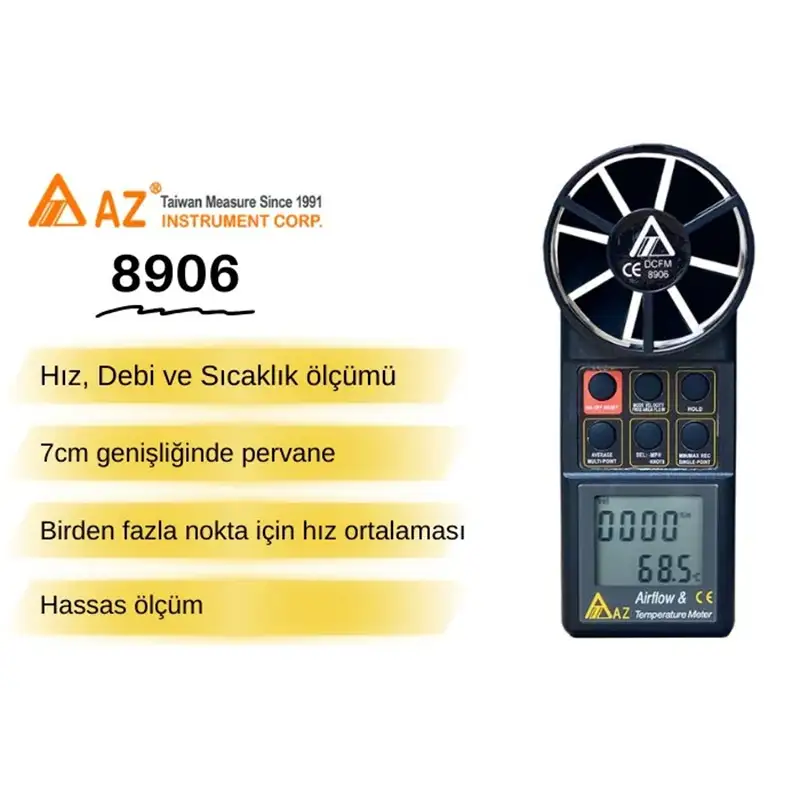

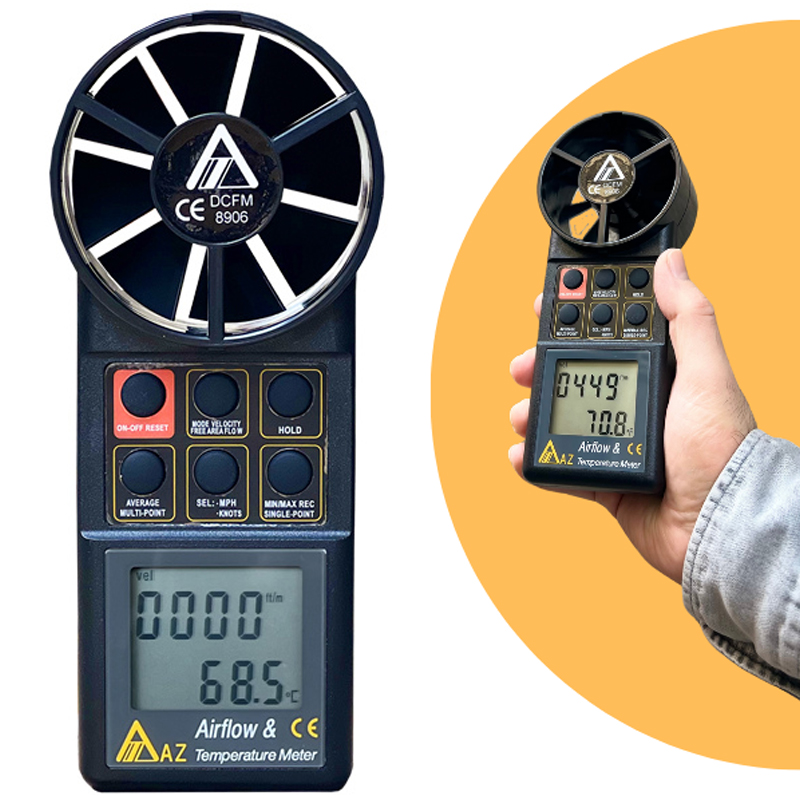

AZ 8906 Professional Air Speed and Air Flow Meter

AZ 8906 Professional Air Speed and Air Flow Meter

• Measurement Functions: Device equipped with a large propeller probe capable of measuring air speed, air velocity, air flow rate, and temperature.

• One-Handed Use: Ergonomic design allows comfortable single-handed operation.

• Air Speed: Refers to the speed of an aircraft moving through the air, measured in knots or km/h.

• Air Velocity: Air movement speed used in ventilation systems and wind tunnels, measured in m/s or ft/min.

• Air Volume: The amount of air passing through a specific area, measured in m³/h, L/s, or CFM.

• User-Friendly Keypad: Provides quick access to all functions.

• Application Areas: Ideal choice as a wind speed monitoring device in heating, ventilation, air conditioning, and climate control sectors.

• Propeller Size: Measurement propeller with 7 cm diameter.

• Max, Min, Average Values: Can display maximum, minimum, and average of measured values.

• Temperature Units: Offers Celsius and Fahrenheit options.

• Propeller and Temperature Sensor: Measures both air flow and ambient temperature.

• Hold Function: Freezes real-time measurements for detailed examination.

• Auto Power Off: Automatically shuts down after 20 minutes of inactivity to save power.

• Sleep Mode: Allows user-adjustable energy consumption settings.

• Low Battery Indicator: The LCD screen flashes to warn low battery.

• Average Air Speed: Increases accuracy by calculating from eight different points.

• Air Volume Calculation: Useful for measuring the efficiency of ventilation systems.

Technical Specifications

• Air Speed Measurement Range: 0.4 m/s … 30 m/s

• Air Speed Accuracy: ± (2% of reading + 0.2 m/s)

• Units for Air Speed: m/s | ft/min | km/h | MPH | knots | cm/s | cfm

• Air Temperature Measurement Range: -10°C … +50°C

• Air Temperature Accuracy: ±1°C

• Air Temperature Resolution: 0.1°C

• Units for Air Temperature: °C, °F

• Air Flow Measurement Range: 0 … 99999 m³/min

• Air Flow Resolution: 0.1 (0 … 999.9) or 1 (1000 … 9999)

• Propeller Diameter: 70 mm

• Temperature Response Time: 60 seconds

• Display: LCD

• Indicator Size: 40 x 34 mm

• Hold Feature: Yes

• Max/Min Feature: Yes

• Operating Temperature: 0°C … +50°C

• Storage Temperature: -10°C … +50°C

• Battery Life: 100 hours of continuous use

• Dimensions: 183 x 76 x 45 mm

• Power Supply: 1 x 9V battery

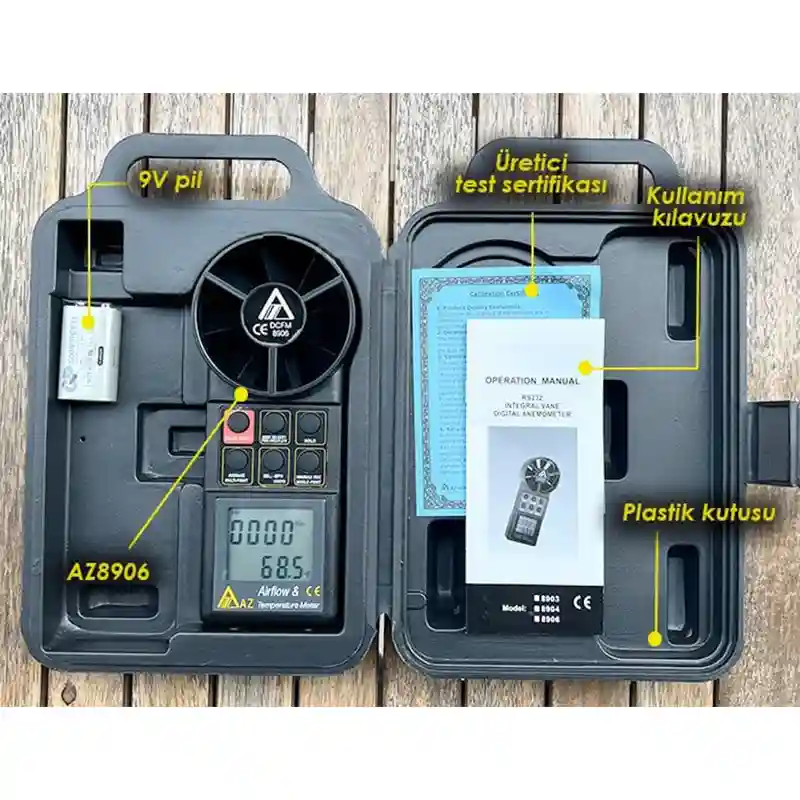

• Package Contents: Device, plastic carrying case, 9V battery, user manual
