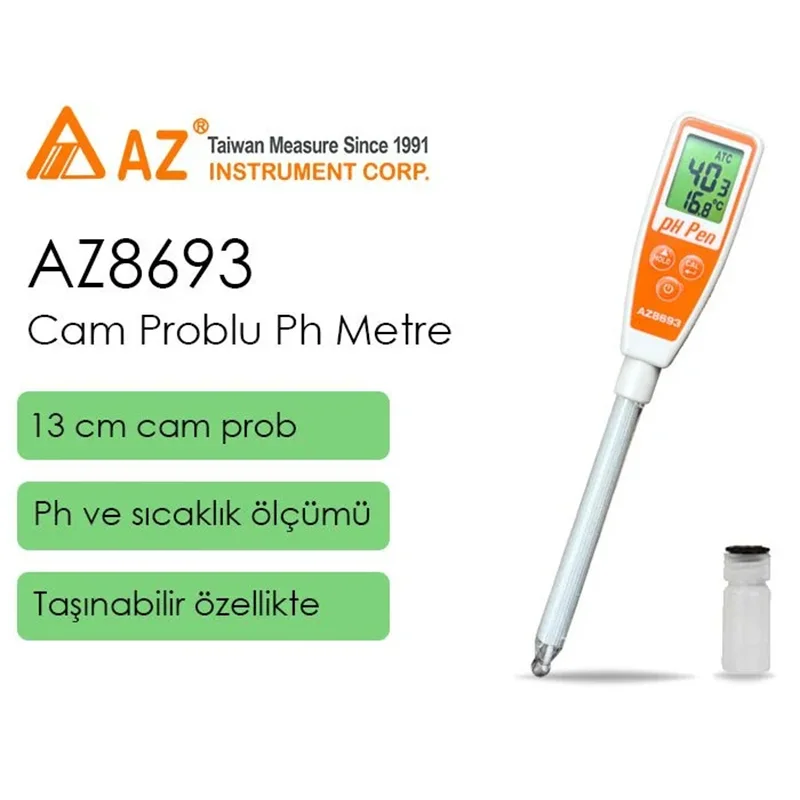

AZ 8693 Glass Probed pH Meter

AZ 8693 Glass Probed pH Meter

• Industrial and Laboratory Use: Suitable for laboratories, water treatment plants, and food processing industries.

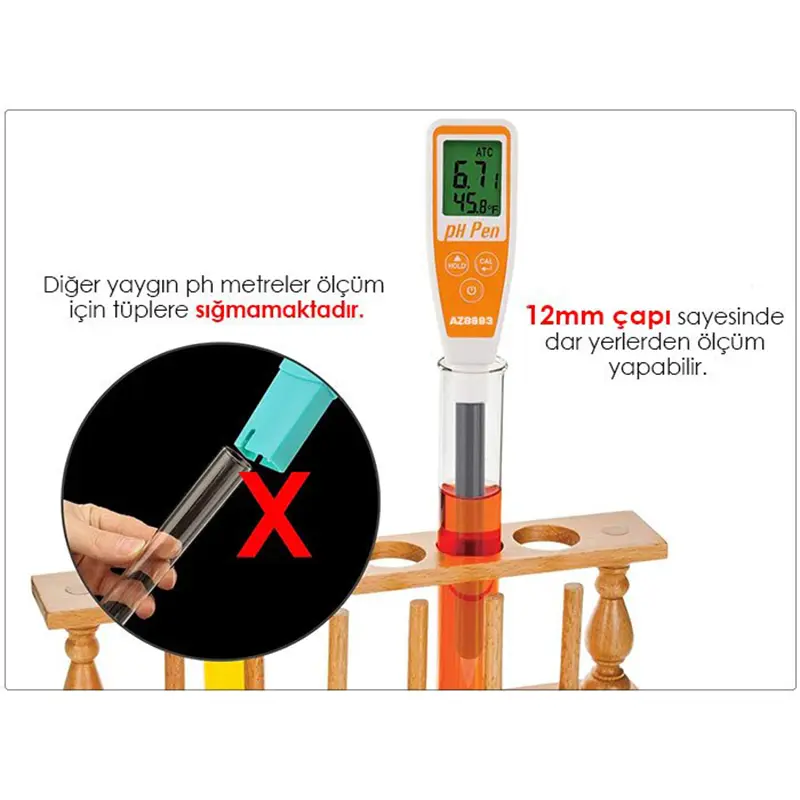

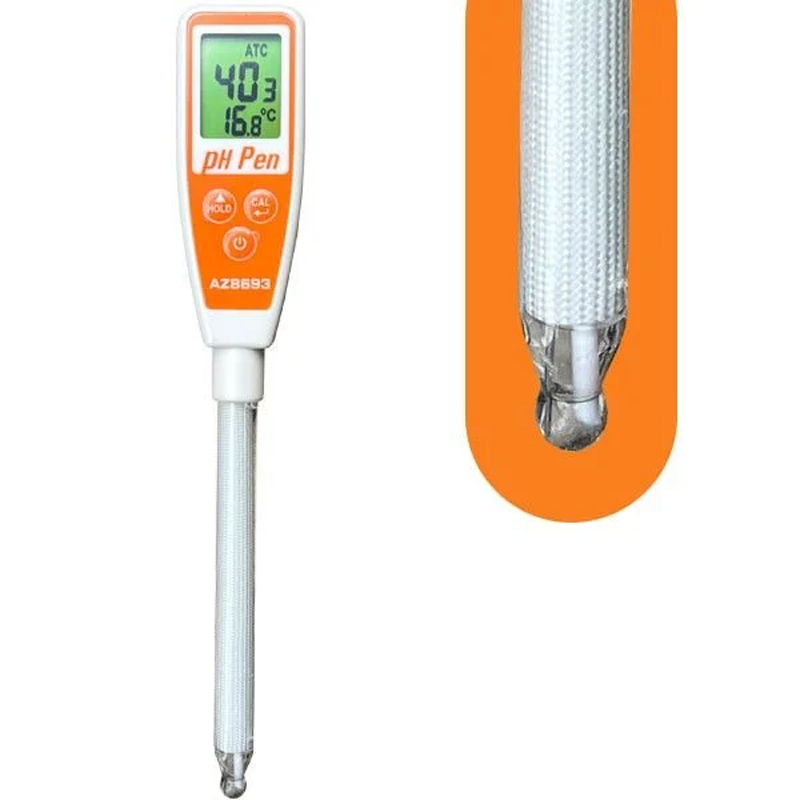

• Thin and Long Probe: The 130 mm long glass probe can easily enter narrow-mouthed test tubes.

• High Resolution Measurement: Provides 0.01 pH resolution in pH measurement and makes precise measurements.

• IP65 Protection Class: The display part is resistant to water and dust.

• Easy Calibration: User-friendly, 3-point calibration can be done with the CAL button.

• Measurement Stability Indicator: Indicates on the screen when the measurement values are stabilized and reliable.

• Backlit LCD Display: Easy-to-read display with dimensions of 29 x 22.5 mm.

• Hold Function: Locks the measured value on the screen, allowing for easy reading.

• Simultaneous Display of pH and Temperature: Both pH value and temperature (°C/°F) are displayed simultaneously.

• Low Battery Warning and Auto Shutoff: Warns when the battery is low, and automatically shuts off when not in use.

• Probe Protection: Should be stored in protective liquid to prevent damage when not in use.

Technical Specifications

• pH Measurement Range: 0.00 … 14.00 pH
• pH Accuracy: ±0.1 pH
• pH Resolution: 0.01 pH
• pH Calibration: 3-point, easily done by the user
• Temperature Measurement Range: 0 … 80 degrees
• Temperature Accuracy: ±1 degree
• Temperature Resolution: 0.5 degree (°C / °F)
• Measurement Units: pH, °C, °F
• Hold Feature: Yes
• Protection Class: IP65
• Device Dimensions: 224 x 36 x 12 mm
• Weight: 115 grams
• Power Source: 2 CR2032 batteries
• Operating Temperature: 0°C … 50°C
• Operating Humidity: % < 80 relative humidity
• Storage Temperature: -10°C … 50°C
• Storage Humidity: % < 90 relative humidity
• Probe Length: 130 mm
• Probe Diameter: 12 mm
• Probe Structure: Glass
• Electrolyte: Gel 3.3 M KCl
• Display Size: 29 x 22.5 mm

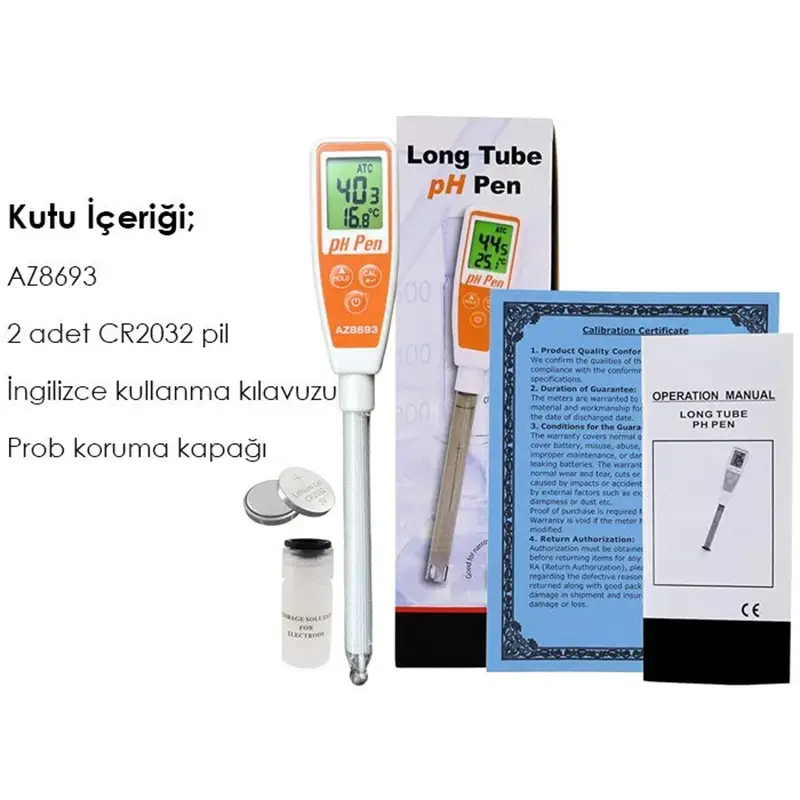

• Package Content:

• AZ 8693 pH meter device

• 2 CR2032 batteries

• English user manual

• Probe protective cap
