Notify me when its in stockThe Cem AT-8 tachometer is very easy to use, a tachometer that can measure both contact and non-contact.
With the test apparatus that comes with it, you can take measurements by contacting the surface, and with the reflector tapes that come with it, you can perform laser non-contact measurement by sticking them on the surface you will measure.
It is suitable for use in many sectors. It can measure the revolution of any rotating mechanism.
The Cem AT8 contact and non-contact tachometer can store 40 records in its memory.

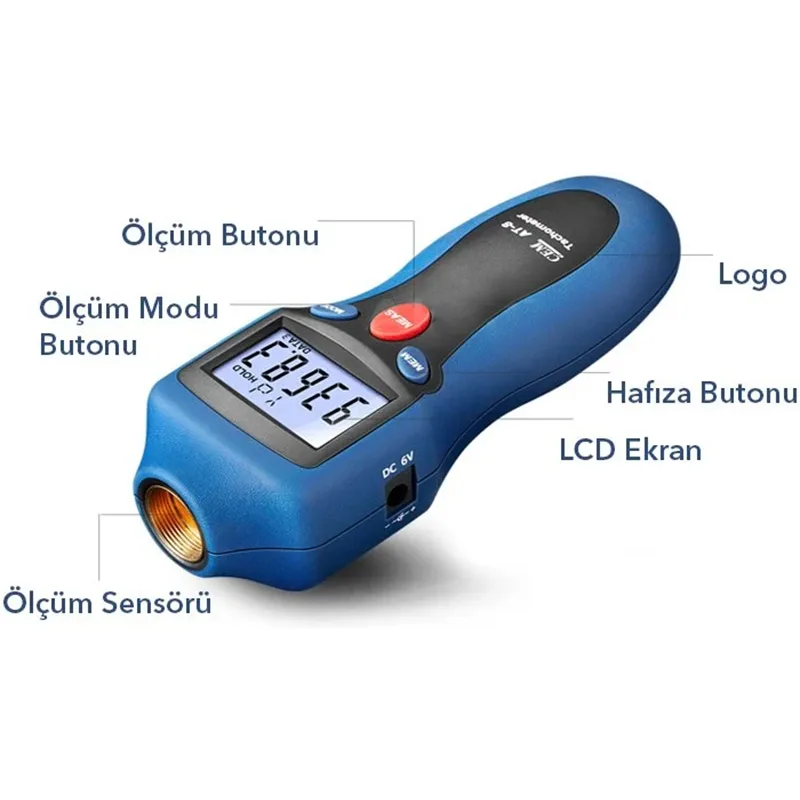

The tachometer has a backlit LCD screen. This feature will allow you to easily make measurements in dark environments.
A leather carrying case is provided with the tachometer to easily carry the apparatus and the device.
Three reflector strips for non-contact revolution measurements are also included in the box.

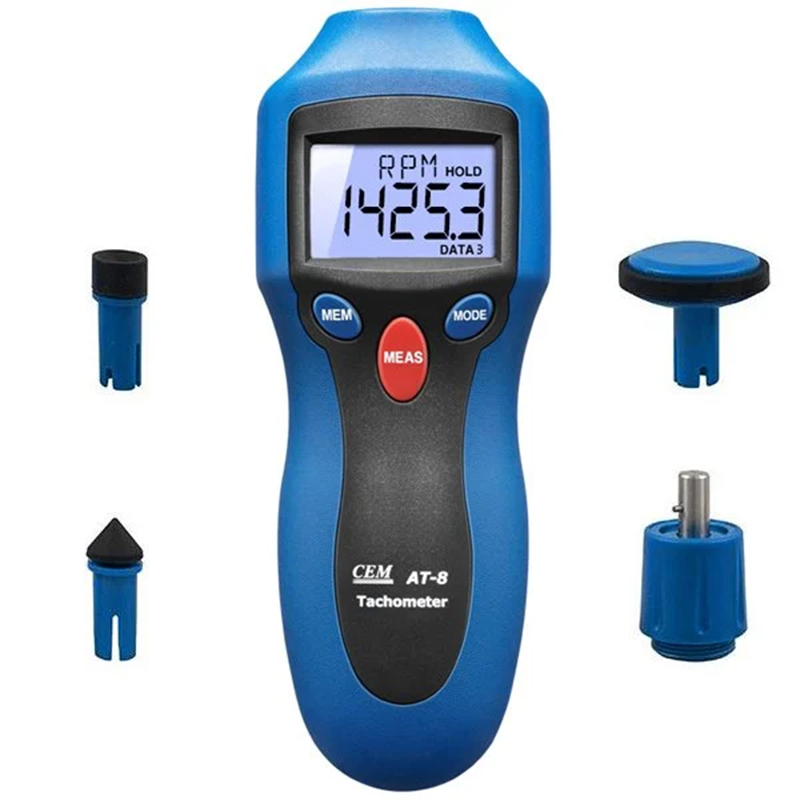

Three different shaped contact apparatuses are also included with the product for using the tachometer in contact mode.
The non-contact measurement distance of the AT 8 revolution measurement device is 50 – 500 mm.
Daylight blinds the optical reader of all tachometer devices, so the devices do not perform readings.
The measurement modes of the device are as follows: Speed (U / min), Surface speed (m / min), Number of revolutions (counter), Frequency (m, as, FT, Yd), Linear measurement (m, as, FT, Yd)
Usage of Cem AT-8 Tachometer:
For laser non-contact use: A very small piece of adhesive paper from inside is cut and pasted on the rotating object. As soon as you hold the emitted laser light on the paper by pressing the measurement button, the revolution measurement is shown on the screen. Adhesive papers should not be discarded, they can be used repeatedly.
For contact use with apparatus: Three accessory pieces come out of the device. You can make revolution measurements by touching and rotating the pieces together with the rotating objects.
Sensitivity: ± %0.05 + 1 rpm
Measurement Range:
Contact: 2 – 20,000 rpm
Non-contact: 2 – 99,999 rpm
Operating Temperature and Humidity Range: 0 ... 50 degrees / up to %80 relative humidity
Display: LCD
Dimensions: 160 x 60 x 42 mm
Weight: 160 grams
Power Source: 1 piece 9V battery
