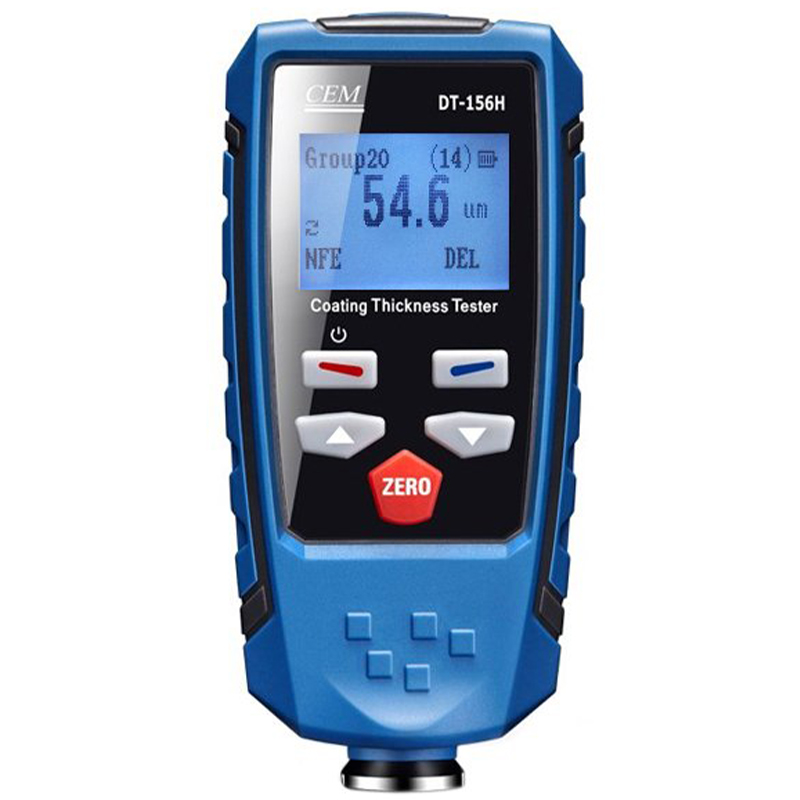

Notify me when its in stockThis precise paint thickness measuring device shows the coating thickness within a few seconds when held over the paint.
In the measurements you perform; high value differences in measurements taken from various parts of the vehicle will show you where the paint is.
In addition to measuring the paint thickness on automobiles, the DT-156H paint thickness gauge can also be used in places such as workshops and factories.
Among the surfaces that the device can measure are steel, iron and similar (ferrous) materials, as well as aluminum, brass, zinc, stainless steel and similar (non-ferrous) materials. It is suitable for precise and reliable measurement of paint, metal, and rubber coatings on these surfaces and chrome plating on copper.
Ergonomic design, precise measurement, easy to use, compact device with USB cable and software.
Thanks to the wide LCD screen of the DT 156H paint thickness gauge, you can easily read the measurements you make.
The screen illumination on the device allows you to make measurements easily in low light environments.
You can easily perform the calibration process with the accessories that come with the device.
The DT 156H coating thickness gauge can store the last 400 measurements in its memory.
Inside the box of the device comes 1 CEM DT-156H paint thickness gauge, 2 AAA 1.5V batteries, user manual, protective plastic carrying case, software CD, and calibration set.
Measurement Range: 0 ... 1250 µm
Accuracy: ±3% ±1 µm
Resolution: 0.1 µm
Measured Units: µm, mils, mm
Measurement Memory: 400 measurements
PC Connection: USB
Display: LCD
Operating Temperature: 0°C ... 40°C
Operating Humidity: %20 ... %90 RH
Power Supply: 2 pcs 1.5 V AAA batteries
Weight: 100 gr
Dimensions : 110 x 50 x 23 mm
