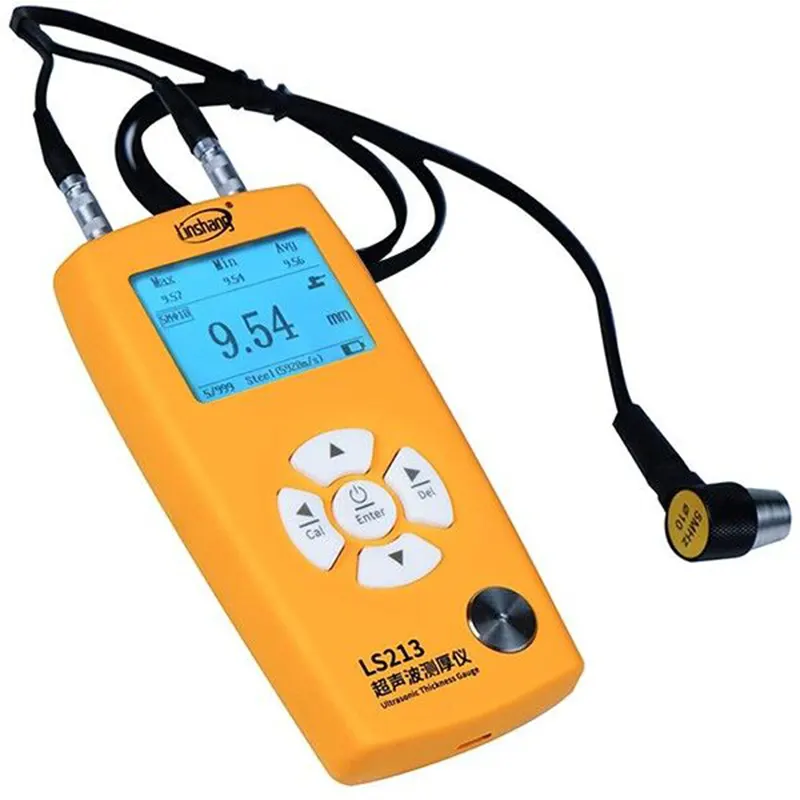

Linshang LS213 Ultrasonic Thickness Gauge

LS213 Ultrasonic Thickness Gauge

The Linshang LS213 ultrasonic thickness gauge is a professional device that measures the thickness of materials or objects in the range of 0.8 mm to 350 mm using high-frequency sound waves.
During measurement, ultrasonic waves are sent to the material surface, and the thickness is determined by calculating the return time of the signal reflected from the inner surface.

• With the app downloadable to Android phones, measurement data can be transferred to a smartphone via Bluetooth, and all data can be used for reporting.

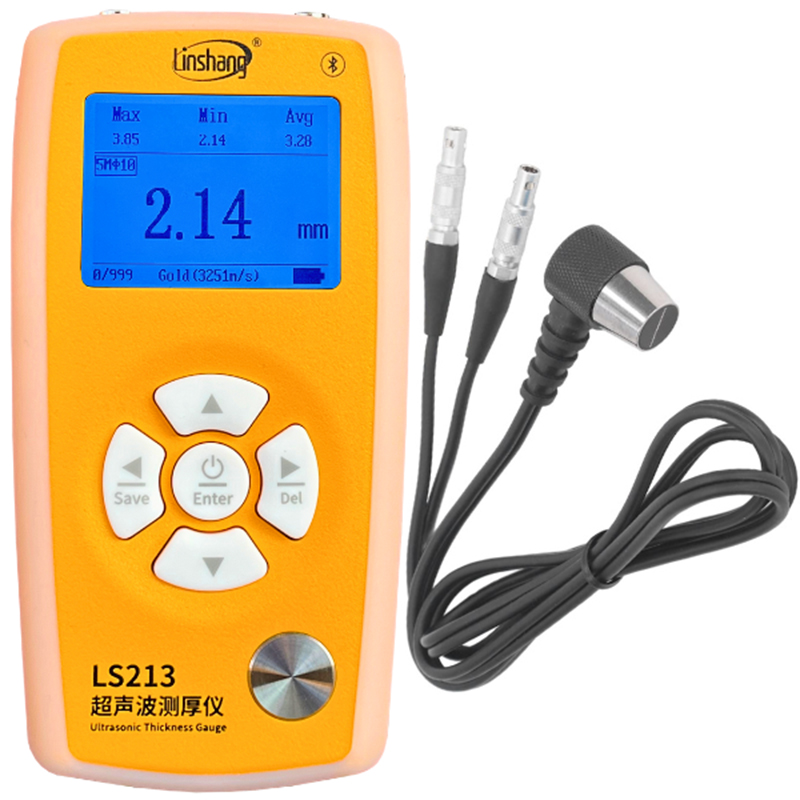

• Standard 5 MHz φ10 probe provides professional accuracy in measuring various materials such as steel, aluminum, copper, plastic, ceramic, and glass.

• Thanks to the dual crystal probe technology, high precision and reduced signal interference are achieved. The stainless steel probe body increases durability.

• Material types can be selected from the device menu (e.g., Steel, Glass, etc.).

• Materials such as steel, stainless steel, aluminum, copper, brass, glass, plexiglass, ceramic, thermoplastic, nylon, silver, gold, zinc, titanium, lead, tin, polypropylene, epoxy, PVC are recorded in its memory.

• The user can manually or according to thickness record up to 18 sound velocity values.

• With the E-E measurement mode, the actual thickness under coating or paint is measured.

• Provides high precision with a resolution of 0.01 mm.

• With QC mode, measurement results are classified as PASS or NG, and maximum, minimum, and average values are calculated with the statistics mode.

• Provides reliable use in wide sectors (oil, chemical, metallurgy, shipbuilding, aviation, etc.).

• Can store 999 measurement data in its memory.

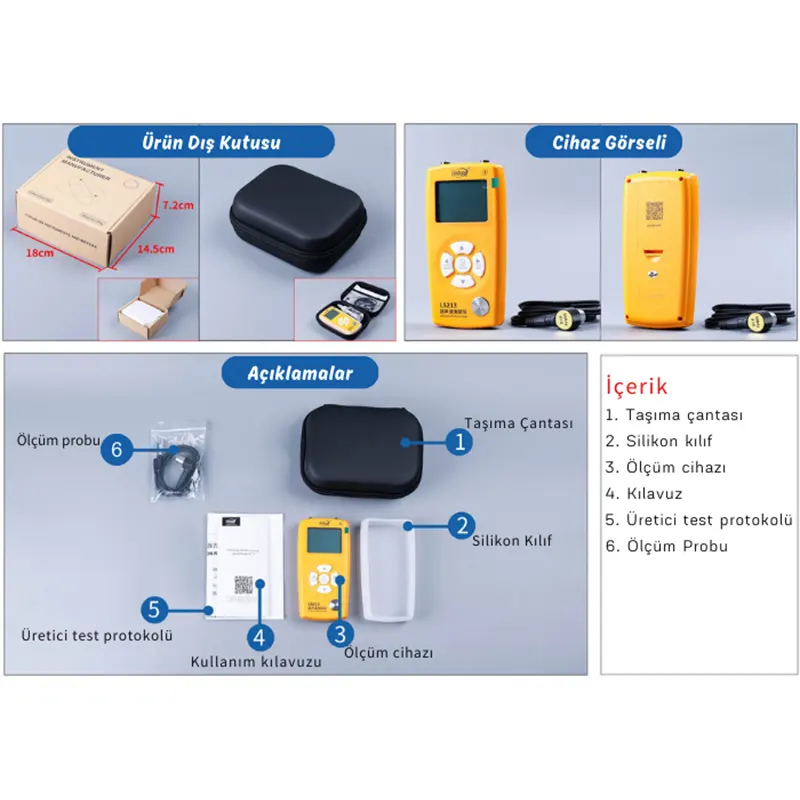

• Box contents: LS213 device, silicone case, standard test probe, gel bottle, 1-liter gel, user manual, manufacturer test report.

Technical Specifications

• Measurement Range: 0.8 ~ 350 mm

• Probe Model: 5MHZ φ10

• Probe Size: φ18 x 26 mm

• Minimum Measurement Area: φ10 mm

• Sound Velocity Range: 1000 ~ 9999 m/s

• Accuracy: H < 10 mm: ±0.05H | H ≥ 10 mm: ±0.5%H

• Display Resolution: 0.8-100 mm: 0.01 mm | 100-350 mm: 0.1 mm

• Display: 240 x 160 dot matrix LCD

• Unit: mm / inch

• Operating Frequency: 5 MHz

• On/Off Button: Yes

• Operating and Storage Temperature: -10 ~ 50 degrees, 0~85% RH non-condensing

• Weight: 230 grams

• Power Source: 2 x 1.5V AAA
