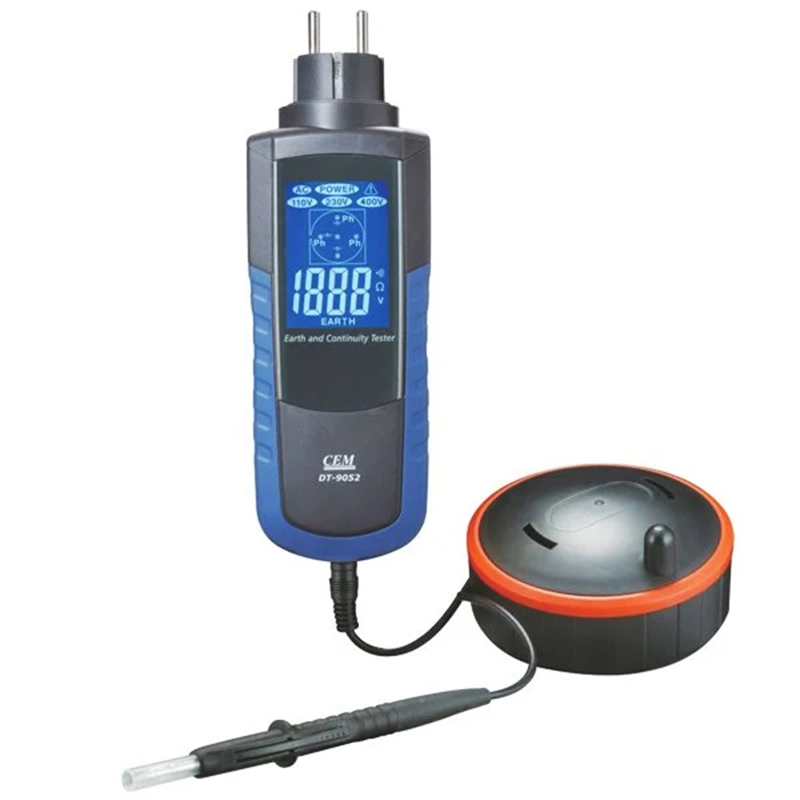

Cem DT-9052 Socket Grounding Tester

Cem DT-9052 Socket Grounding Tester

• The CEM DT-9052 socket grounding tester device provides the ability to measure leakage current in circuits.
• It can measure ground resistance both digitally and analog.
• When plugged in, from the digital screen of the CEM DT-9052 device, you can quickly determine whether the electricity comes from the right or left phase and whether there is grounding from the screen color.
• It offers the possibility to perform mobile grounding control up to 6 meters with the TL-951 cable spool that comes with it.
• It has an LCD screen that can turn into two different colors depending on the measured value.
• It has overload protection.
• It features an automatic shutdown.

How is Measurement Done?
• The CEM DT-9052 grounding tester device is plugged in.
• If the screen is blue, there is grounding and the number on the screen is loop impedance.
• If the screen is red, there is no grounding, incorrect voltage, and voltage is above 100 ohms.
• Whether the phase is on the right or left can also be tracked from the measurement device screen.
• The 6 cm probe that comes with it is used for mobile applications.

TECHNICAL SPECIFICATIONS

• Resistance Measurement Range: 0 Ω . . . 1999 Ω

• Resistance Sensitivity: ±(3% + 1dgt), for pure resistance (0 - 2000 Ω range, at 23 degrees ±5 degrees temperature)

• Screen: LCD

• LCD Dimensions: 55 x 40 mm

• Device Dimensions: 210 x 72 x 50 mm

• Device Weight: 340 grams

• Product Color: Yellow - Black

• Standard Accessories: TL-951
