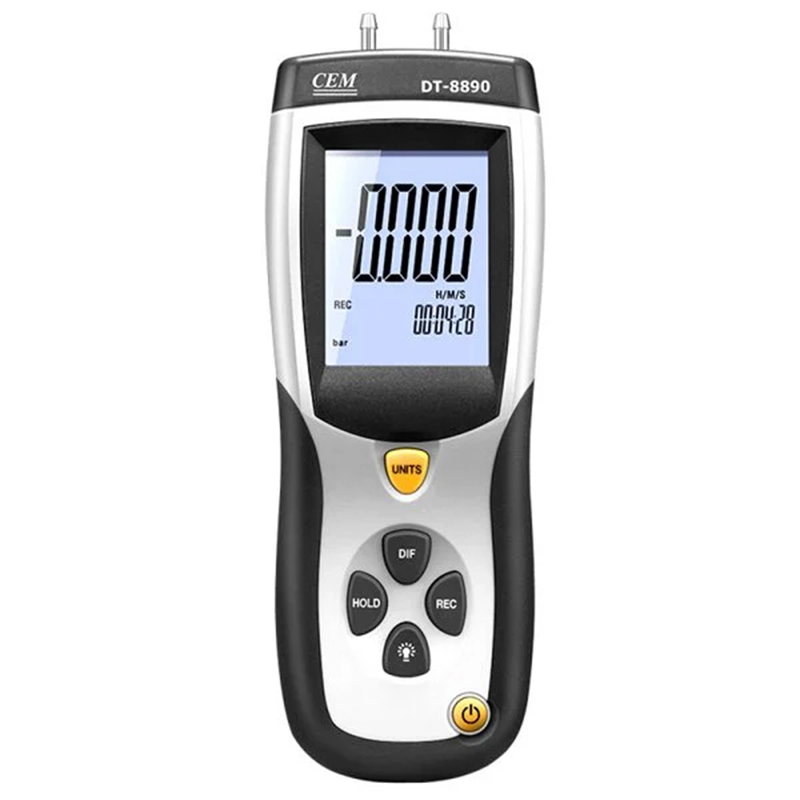

Cem DT8890 Manometer Differential Pressure Meter

Cem DT8890 Manometer Differential Pressure Meter

• A device designed for measuring differential pressure, mostly used in natural gas lines.

• 11 different measurement units can be selected.

• You can easily read the measurements thanks to its illuminated large LCD screen.

• With the HOLD feature, you can freeze measurement values on the screen.

• Thanks to the Max/Min feature, you can see the highest and lowest values in measurements.

• It provides a low battery warning, allowing you to replace it with a new one before it runs out.

• Measurement modes: inH2O, psi, bar, mbar, kPa, inHg, mmHg, ozin, ftH2O, cmH2O, kg/cm².

• The device has Zero Adjust, Offset, and DIF functions.

• Automatic zeroing feature is available.

Some Pa value equivalents in technical specifications:

• 1 hPa = 1 mbar

• 0.1 hPa = 10 Pa

• 0.01 mbar = 0.001 Pa

• 2 psi = 13789 Pa

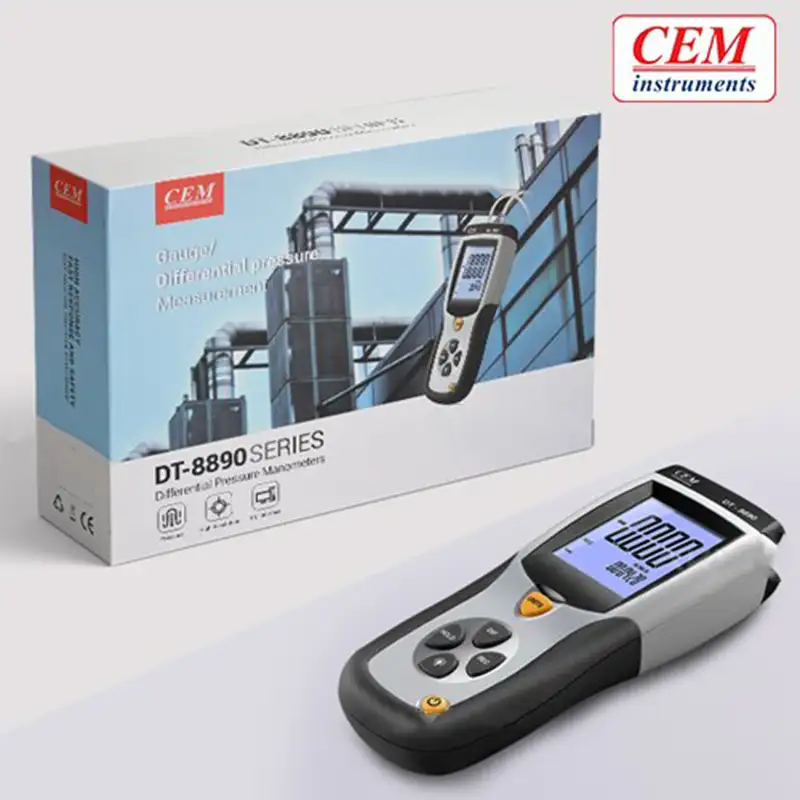

Package contents:

• Cem DT8890 manometer

• USB connection cable

• User manual

• Program installation CD

• 9V battery

• Pitot tubes

• Adapter

• Carrying case

TECHNICAL SPECIFICATIONS

• Measurement Range : 0 ... 344.7 mbar

• Dimensions : 210 x 75 x 50 mm

• Accuracy : ± 0.2 % FS

• Resolution : 0.01 mbar

• Power Source : 1 piece 9V battery

• Weight : 650 gr
