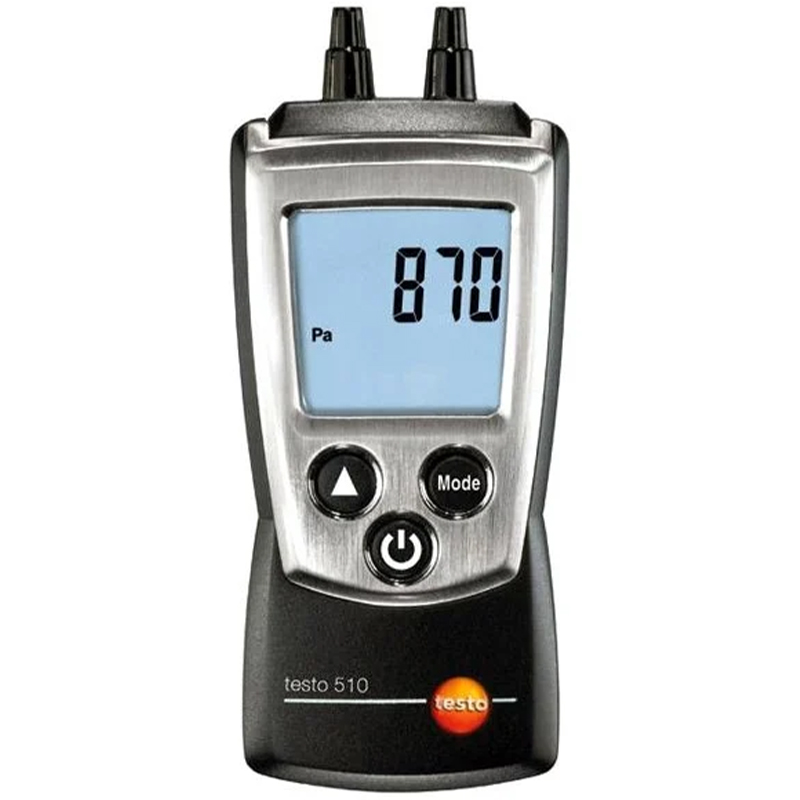

Testo 510 Manometer Differential Pressure Meter

Testo 510 Manometer Differential Pressure Meter

• The Testo 510 differential pressure measurement device is ideal for measuring differential pressures between 0 and 100 hPa (0 and 100 mbar).

• You can perform differential pressure measurements with high precision.

• Thanks to the magnets on the back of the device, you can fix it to metal surfaces.

• You can view all your measurements with the Testo 510 manometer in pascal (Pa).

• The device has temperature and air density compensation.

• There is a protective cap to prevent damage to the measurement tips.

• The manometer has a backlit LCD screen.

• The Testo 510 package includes a carrying strap and belt kit.

• The necessary silicone tubes for measurement come with the device.

Values in technical specifications converted to Pa:

• 0.1 hPa = 10 Pa

• 1 mbar = 0.1 Pa

• 1 psi = 6894 Pa

• Thanks to the magnet on the back of the device, you can fix it onto a metal object.

TECHNICAL SPECIFICATIONS

• Measurement Range : 0 … 100 hPa

• Dimensions : 119 x 46 x 25 mm

• Accuracy :

  • ±0.03 hPa (0 … 0.30 hPa)

  • ±0.05 hPa (0.31 … 1.00 hPa)

  • ±(0.1 hPa + 1.5 % of measurement value) (1.01 … 100 hPa)

• Resolution : 0.01 mbar

• Power Source : 2 AA batteries

• Weight : 90 g

• Units of Measurement : PSI, mbar, mmHg, hPa, Pa, mmH2O, inH2O, inHg, m/s, fpm

• Storage Temperature : -40 … +70 degrees

• Operating Temperature : 0 … +50 degrees
