Cem LA1012 Digital Cable Finder

Cem LA1012 Digital Cable Locator

• The Cem LA1012 cable locator is a professional device for general-purpose use. It is ideal for tracking cables in walls or underground, identifying fuses and circuit breakers, and locating faults or short circuits in cables and underfloor heating systems. It comes as a complete kit in a carrying case, including both a transmitter and a receiver.

• The LA1012 can be used for all active and passive cables without any additional tools.

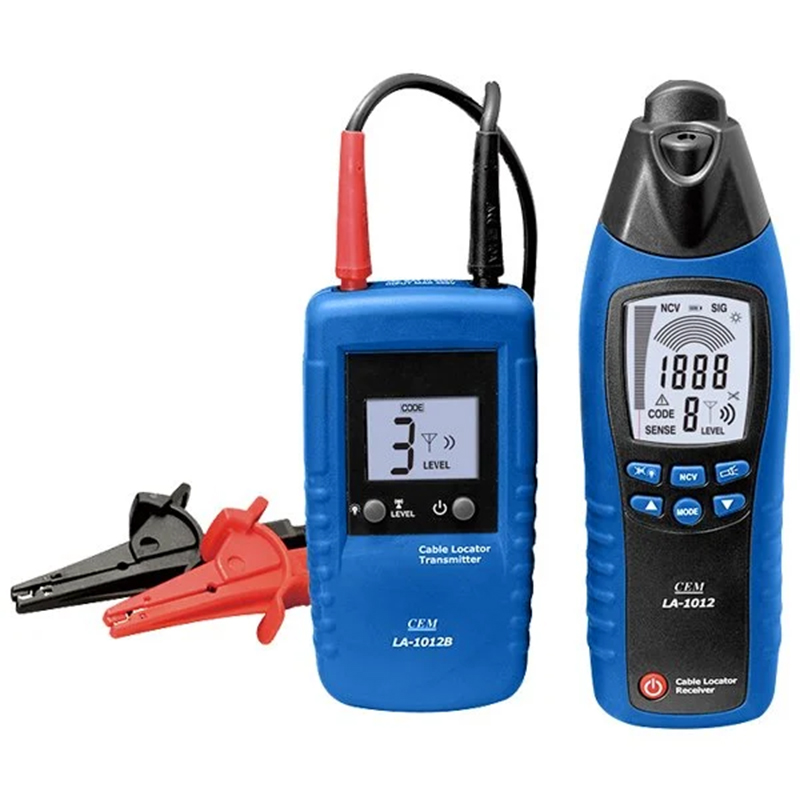

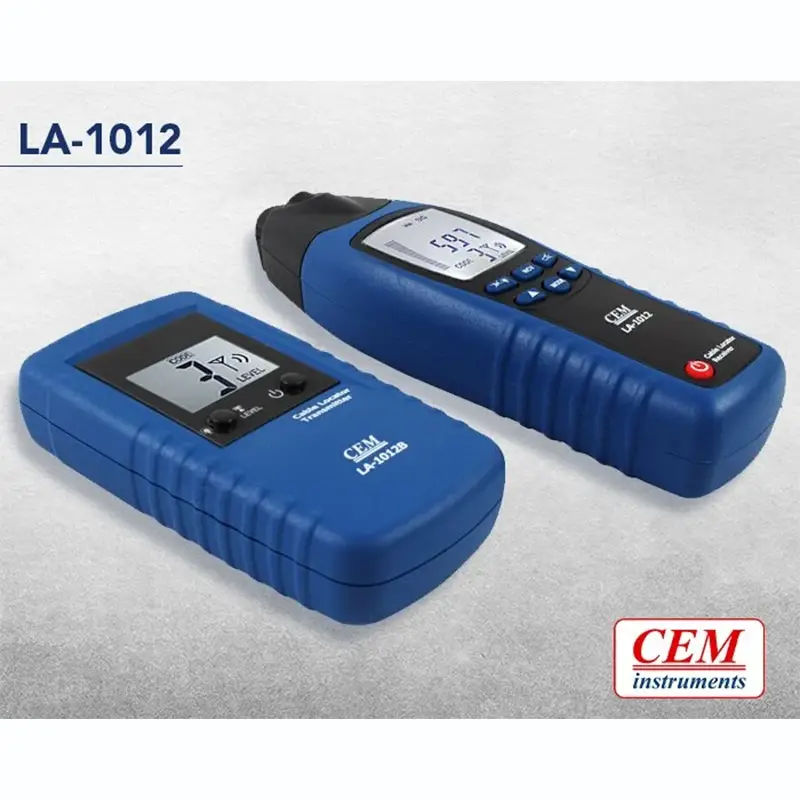

• The Cem LA1012 consists of a transmitter and a receiver unit.

• Digitally coded transmitter signals ensure clear signal detection.

• The transmitter with LCD display is used for level transmission, code transmission, and external voltage.

• The backlit LCD receiver displays the received signal level and code as well as voltage indication.

• The device allows sensitivity adjustment of the received signal either manually or automatically.

• Auto shut-off function helps save battery power.

• The flashlight feature allows use in dark environments.

• The backlit display enables easy reading in low-light conditions.

• Additional transmitters are useful for distinguishing between multiple signals.

• Includes a switchable audible signal function.

• Usage: Plug the transmitter into a socket (bottom right of the device), then move the receiver along the wall. When it detects the signal, it emits an audible alert to indicate the cable’s path.

TECHNICAL SPECIFICATIONS

• Voltage Detection Range (Transmitter): 12V, 50V, 120V, 230V, 400V

• Frequency Range (Transmitter): 0...60 Hz

• Output Signal (Transmitter): 125 kHz

• Voltage (Transmitter): Up to 400V AC/DC

• Cable Location Depth (Receiver): 0...2.5 meters (in wall/hidden cables)

• Main Voltage Detection (Receiver): 0...0.4 meters

• Operating Temperature: Transmitter: 0°C to 40°C / Receiver: 0°C to 40°C

• Storage Temperature: Transmitter: -20°C to 60°C / Receiver: -20°C to 60°C

• Operating Humidity: Transmitter: Max 80% RH / Receiver: Max 80% RH

• Operating Altitude: Up to 2000 meters (Transmitter & Receiver)

• Overvoltage Category: CAT III 300V

• Display: LCD

• Dimensions: Transmitter: 192 x 61 x 37 mm / Receiver: 130 x 69 x 32 mm

• Weight: Transmitter: 180 g / Receiver: 130 g

• Power Supply: 1 x 9V battery

• Auto Shut-Off: Yes

• Electrical Safety: EN 61010-1
