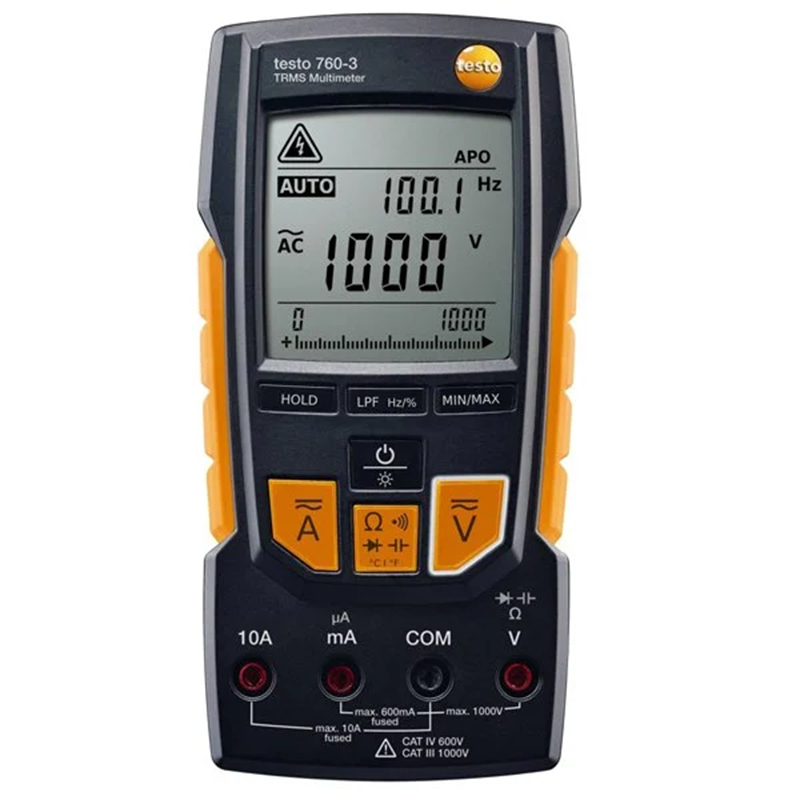

Testo 760-3 Digital Multimeter

Testo 760-3 Digital Multimeter

• The Testo 760-3 digital multimeter is a high-performance multimeter and avometer model.
• In addition to automatic measurement parameter detection, it offers wide frequency and capacitance measurement ranges, and a voltage measurement range up to 1000 V, making it suitable for industrial applications.
• With the Testo 760-3 digital multimeter, you can measure AC/DC voltage, AC/DC current, resistance, diode, frequency, and capacitance.
• The Testo 760-3 digital multimeter is a multifunctional device for all professionals in the electrical sector.
• The device’s most notable feature is its True RMS function.
• True RMS (root mean square) is a feature that allows accurate measurement of alternating current (AC) or AC voltage.
• It has a voltage range up to 1000 V, frequency range up to 60 MHz, and capacitance range up to 60 mF.
• This multimeter can also measure temperatures between -20°C and +500°C.
• The Testo 760-3 digital multimeter has an IP64 protection rating against dust and water splashes.
• K-type probes can be attached to the device using the optional 0590 0002 adapter.
• Unlike other multimeters, the Testo 760-3 automatically detects the appropriate measurement parameter via socket assignment.
• Instead of a traditional rotary switch, it features illuminated function buttons.
• You can easily control the device with one hand.
• The large, backlit display makes it easy to read measurement data in low light conditions.
• An integrated low-pass filter ensures more accurate measurement results when controlling converter frequencies.
• The support foot at the back of the device allows you to easily secure the multimeter on a desktop and view measurement results conveniently.
• The Testo 760-3 operates with 3 AAA batteries.
• The package includes: 1 Testo 760-3 digital multimeter, 3 AAA batteries, 1 set of measurement cables, 1 calibration protocol, and a user manual.
• Compared to the other two models, the Testo 760-3 offers higher measurement ranges for frequency and capacitance along with a voltage range up to 1000 V.
• This multimeter is a multifunctional device suitable for all professionals in the electrical industry.

• Display Counts: 4,000
• Display: Yes
• Display Backlight: Yes
• Hold Function: Yes
• Min/Max Function: Yes
• Diode Test: Yes
• Continuity Test: Yes
• Protection Class: IP64
• Power Supply: 3 AAA batteries
• Storage Temperature: -15°C to +60°C
• Operating Temperature: -10°C to +50°C
• Operating Humidity: 0–80% RH
• Certification: CSA; CO sensor
• Standards: EN 61326-1, EN 61010-2-033, EN 61140
• Weight: 340 g
• Dimensions: 167 x 85 x 45 mm
