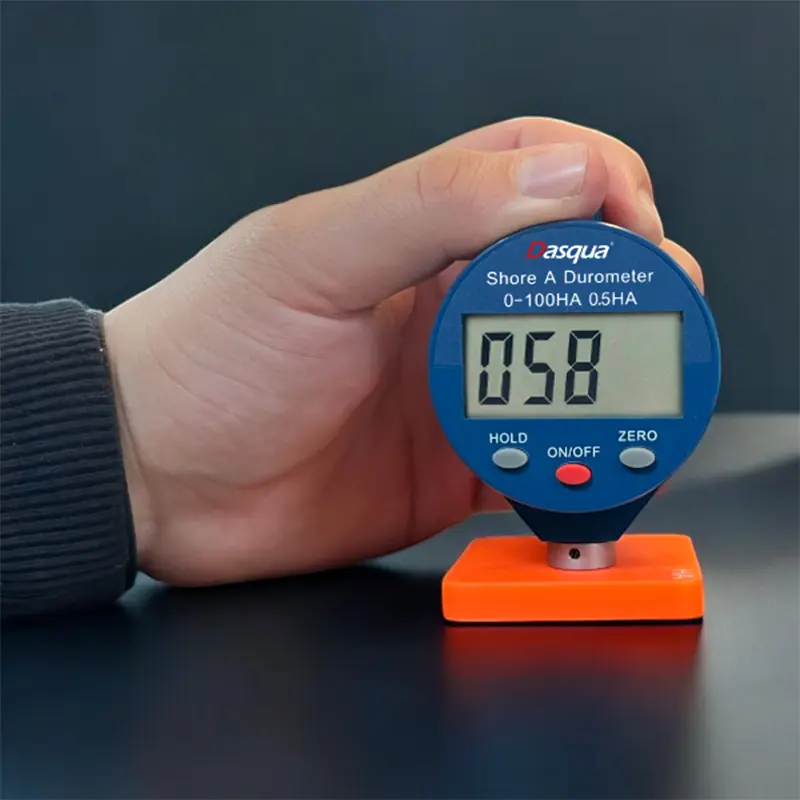

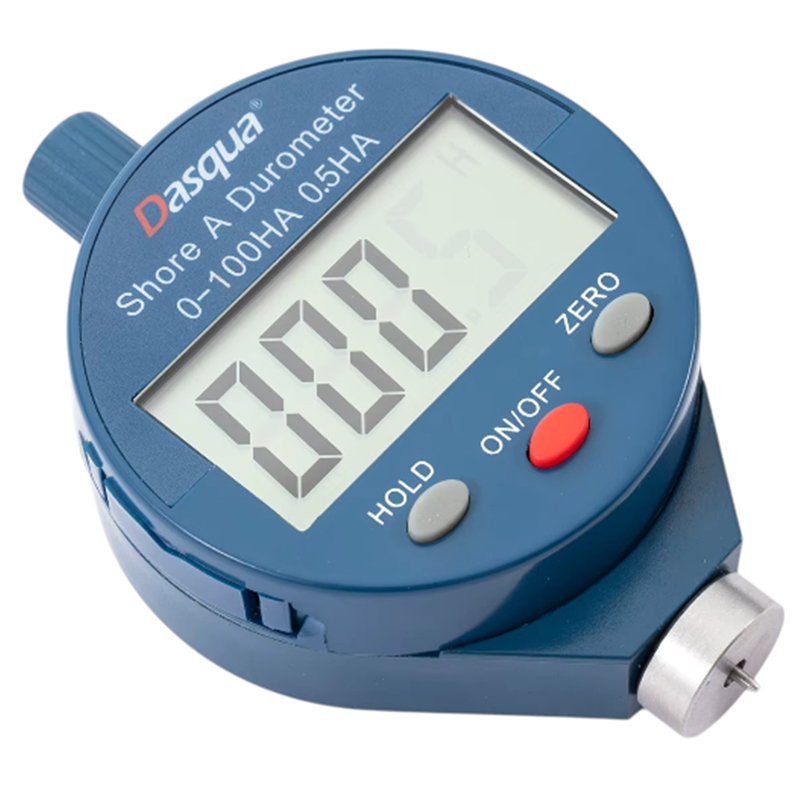

Notify me when its in stockUsed to measure the hardness of soft rubber, silicone, polyurethane, and other rubber-like materials in the range of 0 - 100 HA.
Preferred in many industries such as automotive, plastic and rubber production, footwear, textile, and packaging industries to maintain product hardness within standards.
The hardness measurement principle is based on the penetration depth of a needle (pressing pin) applied with a specific force to the surface of the material.
Thanks to its digital structure; it provides advantages such as easy readability of measurement results compared to manual (analog) durometers, data hold feature, and high precision.
Provides easy portability with its ergonomic design and compact dimensions. It has a practical and user-friendly interface with three buttons on it.
Buttons on the device:
ON/OFF: Turn the device on/off,
HOLD: Hold the measurement value,
ZERO: Reset the measurement value.
The LCD screen, with a character height of 13 mm and a screen width of 40x20 mm, makes measurement results easily readable.
Contents of the box: Dasqua 1804-1035 hardness measuring device, 2 CR2032 batteries, blue storage box, and user manual.
Technical Specifications
Measurement Range : 0 - 100 HA
Resolution : 0.5 HA
Probe Head Size : 0.79 mm
Needle Length : 2.5 mm
Power Button : Available
Hold Feature : Available
Reset Button : Available
Operating Temperature : 0 degree . . . +40 degree
Storage Temperature : -20 degree . . . +70 degree
Product Dimensions : 85 x 60 x 21 mm
Power Source : 1 CR2032 battery
