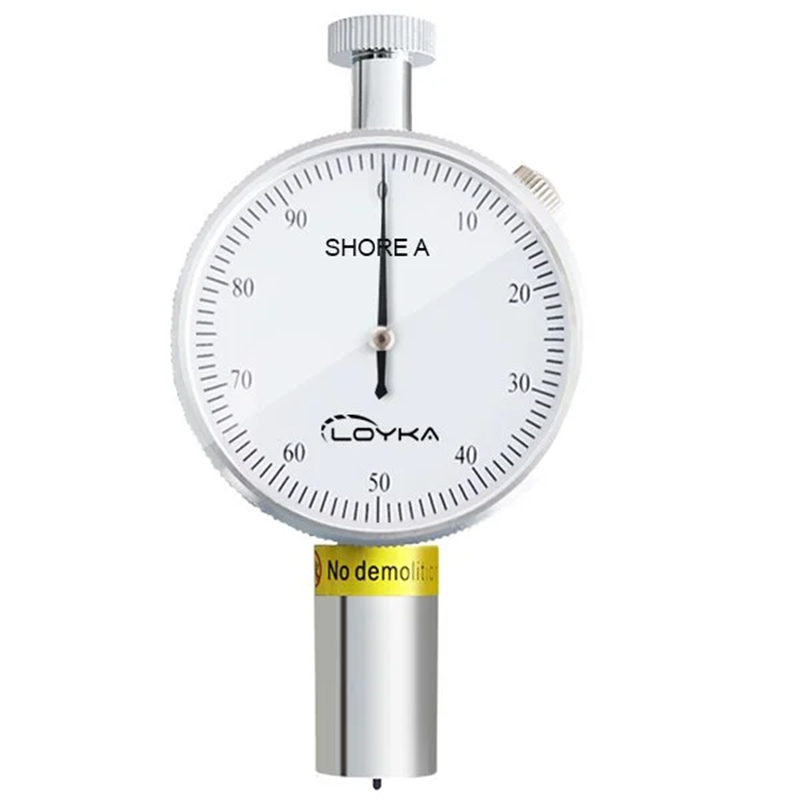

Notify me when its in stockThe LX-A analog shoremetre measures hardness with numbers from 0 to 90 and a measurement needle on a white dial.
With this hardness measurement device, you can measure the hardness of products like rubber, elastomers, printer rollers, flexible polyacrylics, silicone, PVC, vinyl, etc.
The Loyka Shore A analog hardness tester device has a measurement range of 0-100 HA.
It has easy usability and a durable structure. All you need to do is press the device steadily and vertically onto the material to be measured and read the value from the dial.
The LX-A hardness measurement device has a metal and durable exterior.

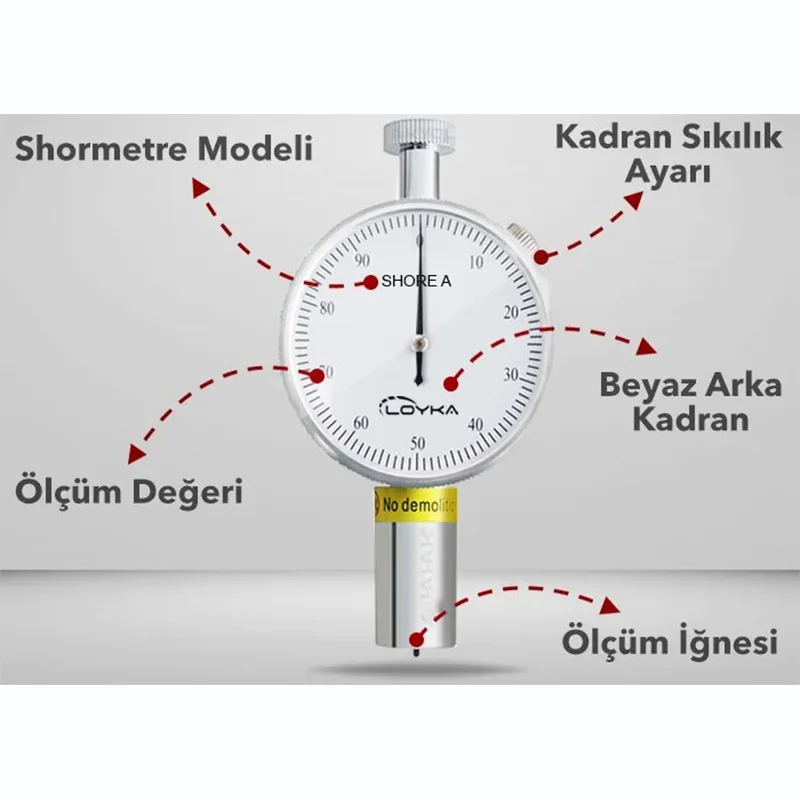

The dial tightness adjustment next to the Shore A shoremetre allows for fixing the dial.
The piece at the top of the shoremetre is removed and connected to the stand from this section.
You can also make measurements by connecting to a stand that you purchase optionally. You can see the direction link in the image below.
The dial tightness adjustment next to the Shore A shoremetre allows for fixing the dial.
The shoremetre is sent to you securely in a plastic box.
HOW TO MEASURE HARDNESS WITH A SHOREMETRE?
The measurement method is the same for all shoremetre devices. By pressing the device vertically onto the material to be measured and applying a certain force, information is obtained about the material's hardness.
Depending on the structure of the material, in other words, its hardness level, it should be decided whether to measure with a Shore A device or with Shore D, Shore C devices.
The thickness of the material to be hardness tested should be at least 6.4 mm(0.25 inch).
Technical Specifications
Measurement Range : 0 - 100 HA
Test Range : 10 - 90 HA
Reading : 1 shore A
Diameter of Measurement Pin : 1.25 mm
Diameter of the Tip of Measurement Pin : 0.79 mm
Product Dimensions : 115 x 60 x 14 mm
Weight : 153 gr
