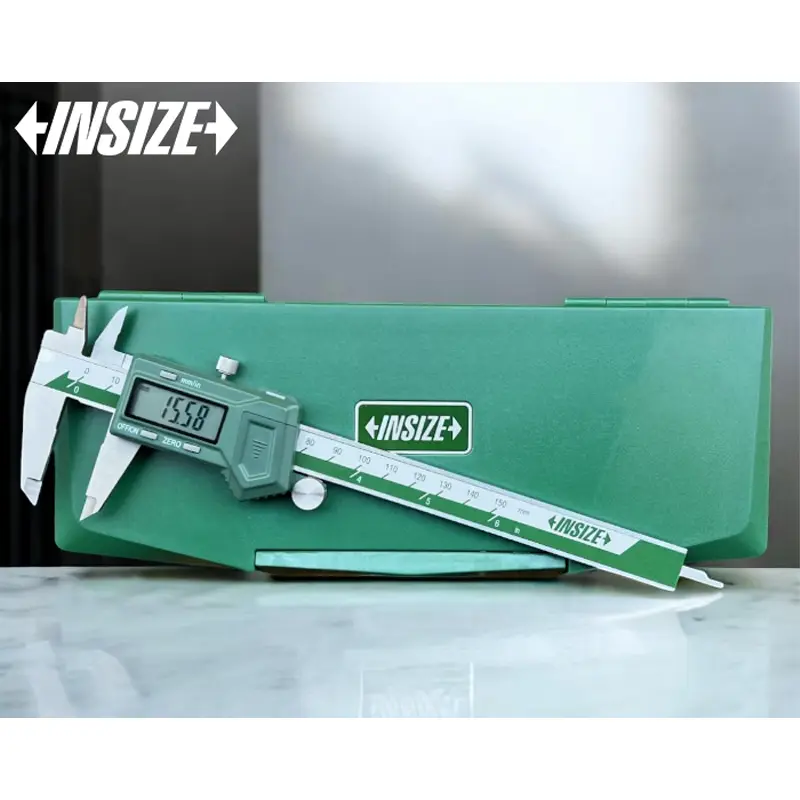

İnsize 1113-150 Digital Caliper with Data Output, 0-150 mm

İnsize 1113-150 Digital Caliper with Data Output | 0-150 mm

• İnsize 1113-150 mm digital caliper, capable of measuring with high precision in the range of 0 to 150 mm (or 0 to 6 inches), is a measuring device with data output capability.

• 0.01 mm precision ensures reliable and accurate results in applications requiring small tolerance ranges.

• Suitable for internal diameter, external diameter, and depth measurements, this versatile caliper is widely used in various sectors from engineering to automotive, mold making to R&D.

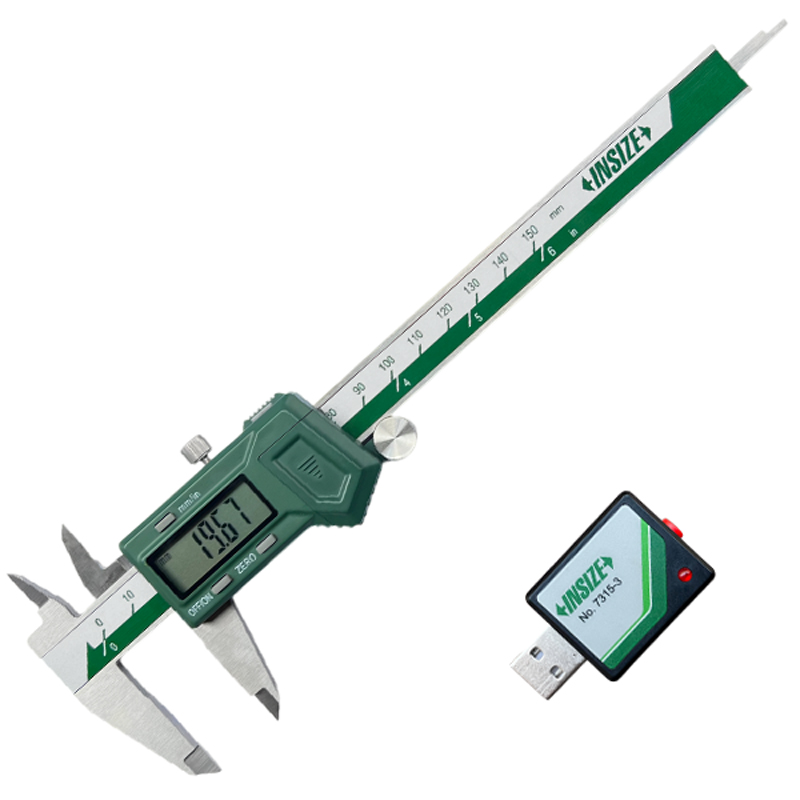

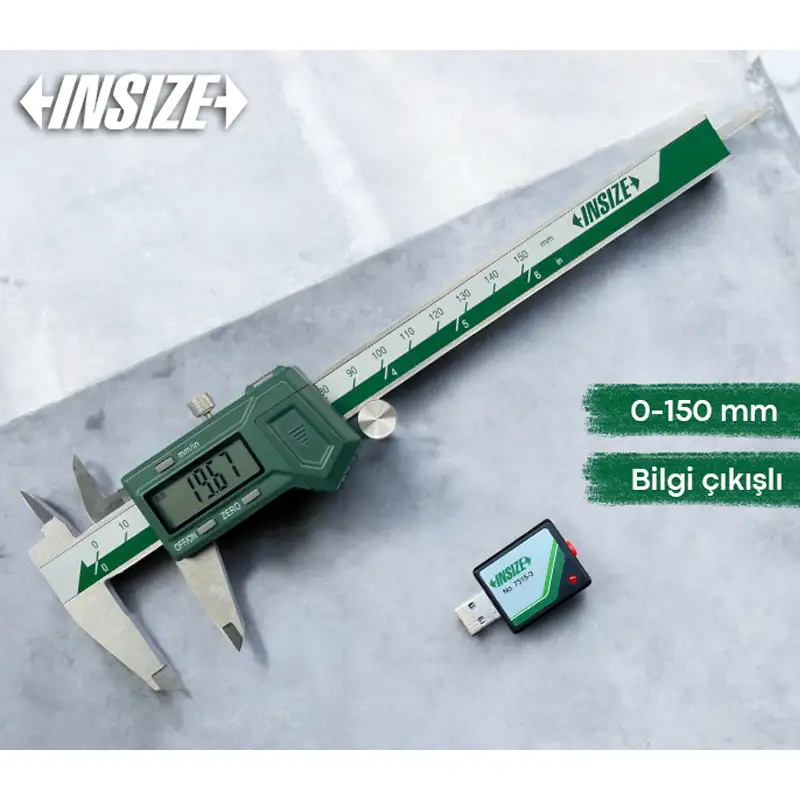

• One of its most notable features is its ability to transfer data to a computer via the included Insize 7315-3 model data transfer device. Measurement results can be easily transferred to applications like Excel and text documents.

• Stainless steel body provides durability to the product and resistance to industrial conditions.

• The locking screw allows the measurement jaws to be fixed, ensuring safe use in precise measurements.

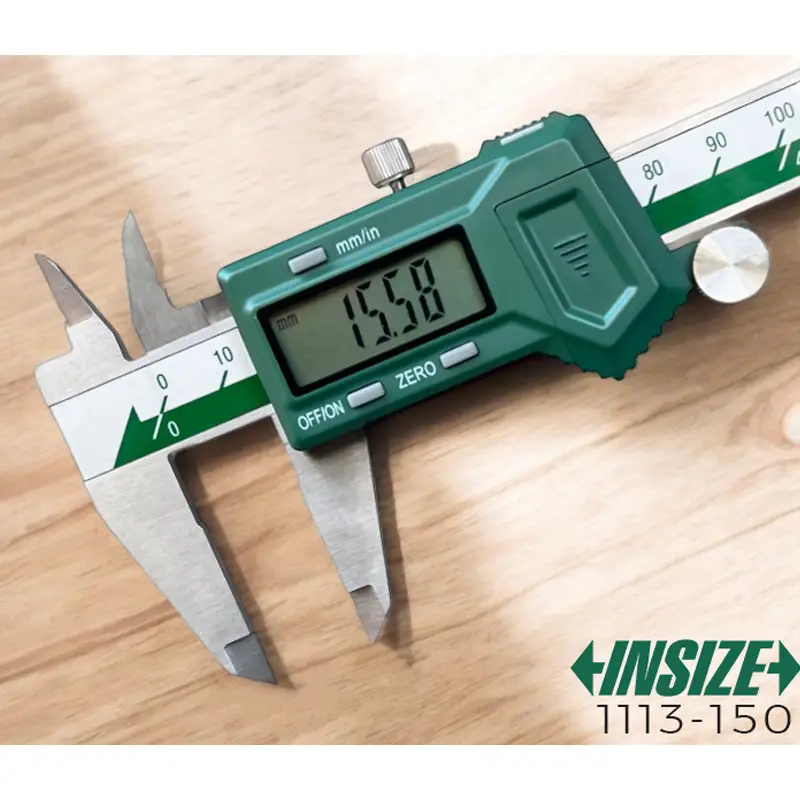

• Digital LCD screen ensures easy reading of the measurements.

• Automatic shut-off feature ensures the device turns off after 20 minutes of inactivity, saving energy.

• Equipped with user-friendly buttons;

  • "mm/in" button allows switching between metric and inch units,

  • "Zero" button resets the screen value,

  • "ON/OFF" button turns the device on and off.

• The measurement process starts automatically as soon as the caliper slider is moved.

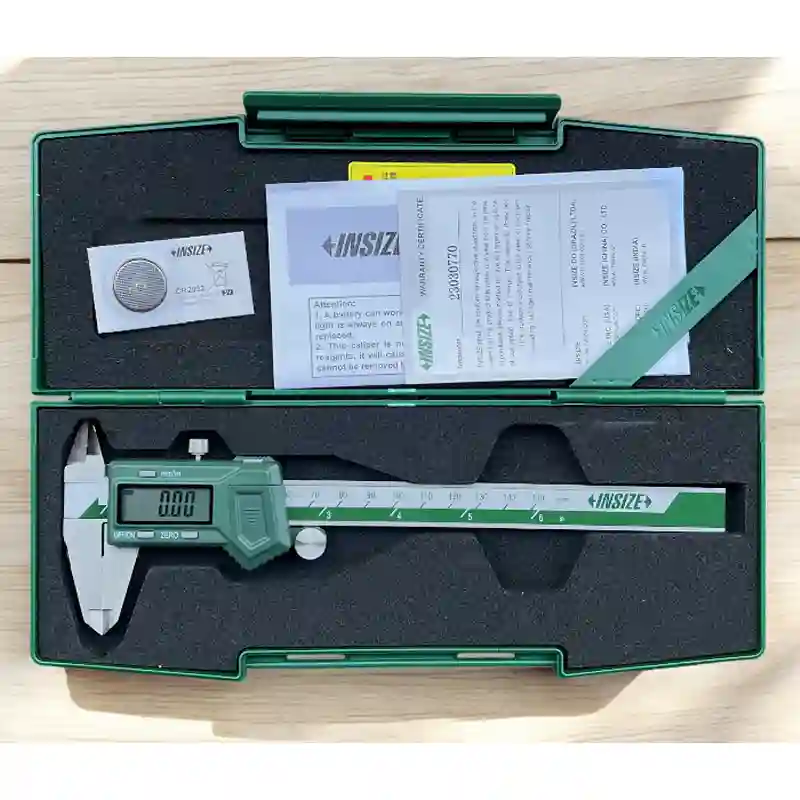

• The product is offered with a protective carrying case, data transfer device, and other auxiliary equipment.

• Detailed explanation of data transfer operations is provided in the documents accompanying the product and in the section below.

Information on Excel Transfer

• Insize 7315-3 model data transfer device is activated by pressing the red button on its back when plugged into a computer.

• The device is automatically recognized when the caliper is turned on.

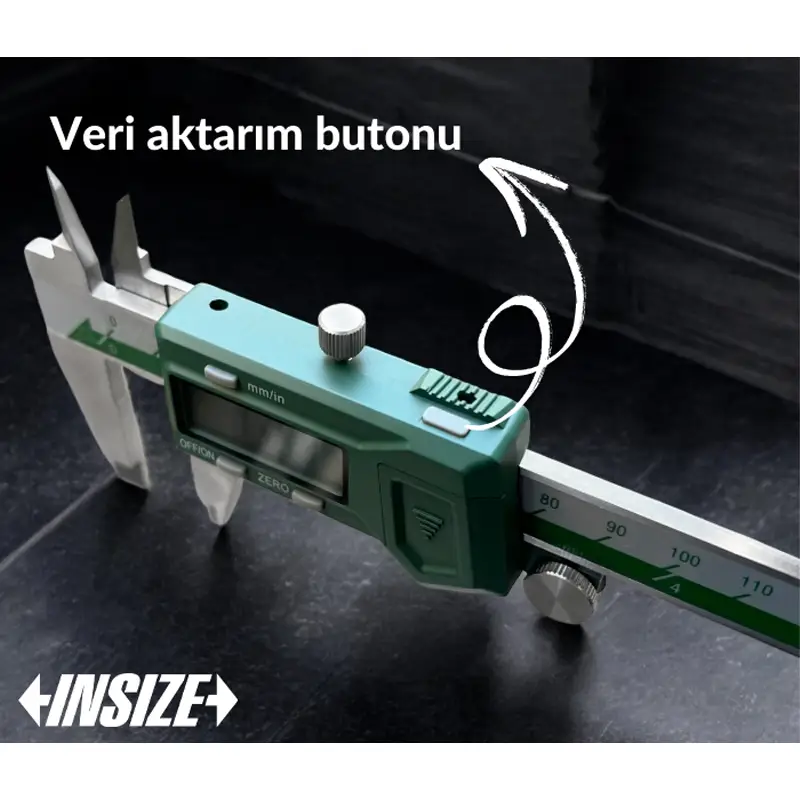

• Measurement data is sent to Excel or text documents each time the data transfer button is pressed.

• If the measurement result is, for example, “8.12” mm, it may appear as “8.Ara” in Excel. To prevent this:

  1. Select the relevant column in Excel.

  2. Right-click and enter the “Format Cells” option.

  3. Select “Text” from the categories and click “OK”.

• Note: Data transfer can also be performed in text documents, but in these operations, the computer language setting must be English.

Technical Specifications

• Measurement Range: 0 - 150 mm / 0 - 6 inches

• Precision: 0.01 mm / 0.0005 inches

• Resolution: 0.01 mm / 0.0005 inches

• Lower Jaw Length: 40 mm

• Upper Jaw Length: 21 mm

• Screen: LCD

• Digit Height: 0.90 mm

• Outer Structure: Stainless steel

• Inch and mm Measuring: Yes

• Zeroing (Zero): Yes

• On/Off Button: Yes

• Power Source: 1 x CR2032 battery
