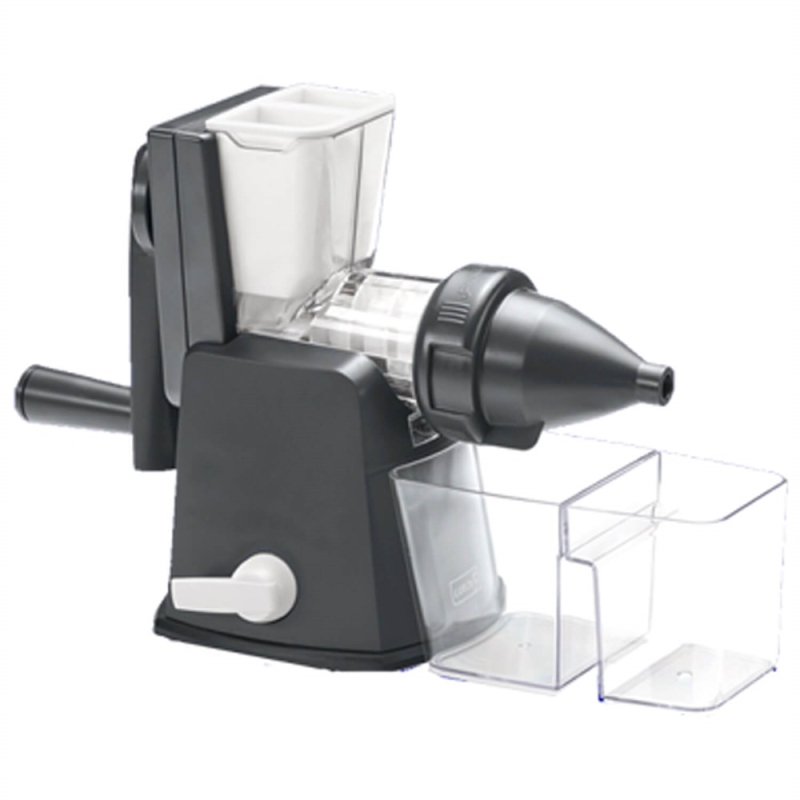

Lurch Cold Press Fruit and Vegetable Juicer
How to Use?
- Place the body on a flat and clean surface. Push the locking lever forward until it stops to secure it tightly. If a more stable placement is needed or the surface is uneven, you can use the table clamp to fix the device to your countertop.
- Insert the juicing chamber into the body’s channel until you hear a clicking sound, indicating it’s in place.
- Slide the gear grinder through the juicing chamber and fit it into the hole in the body.
- Turn the filter cap onto the end of the juicing chamber until it’s securely in place.
- Attach the handle to the body.

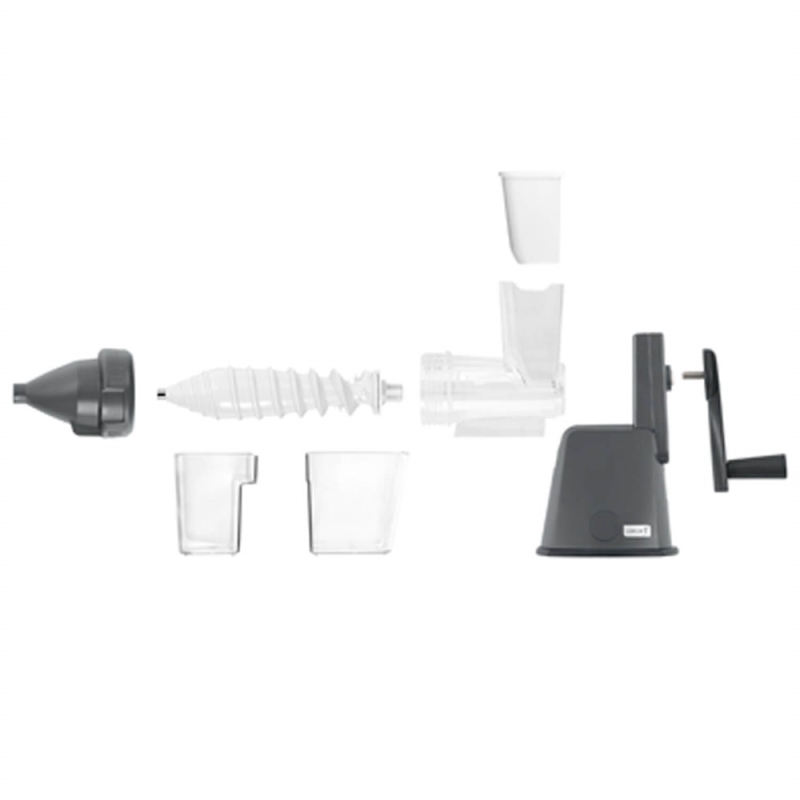

- Place the juice container and pulp container directly under the filter cap as shown in the diagram.
- If you are juicing hard or large fruits or vegetables, fill only one chamber. First, slice everything into thin pieces and insert them into the chamber with the thinner sides first. To avoid clogging, insert slices one at a time; after the first slice enters the gear grinder ring, continue loading the rest.
- Turn the handle slowly and steadily in a clockwise direction. The juice will flow directly into the juice container through the filter. The pulp will be pushed into the pulp container from the pulp outlet at the front of the device.
- Press the locking button to remove the juicing chamber. The device can now be disassembled for easy cleaning. Wipe the body with a damp, soft cloth. All remaining parts are dishwasher safe (top rack only).
Important Notes
If juicing hard and large fruits or vegetables, fill only one chamber. Slice them thinly first and insert with the thinner sides down. Insert slices one by one to avoid clogging; once the first slice engages the gear grinder ring, continue loading the rest.
For soft fruits or vegetables such as grapes, raspberries, or blackberries, you may fill and use both chambers. To avoid clogging, do not fill more than 3/4 of the chamber.
While juicing, fill the chamber slowly. Overfilling or forcing the produce in may damage the device or cause clogs, especially with hard fruits/vegetables.
The gear grinder is designed to pull food into the chamber as you turn the handle. NEVER use your hand to push food into the chamber. Always use the included pusher tool.
If you feel resistance while turning the handle or if juice stops flowing despite food being in the chamber, try turning the handle counterclockwise slightly. Then resume turning clockwise to clear any blockage.
Never apply excessive force.
- Juicing Technology: Single Gear Horizontal Grinder
- Gear Material: BPA-Free Plastic
- Table Mounting: Table Clamp
- Dimensions: 12 cm (W) x 23 cm (H) x 33 cm (D)
- Weight: 1.3 kg
- Box Dimensions: 37 cm (W) x 24.5 cm (H) x 16 cm (D)
- Box Weight: 2.1 kg
