MG1000 Isolation Test Device, 1000V

MG1000 Isolation Test Device 4000MΩ | 1000V

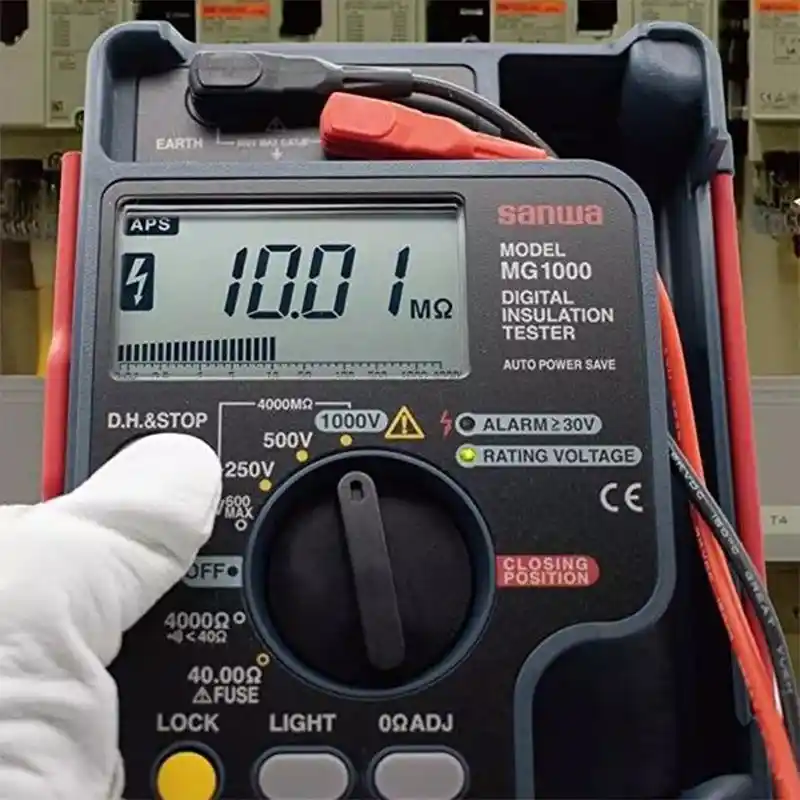

MG1000 isolation test device; is a digital DC insulation resistance test device used to measure the insulation resistance of electrical lines and power equipment up to 600 V within the scope of CAT III standard.
Thanks to its ability to measure at different test voltages, robust structure, and safety features, it can be used safely in industrial environments.

MG1000 Isolation Test Device General Features

• Test Voltage Options: Measurement can be done at 3 different test voltages with 250 V, 500 V, and 1000 V options.

• Insulation Resistance Measurement Range: 4 MΩ, 40 MΩ, 400 MΩ, and 4000 MΩ

• Voltage Measurement: Voltage measurement can be done with automatic detection up to AC/DC 600 V.

• AC Frequency Band: Operates in the range of 45 Hz - 400 Hz.

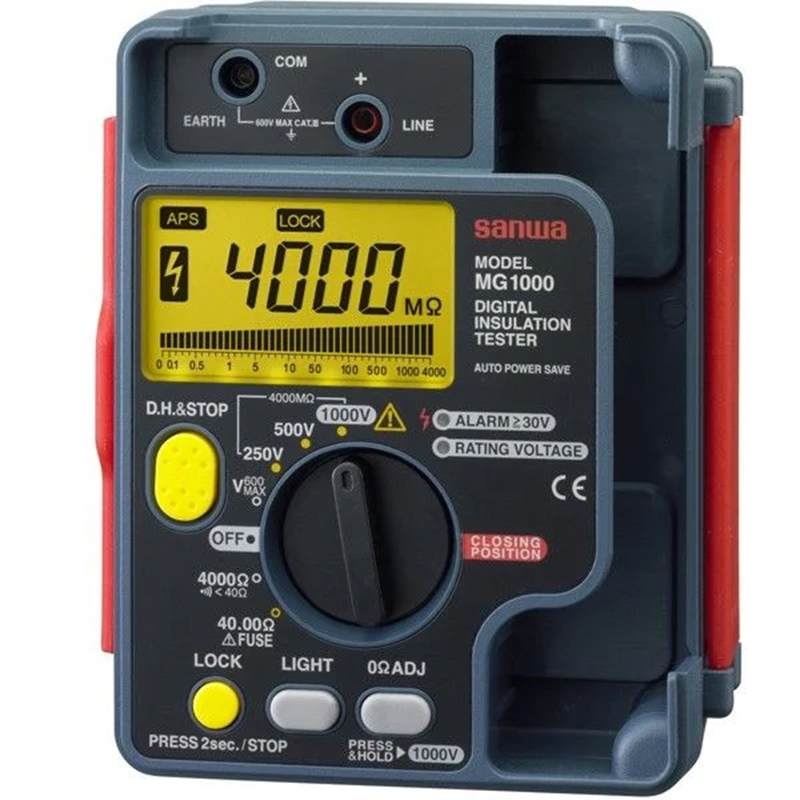

• Display Feature: Provides clear viewing with a large LCD display of 4200 counts, bar graph, and backlight function.

• Input Voltage Warning: If the input voltage is 30 V or above, the LED indicator lights up. When it exceeds 600 V, an audible warning is activated. Maximum displayable voltage: 780 V

• Protection Class: IP54 (provides protection against dust and water splashes).

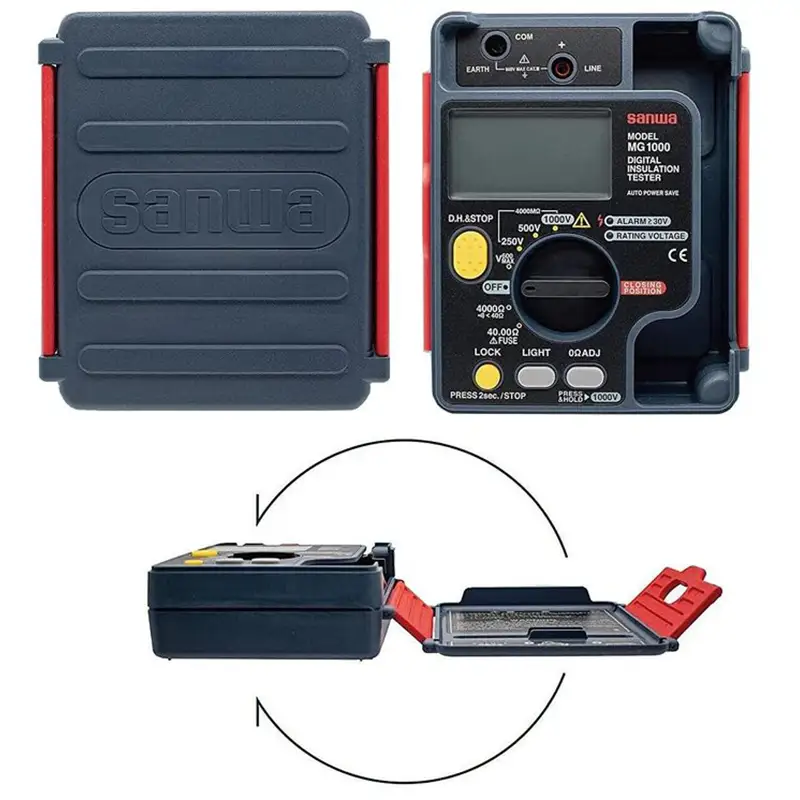

• Body Structure: Suitable for field use with built-in carrying case and lockable protection cover.

• MΩ Measurement Range : 4 MΩ / 40 MΩ / 400 MΩ / 4000 MΩ

• MΩ Sensitivity : ± (%3 + 4)

• MΩ Resolution : 0.001 MΩ

• Voltage : 250 V / 500 V / 1000 V

• ACV/DCV Measurement Range : 600 V (AC/DC automatic detection)

• ACV/DCV Sensitivity : ± (%3 + 2)

• ACV/DCV Resolution : 1 V

• Ω (Continuity) Measurement Range : 4000 Ω (Buzzer and alarm indicator)

• Ω (Continuity) Sensitivity : ± (%3 + 3)

• Ω (Continuity) Resolution : 1 Ω

• Ω Measurement Range : 40 Ω

• Ω Sensitivity : ± (%3 + 10)

• Ω Resolution : 0.01 Ω

• Measurement Method : Average detection

• Rated Current : 1.0 – 1.2 mA

• Response Time : Twice per second

• Battery : LR6 x 6

• Dimensions and Weight : 170 × 142 × 57 mm / 600 grams

• Box Contents : Test lead (TL-112a), Strap (ST-50), User manual

• Safety Standard : IEC61010 CAT III 600 V
