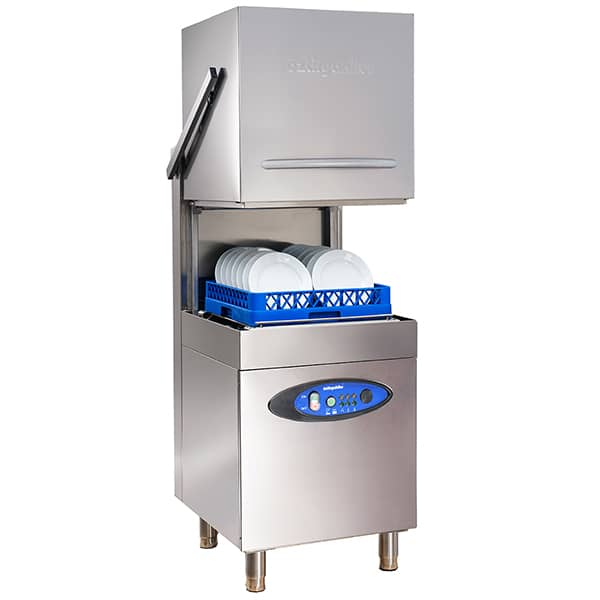

Öztiryakiler Door-Type Dishwasher, Obo 1000 Eko

Öztiryakiler Door-Type Dishwasher OBO 1000 EKO Features

• Structure without detergent, rinse aid, drain pump

• Hygienic monoblock washing tank

• Stops washing when the door is opened, works automatically when closed

• 1 program option: 72 seconds

• Self-heating water system

• Full insulation against moisture and water

• Adjustable feet

• Easy-to-clean polypropylene wash and rinse arms

• Basket size: 500 x 500 mm

Technical Specifications

• Model: OBO 1000/EKO

• Product Code: 0710.EKO10.00

• Type: Electric

• Voltage: 400V – 3 NPE

• Electric Power: 8.26 kW

• Frequency: 50 Hz

• Capacity: 750 plates/hour

• Protection Class: IPX5

• Tank Volume: 37 L

• Boiler Volume: 7 L

• Tank Heater Power: 3 kW

• Boiler Heater Power: 7.5 kW

• Wash Pump Power: 0.66 kW

• Wash Pump Flow Rate: 356 L/min

• Wash Water Temperature: 55–60 °C

• Rinse Water Temperature: 80–85 °C

• Cold/Hot Water Inlet Diameter: 3/4"

• Cold Water Pressure: 2–4 bar

• Water Hardness: 0–10 French hardness

• Drain Inlet Diameter: Ø50 mm

• Noise Level: Max. 85 dBA

Dimensions and Weight

• Width x Depth x Height: 670 x 785 x 1420 mm

• Net Weight: 105 kg

• Gross Weight: 115 kg

• Volume: 0.76 m³

• Package Dimensions: 700 x 750 x 1550 mm

• Package Volume: 0.81 m³

Standard Accessories (4 pieces)

• 1 plate basket

• 1 flat glass basket

• 1 flat cutlery basket

• 1 water inlet hose

Optional Accessories

• Detergent pump

• Rinse aid pump (2 pieces)
