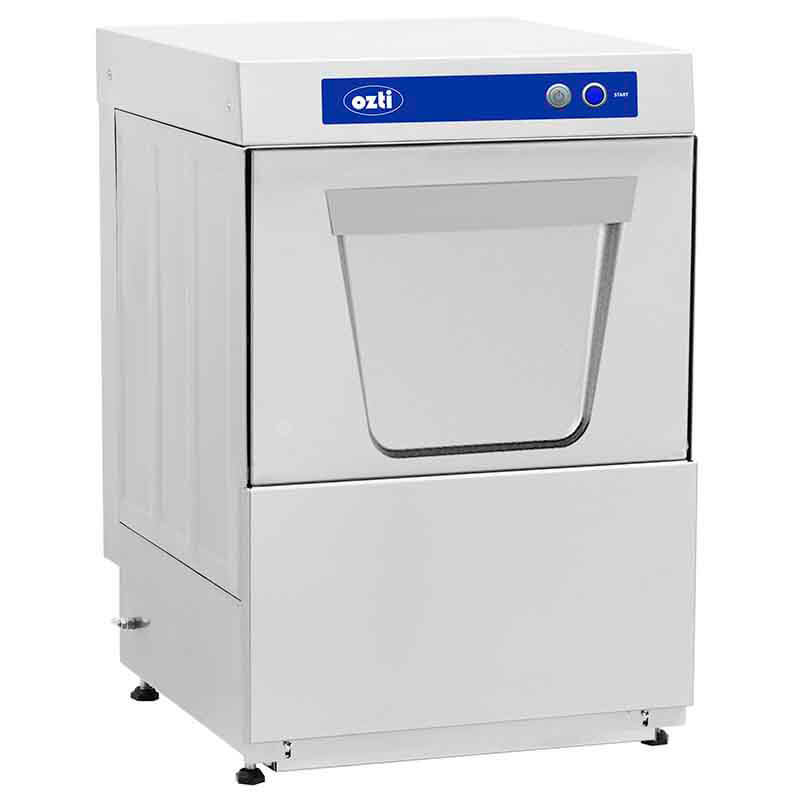

Öztiryakiler OBY 500 35M P Glass Washing Machine with Rinse Aid Pump

Öztiryakiler OBY 500 35M P Glass Washing Machine (with Rinse Aid Pump)

Usage Areas:
Used in businesses where there is a high demand for glass washing such as bars, cafes, coffee houses, tea gardens, and tea kiosks. Suitable for both countertop and under-counter use.

General Features

• Stainless steel body, boiler, and washing tank

• Hygienic washing tank

• 30 racks (500 glasses) washing capacity per hour
  (Rack size: 35 x 35 cm)

• Water consumption per wash: 2.5 liters

• Automatic and user-friendly control panel

• 120 seconds washing duration

• Energy, detergent, and water saving

• Reinforced polypropylene (PP) washing arms

• Height optimization with adjustable legs

• Single button boiler and tank filling and heating

• Electrical components and wiring systems conform to international standards

• IPX5 water resistance protection

• Thermostat-controlled washing and rinsing temperatures

• Backflow prevention valve system

• Washing water temperature: 55–60 °C
  (Supply water should be min. 2 bar, 50 °C)

• Rinse water temperature: 80–85 °C
  (Supply water should be min. 2 bar, 50 °C)

Technical Specifications

• Product Code: 073M.10000.AD

• Type: Electric

• Dimensions (Width x Depth x Height): 420 x 450 x 630 mm

• Net Weight: 30 kg (±5)

• Gross Weight: 35 kg (±5)

• Volume: 0.12 m³

• Capacity: 500 glasses/hour

• Electric Power: 3.3 kW

• Voltage: 230V - NPE

• Frequency: 50 Hz

Water Connection Information

• Hot Water Inlet Diameter: 3/4"

• Hot Water Pressure: 2–4 bar

• Hot Water Hardness: 0–10 French Hardness

• Cold Water Inlet Diameter: 3/4"

• Cold Water Pressure: 2–4 bar

• Cold Water Hardness: 0–10 French Hardness

• Drainage Inlet Diameter: 28 mm

Tank and Heater Information

• Tank Volume: 9.2 liters

• Boiler Volume: 2.8 liters

• Boiler Heater Power: 3 kW

• Tank Heater Power: 2 kW

• Washing Pump Power: 0.27 kW

• Rinse Pump Power: None

• Drying Fan: None

• Maximum Noise: 70 dB

Origin: Turkey
Note: Product information has been obtained from the manufacturer.
