PCE LES 103 Vibration Measurement Device Stroboscope

Product Code : PCE-LES 103
Free Shipping
%0
26,873 TL
26,873 TL
22,394 TL + VAT

Out Of Stock

Notify me when its in stock
  • 20 cm mesafede 1000 Hz, 11730 lux ışık şiddeti üretir
  • Dönen makinelerin hız ve titreşim analizinde endüstriyel kullanım
  • Şarjlı pil sayesinde taşınabilir ve şebekeden bağımsız
  • 10 tuşlu kontrol paneli, hızlı ayar ve faz kayması özelliği
ProductFeatures
Depth(cm)
9
Height (cm)
3.5
Width (cm)
16.5
Weight
0.284

PCE-LES 103 Stroboscope

With the PCE-LES 103 stroboscope, the movement of rotating machines can be analyzed quickly and easily. The basic principle of this stroboscope device is based on the phenomenon of producing short, bright light flashes at certain and adjustable frequencies to make a moving object appear as if it were stationary.

  • The PCE-LES 103 stroboscope is a device with a bright LED light that flashes very quickly at certain intervals. The purpose of this light is to make a moving object appear as if it is slowing down or stopping.

  • The device has a Turkish menu.

  • The purpose of using a stroboscope in the industry is to make a moving part appear stationary by matching the LED light flashing speed with the movement of the moving part.

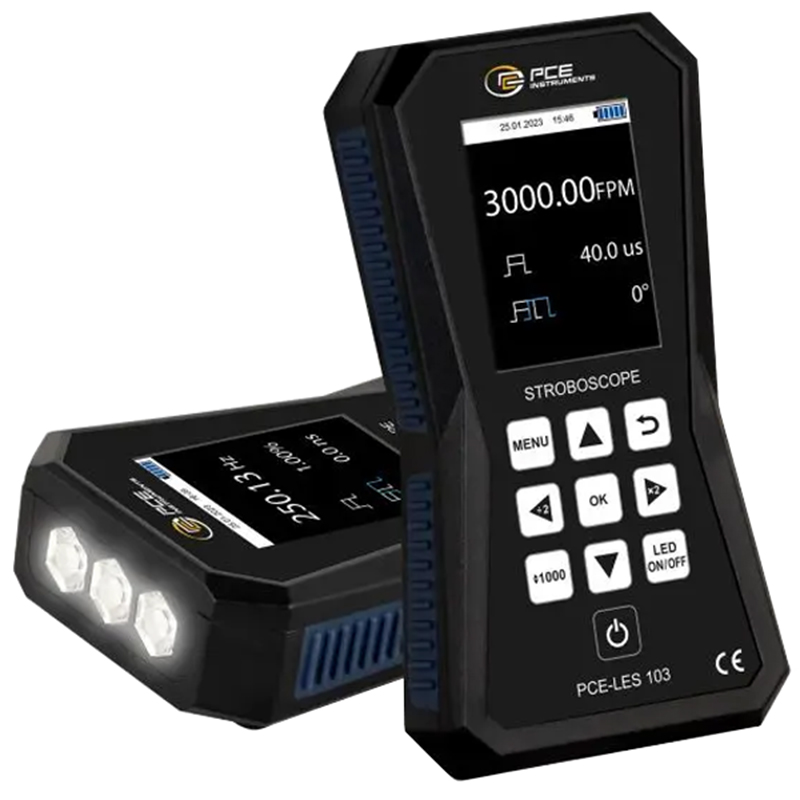

  • PCE-LES 103 has 3 high-power LEDs that produce 11730 lux light intensity at 20 cm distance and 1000 Hz operating frequency.

  • At a 30 cm distance and 1000 Hz flash frequency setting, the light intensity is 6160 lux.

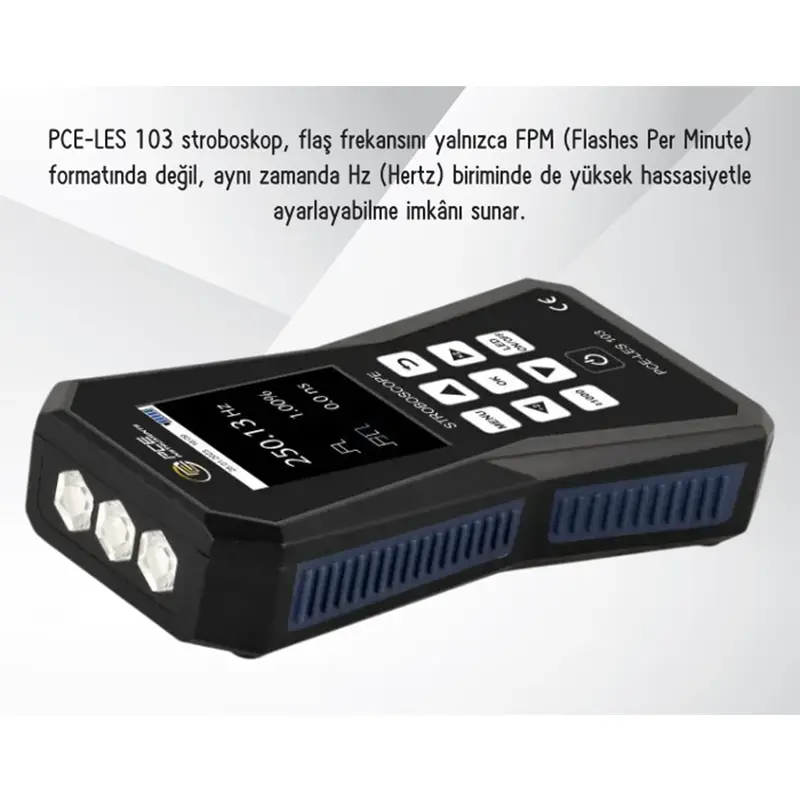

  • The device can adjust the flash frequency in FPM (Flashes Per Minute) and Hz (Hertz) units with high precision.

  • Thanks to its integrated rechargeable battery, it is compact, portable, and suitable for independent use from the mains.

  • It is easy to use with the 10 buttons on it and quick adjustments can be made.

  • Thanks to the phase shift feature, the observation point can be dynamically changed, so different points of the rotating or vibrating object can be observed as if they were fixed.

  • Pulse width is adjustable; thus, the flash duration and frequency intensity are precisely controlled.

  • Screen brightness can be selected from the settings menu and can automatically turn off when the screen is not in use, extending battery life.

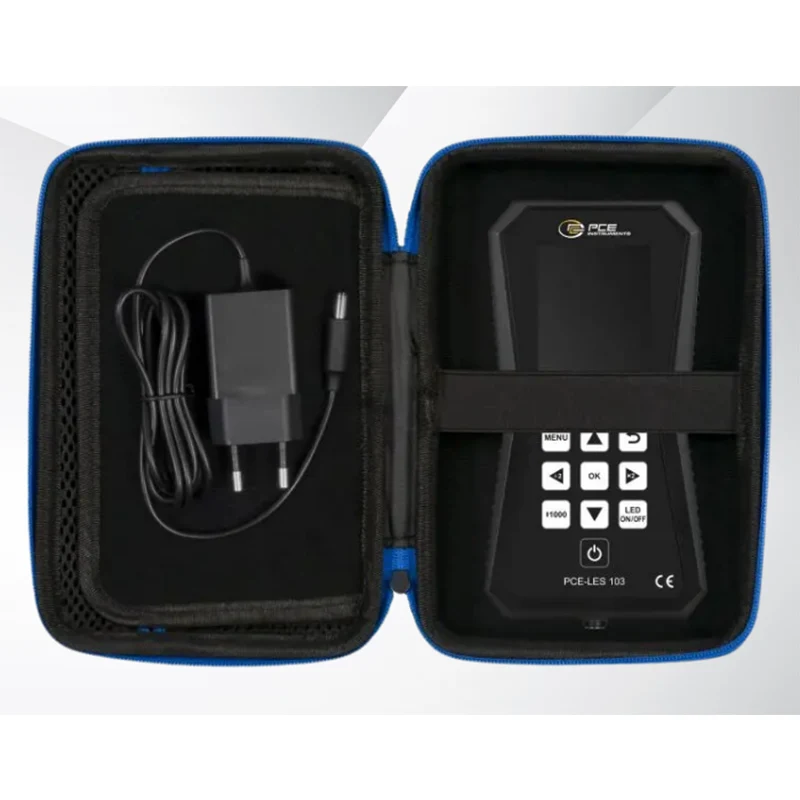

  • Delivered with a carrying case and USB-C charging cable.

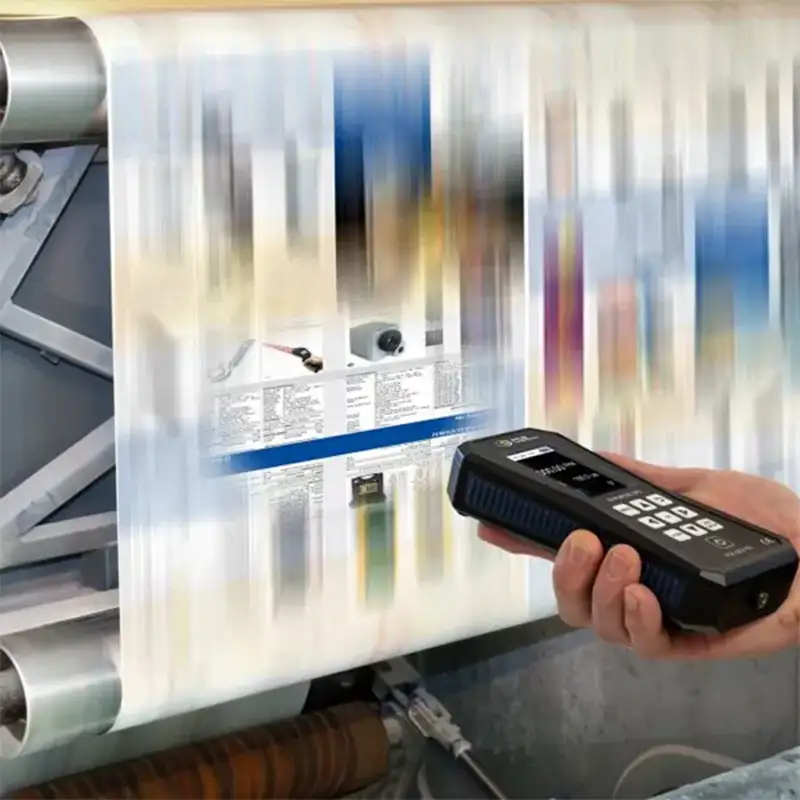

  • Plays an important role in monitoring production lines, print quality, and fabric surface processes in the printing and textile industries.

  • It is an ideal solution for industrial applications such as general maintenance, quality control, and safety inspections.

  • Provides non-contact speed and vibration measurement.

TECHNICAL SPECIFICATIONS

• Measurement Range: +60 FPM … +999.99 FPM, +10,000 FPM … +300,000 FPM, +1 Hz … +5000 Hz
• Resolution: 0.01 FPM / 0.1 FPM / 0.01 Hz
• Accuracy: %0.003 of the setting or 1 digit
• Time Base: 10 MHz quartz crystal oscillator
• Language Option: Turkish, German, English, Spanish, French, Italian, Dutch, Polish, Russian, Chinese
• Light Intensity: 11730 lux @ 20 cm @ 1000 Hz ± %1, 6160 lux @ 30 cm @ 1000 Hz ± %1, 2650 lux @ 50 cm @ 1000 Hz ± %1
• Light Color: 6500 K
• Phase Shift: -360 degrees … +360 degrees
• Display: 2.8 inch TFT display
• Dimensions: 165 x 90 x 35 mm
• Weight: 284 grams
• Power Supply: 5 V DC, 2 A
• Battery and Accumulator: 2200 mAh Lithium-ion battery, 7.4 V
• Operating Time: 4.5 hours (at 100 Hz flash frequency, %1, screen brightness %70)
• Protection Class: IP52
• Auto Shutdown: Adjustable, selectable between 2 to 10 minutes
• Operating and Storage Temperature: -20 degrees … +60 degrees, %35–85 relative humidity
