PCE S41 Electronic Stethoscope, Machine Maintenance and Fault Detection

Product Code : PCE-S41
Free Shipping
%0
15,312 TL
15,312 TL
12,760 TL + VAT

Out Of Stock

Notify me when its in stock
  • 100 Hz-10 kHz frekans aralığı, geniş ses tespiti
  • 2 m ayarlanabilir kulaklık kablosu, hareket özgürlüğü
  • ABS gövde, hafif 0,24 kg
ProductFeatures
Depth(cm)
5
Height (cm)
3.2
Width (cm)
20.6
Weight
0.24

PCE-S41 Electronic Stethoscope | Machine Maintenance and Fault Detection

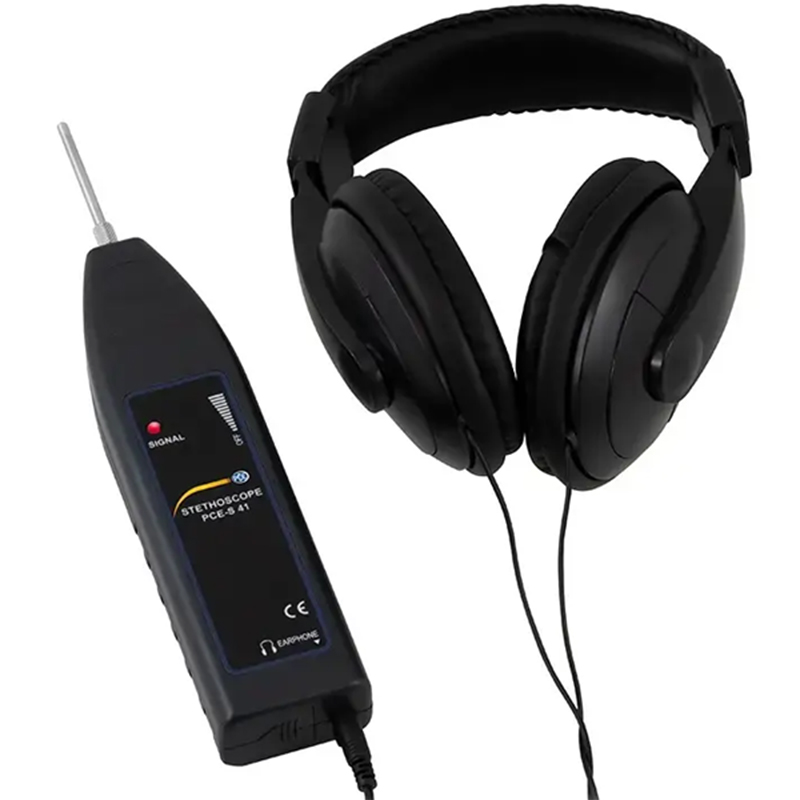

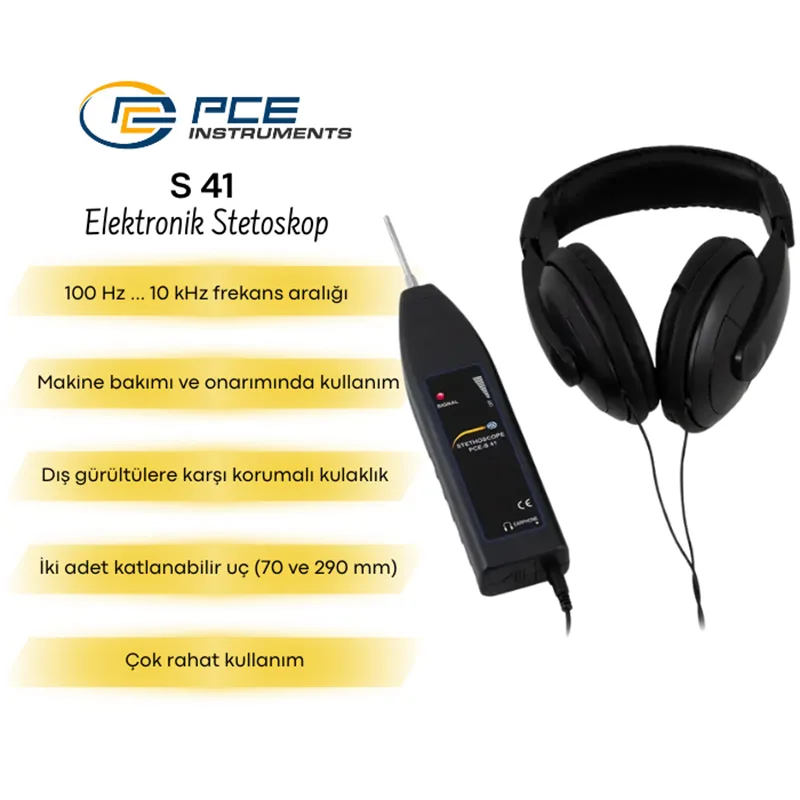

PCE-S 41 is an electronic stethoscope with headphones used in machine and engine maintenance to detect abnormal sounds in internal mechanisms. This device transmits the sounds heard more clearly and loudly, allowing maintenance personnel to perform more precise analysis at the listening point.

  • This battery-operated device is portable and easy to use.

  • It detects sounds in machine parts such as gears, valves, ventilation ducts, and pumps, enabling the early detection of vibration and sound-related issues. This helps prevent costly breakdowns.

  • The stethoscope, which can detect frequencies in the range of 100 Hz … 10 kHz, can identify problems in systems operating at both low and high frequencies:

    • Low-frequency sounds: Motor hum, bearing failure, resonances

    • High-frequency sounds: Friction, lack of lubrication, minor mechanical failures

  • The device features piezoelectric sensor technology capable of detecting mechanical vibrations that the human ear cannot normally hear.

  • Its body is made of ABS plastic, offering a lightweight and ergonomic design.

  • Adjustable 2-meter long headphone cable provides the user with freedom of movement.

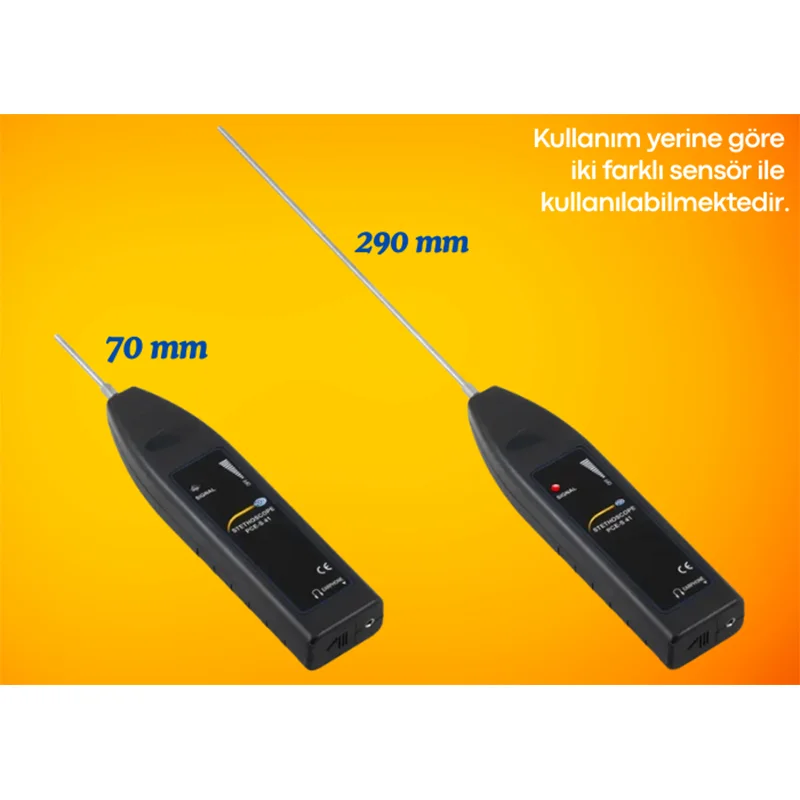

  • The device comes with two sensors of different lengths (70 mm and 290 mm), allowing measurements in both narrow and hard-to-reach areas.

  • The stethoscope detects sounds such as "clicking" at high frequencies or "humming" at low frequencies, enabling early diagnosis of faults and facilitating preventive maintenance.

Technical Specifications:

  • Frequency Range : 100 Hz … 10 kHz
  • Sound Level : Adjustable
  • Speaker : 8 W
  • Body Material : ABS plastic
  • Sensors : 1 piece 70 mm, 1 piece 290 mm (detachable steel sensor)
  • Operating Temperature : -10 degrees … 55 degrees
  • Dimensions : 206 x 50 x 32 mm
  • Weight : 240 grams
  • Power Source : 1 x 9 V block battery (included), approximately 30 hours of usage time

Box Contents

  • 1 x PCE-S 41 electronic stethoscope

  • 1 x Adjustable headphones

  • 1 x 70 mm sensor

  • 1 x 290 mm sensor

  • 1 x 9 V block battery

  • 1 x Carrying case

  • 1 x User manual
