PCE CP10 Photometer, Alkalinity, Chlorine, Cyanuric Acid, pH Meter

PCE-CP10 Photometer | Alkalinity, Chlorine, Cyanuric Acid, pH

PCE-CP 10 is a comprehensive and portable photometer designed to analyze alkalinity, free chlorine, total chlorine, cyanuric acid, and pH values in liquids.
It offers reliable solutions for water quality measurements with its wide measuring capacity, accurate results, and wireless data transfer.

• Versatile Use: Ideal for measuring alkalinity, free chlorine, total chlorine, cyanuric acid, and pH.

• Precise Measurement Technology: Operates with LED light sources at wavelengths of 503 nm, 570 nm, and 620 nm and a photodiode detector.

• Easy to Use: Quick measurements can be made by placing a 10 ml liquid sample into the device's cuvette.

• Automatic Data Recording: Measurement results are automatically saved to the device.

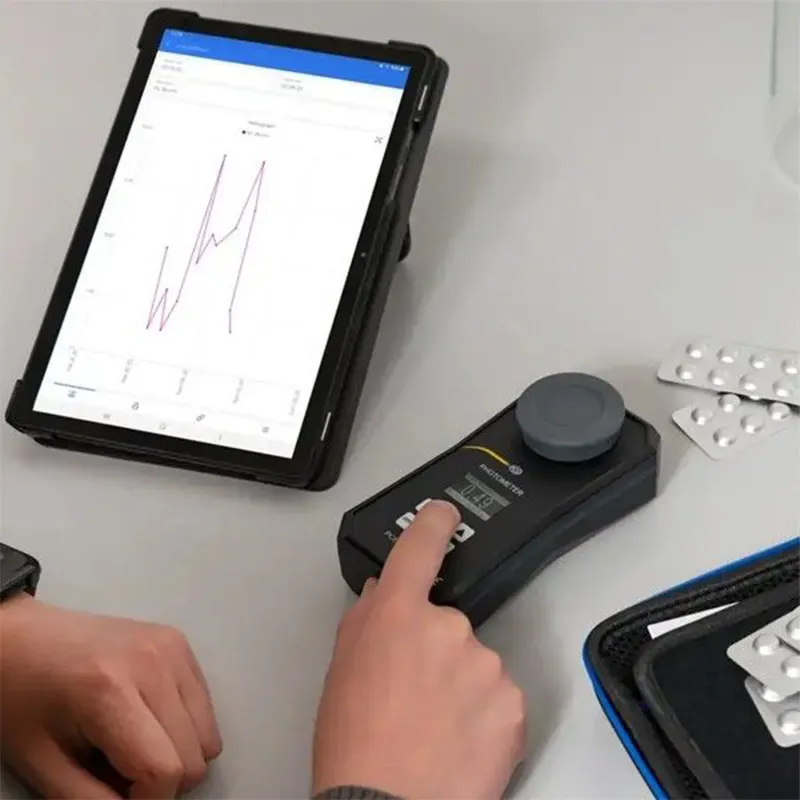

• Bluetooth Connection: Measurement data can be wirelessly transferred through a mobile app or PC software.

• Cloud-Based Access: Data can be uploaded to the cloud system for access from anywhere with an internet connection.

• Mobile Compatible: The app for smartphones can be downloaded via QR code.

• Free Software and App: Software and mobile app are provided for free to analyze measurement data.

• Portable Design: Its compact structure makes it suitable for field applications.

Applications

• Water treatment plants

• Swimming pools

• Industrial water systems

• Laboratories

• Agricultural irrigation systems

Technical Specifications

• Light Source: 503 nm / 570 nm / 620 nm LED

• Light Detector: Photodiode

• Cuvette Size: 36 x diameter 21 mm (10 ml)

• Language Options: English, German, French, Spanish, Italian

• Memory Feature: Automatically saves measurement values

• Memory Capacity: 256 measurement values

• Connection Interface: Bluetooth support with mobile app and PC software

• Operating Temperature: Between 5 and 45 degrees

• Operating Humidity: 20% to 90% relative humidity (non-condensing)

• Device Dimensions: 165 x 95 x 50 mm

• Device Weight: 230 grams

• Automatic Shutdown Time: Automatically shuts down after 5 minutes of inactivity

• Power Source: 4 x 1.5V AA battery

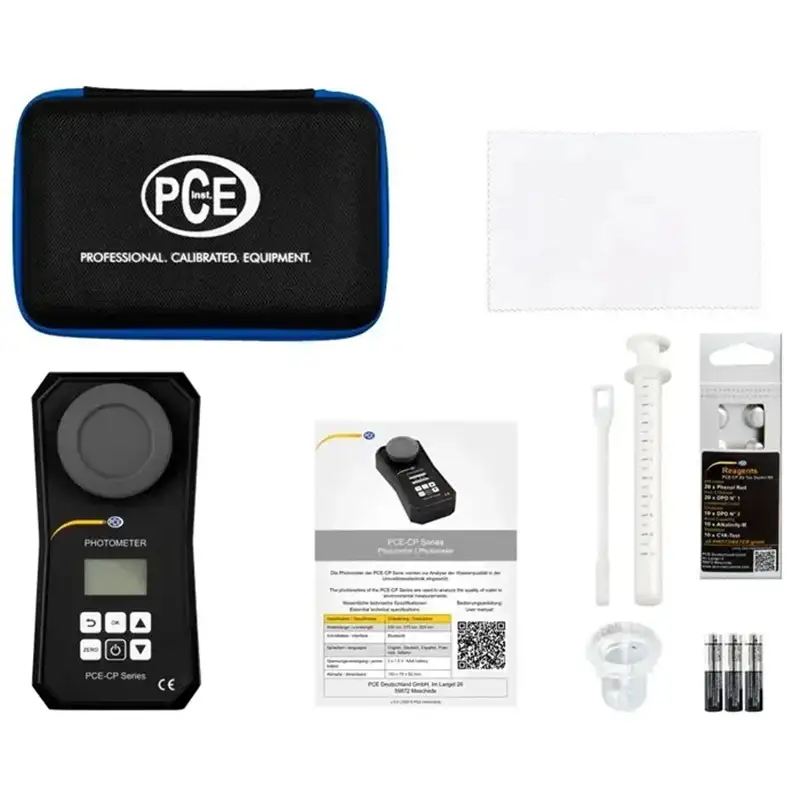

Delivery Contents

• 1 x PCE-CP 10 Photometer (including cuvette)

• 1 x Spare cuvette

• 1 x Light protection cap

• 1 x Microfiber cloth

• 1 x Piston

• 1 x 10 ml dosing pipette

• 4 x AA battery

• 1 x User manual

• 1 x Carrying case

• 1 x Free mobile app

• 1 x Free analysis software

• 1 x Free cloud service

• 1 x Reagent starter kit:

  • 20 x pH

  • 20 x Free chlorine

  • 10 x Combined/Total chlorine

  • 10 x Alkalinity

  • 10 x Cyanuric acid
