Compact Design: With a 100 mm vane diameter, it is a lightweight and portable measuring device.
High Precision: Imported from Germany, it has the ability to precisely measure air velocity and flow rate.
Special Usage Area: Allows quick, simple, and precise measurements at air inlet and outlet ducts of air conditioning and ventilation systems.
Integrated Vane Probe: The 100 mm vane type probe delivers fast and accurate results.
Wide and Readable LCD Screen: Thanks to the renewed screen light, measurements can be easily read even in dark environments.
Automatic Shut-off: The device automatically shuts off when not in use to save energy.

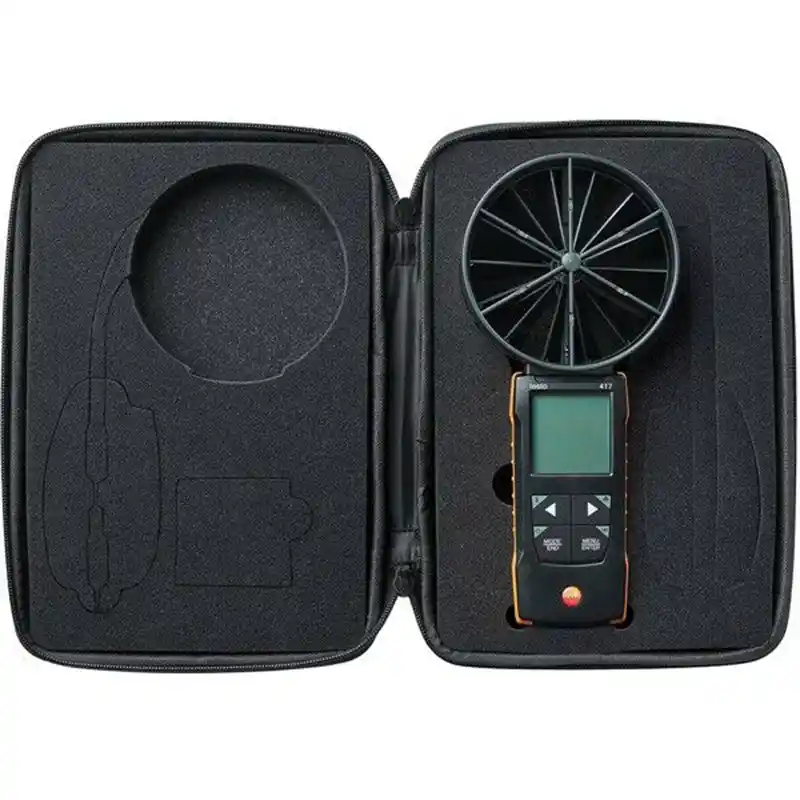

Package Contents: Testo 417 anemometer, carrying case, factory test certificate, and 3 AA batteries.
Time and Spot Average: Automatically calculates and displays time and spot-based average values and volume flow during measurement.
Efficient Ventilation Setting: Helps in the correct and efficient adjustment of balanced residential ventilation systems.
Smart Configuration and Connection: With the Testo smart app, you can configure your device, save measurement data, and easily document. The app and device connect automatically.

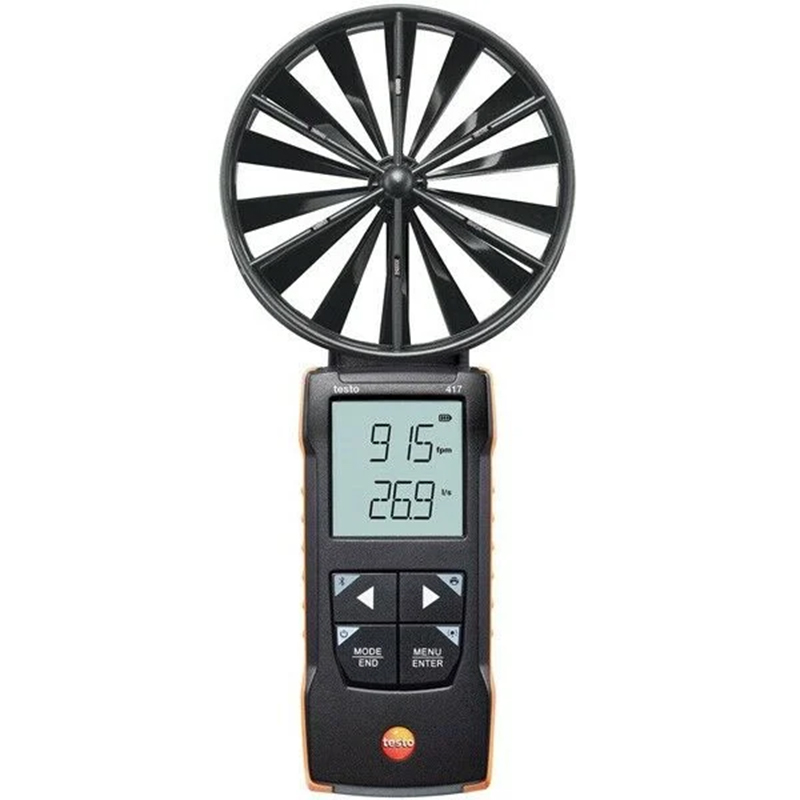

Testo 417 is an ideal, user-friendly, and advanced technology device for precise air velocity and flow measurement in ventilation and air conditioning systems.
TECHNICAL SPECIFICATIONS
Air Velocity Measurement Range : +0.3 … +20 m/s
Air Velocity Precision : ±(0.1 m/s + 1.5 % of mv)
Air Velocity Resolution : 0.01 m/s
Air Temperature Measurement Range : 0 °C … +50 °C
Air Temperature Precision : ±0.5 °C
Air Temperature Resolution : 0.1 °C
Air Flow Measurement Range : 0 … +99999 m³/h
Air Flow Resolution : 0.1 m³/h (0 … +99.9 m³/h) - 1 m³/h (+100 … +99999 m³/h)
Vane Diameter : 100 mm
Protection Class : IP40 (Device) | IP20 (Vane)
Display : Backlit LCD display
Hold Feature : Yes
Max/Min Feature : Yes
Automatic Shut-off : Yes
Screen Light : Yes
Operating Temperature : -20 °C … +50 °C
Storage Temperature : -20 °C … +50 °C
Dimensions : 236 x 108 x 45 mm
Weight : 243 g
Power Supply : 3 x AA Battery
