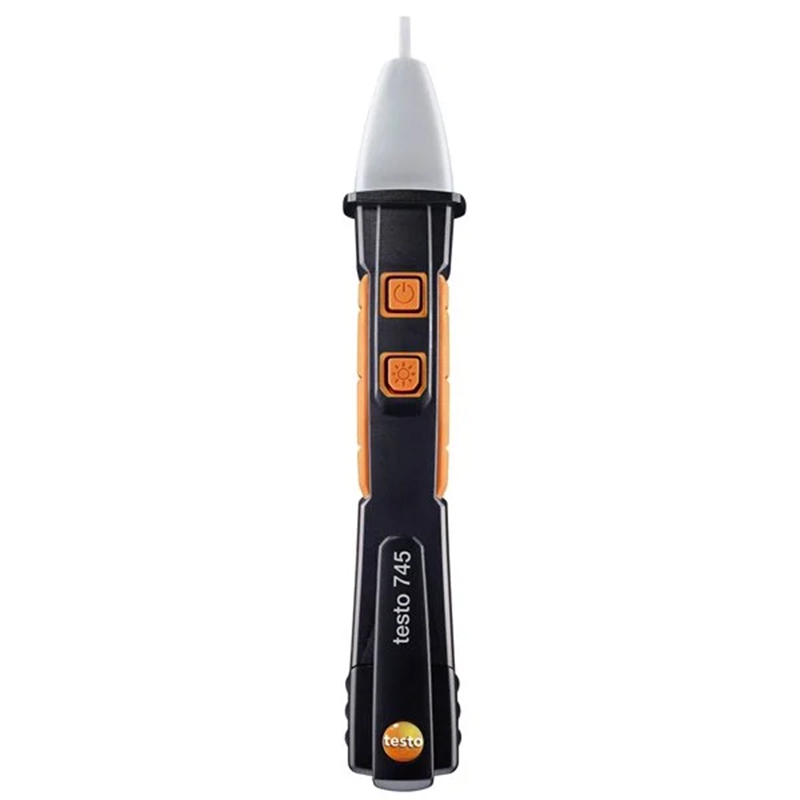

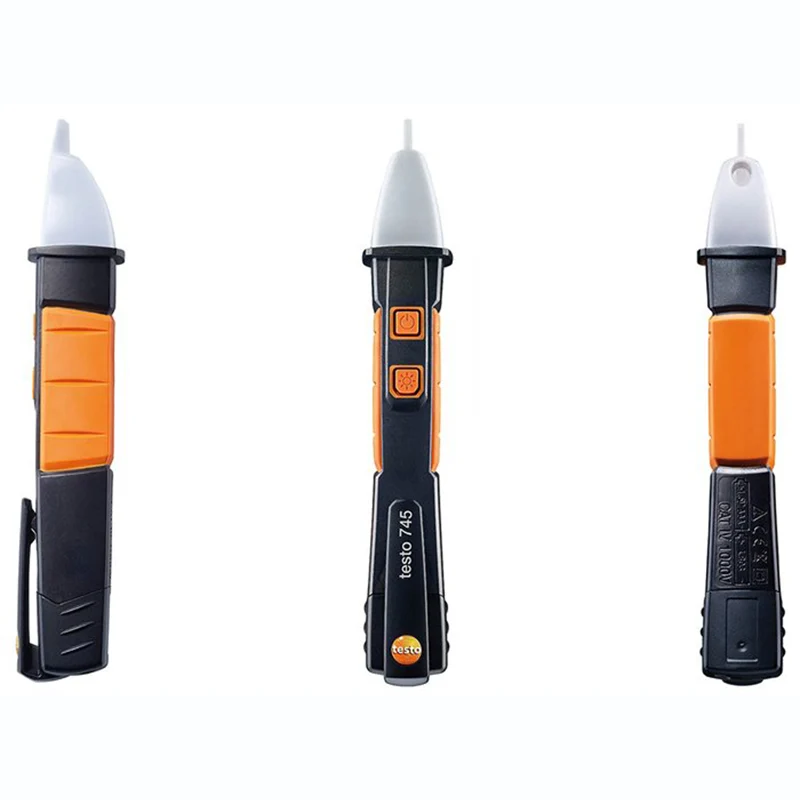

Testo 745 Non-Contact Voltage Tester

Testo 745 Non-Contact Voltage Tester

• With the non-contact voltage tester Testo 745, voltage measurement can be performed quickly and easily.

• Having a filter for high-frequency interference signals ensures safe voltage measurement.

• The sensitivity of the device can be adjusted in two stages. Stage 1 is for phase detection, Stage 2 is for determining voltage.

• When voltage is detected, Testo 745 alerts you via visual and audible signals.

• Thanks to the integrated flashlight in the device, it ensures safe work in dark environments.

• The Testo 745 electrical tester is manufactured to be protected against IP67 water splashes and dust.

• With the Testo 745 non-contact voltage tester; while measuring phase or voltage, the white tip of the device will light up in red to alert you during the measurement.

• Measuring phase and voltage with Testo 745 is quite simple. All you need to do is bring the non-contact tester close to the cable you want to measure. If there is electricity flowing through the cable, it will alert you both visually and audibly.

TECHNICAL SPECIFICATIONS

• Operating Temperature: -10 °C … +50 degrees

• Protection Class: IP67

• Storage Temperature: -15 °C … +60 degrees

• Dimensions: 155 x 25 x 23 mm

• Weight: 63 grams

• Voltage Measurement Range: 12 … 1000 V / 50 … 1000 (sensitivity 1)

• Voltage Resolution: 1000 / 12 V (sensitivity 2)

• Measurement Point Illumination: Available
