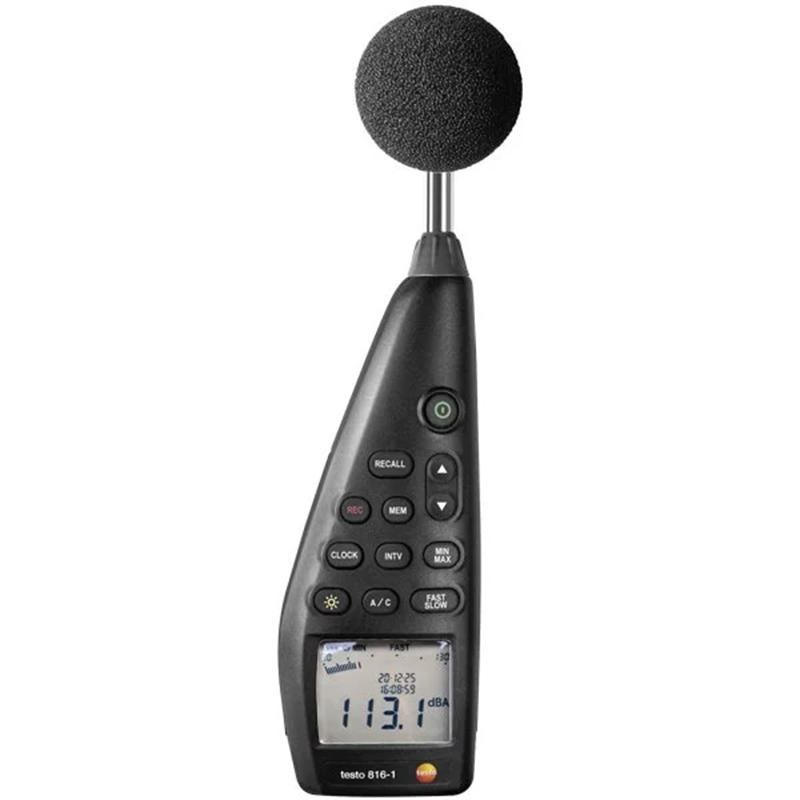

Notify me when its in stockCan perform precise measurements between 30 and 130 dB.
In frequency analysis, switching between A and C characteristics can be done with a single button.
A characteristic: Measures the sound frequency perceived by the human ear.
C characteristic: Covers low-frequency sounds.
Complies with IEC 61672-1 Class 2 and ANSI S1.4 Type 2 standards.
Can store approximately 31,000 measurement records in its memory.
Recorded measurement values can be viewed on the device without a computer using the "RECALL" button.
Measurement records that can be controlled on a computer with the "REC" button and on the device with the "MEM" button are taken.
Fast (125 ms) and slow (1 sec) response modes can be switched using the FAST/SLOW button.
Can be connected to a computer with a USB cable for data transfer and device control.
Has a low battery indicator, visually alerting the user when the battery is about to run out.
Thanks to the illuminated wide LCD screen, measurement results can be easily read even in dark environments.
With the Max/Min feature, the highest and lowest sound values measured can be displayed.
The device can be easily calibrated with the calibration screw on the side using the screwdriver included in the box.
The box includes 1 Testo 816-1 device, 4 AA batteries, a carrying case, wind protection, a PC software CD, a USB cable, a calibration screwdriver, a user manual CD, and a spare connector.
How to Delete Measurement Records on the Device?
Deleting Analysis Records on the Computer:
While the device is off, press and hold the "REC + POWER" buttons together.
The display will show "Clr Sure 5".
Without releasing the buttons, wait until the countdown reaches "SURE 0".
Once the process is complete, the display will only show "Clr" and the device will return to the main measurement screen.
Deleting Records on the Device:
While the device is off, press and hold the "RECALL + POWER" buttons together.
The display will show "Clr Sure 5".
Without releasing the buttons, wait until the countdown reaches "SURE 0".
Once the process is complete, the display will only show "Clr" and the device will return to the main measurement screen.
TECHNICAL SPECIFICATIONS
Measurement Range: 30 - 130 dB
Sensitivity: 1.4 dB (under reference conditions: 94 dB, 1 kHz)
Frequency Range: 20 Hz - 8 kHz
Display Resolution: 0.1 dB
A/C Frequency Weighting
Time Weighting: Fast 125 milliseconds / Slow 1 second
AC Measurement Range: 1 V RMS across the entire scale
DC Measurement Range: 10 mV/dB
Measurement Frequency: 0.5 seconds
Memory Capacity: 31,000 units
Power Source: 4 AA batteries
Operating Temperature: 0 degrees Celsius - +40 degrees Celsius
Storage Temperature: -10 degrees Celsius - +60 degrees Celsius
Weight: 390 grams
Dimensions: 272 x 83 x 42 mm
