Wintact WT323E Humidity Mold Analyzed Laser Thermometer, 1050C

WT323E Humidity Mold Analyzed Laser Thermometer 1050 Degree

• Measurement Modes:

  1. Mold Alarm Mode: Ambient temperature, ambient humidity, dew point, and laser surface temperature are measured. The risk of mold formation is shown with yellow (tendency), red (molding), or green (normal) lights by comparing surface temperature and dew point.

  2. Temperature Difference Mode: Laser temperature is compared with ambient temperature. Gives color warning (green-yellow-red) according to the magnitude of the difference.

  3. K Type Mode: Laser temperature and K type probe measurements are shown simultaneously.

  4. Emissivity Adjustment Mode: The emissivity coefficient for measurement can be adjusted in the range of 0.1 - 1.0.

• Precise Laser Measurement:
  Provides precise surface temperature measurement up to 1050 °C.

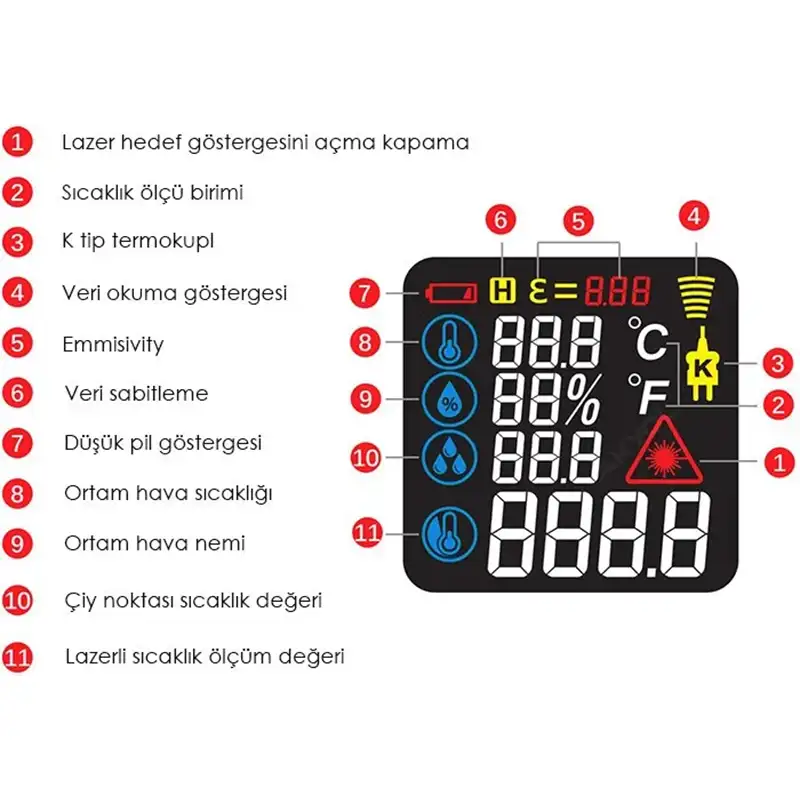

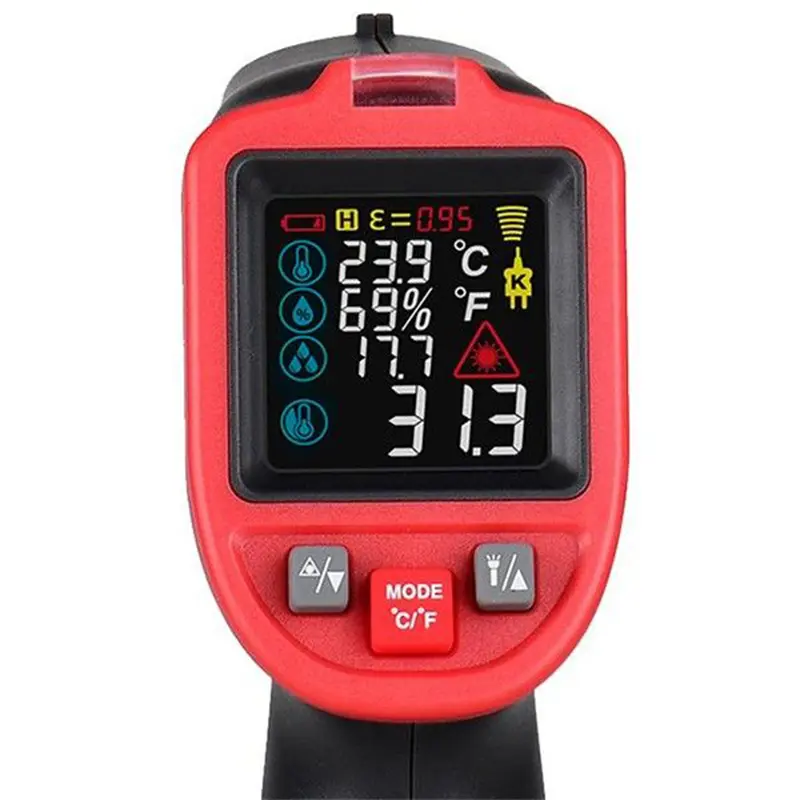

• Display:
  Easy readability and quick data detection thanks to the large, colorful LCD screen.

• Multiple Measurement Features:
  Ambient temperature, humidity, dew point, laser surface temperature, and K type probe temperature measurements.

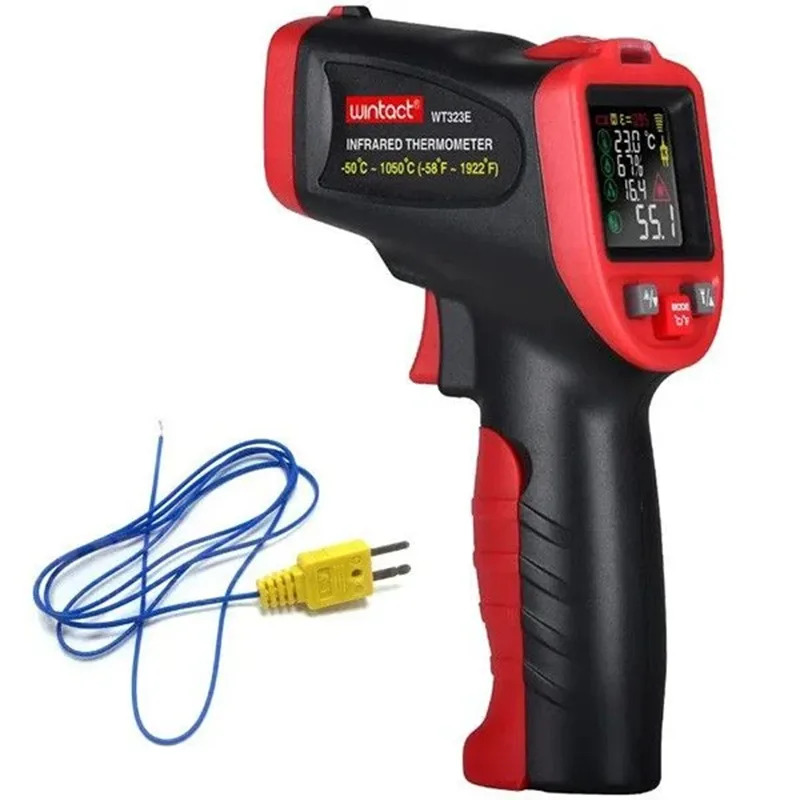

• K Type Probe Connection:
  Can measure between -50 °C and 500 °C. The probe that comes with the product has a maximum measurement capacity of 250 °C.

• Durability and Portability:
  Easily portable with a compact and robust design.

• Ease of Use:
  Simple interface, quick measurement with a single button, easy settings adjustments.

• Damage Alarm Mode:
  Analyzes the temperature difference for mold formation risk on wood, walls, food, and other surfaces (5 °C difference is a critical threshold).

• Application Areas:
  Air quality control, energy efficiency, and monitoring health conditions in homes, offices, laboratories, warehouses, greenhouses, climate control systems, and industrial areas.

• General:
  A user-friendly, reliable, and highly accurate multi-functional air temperature and humidity measuring device.

TECHNICAL SPECIFICATIONS

• Laser Temperature Measurement Range: -50 degrees … +1050 degrees

• Laser Temperature Sensitivity:

  • -50 degrees to 0 degrees: ±3 degrees

  • 0 degrees to 1050 degrees: ±1.5% reading value or ±1.5 degrees (whichever is greater)

• K Type Temperature Measurement Range:

  • With standard probe: 0 degrees … +250 degrees

  • With optional probe: -40 degrees … +500 degrees

• K Type Temperature Sensitivity: ±1 degree

• Ambient Temperature Measurement Range: 20 degrees … +60 degrees

• Ambient Temperature Sensitivity: ±1 degree

• Ambient Humidity Measurement Range: 10% … 90% relative humidity

• Ambient Humidity Sensitivity: ±5%

• Display Resolution: 0.1 degree

• Target Ratio (D:S): 16:1

• Emissivity: Adjustable, 0.10 … 1.00 range

• Display: Color LCD

• Laser Type: Circular targeting laser

• Response Time: 0.5 seconds

• Temperature Unit Selection: °C / °F can be converted

• K Type Probe Connection: Available

• Dimensions: 108 x 49 x 177 mm

• Weight: 202 grams

• Power Source: 2 AAA batteries

• Extra Light Feature: UV light in purple color

• Purple Light Usage: Suitable for currency verification and surface stain detection
