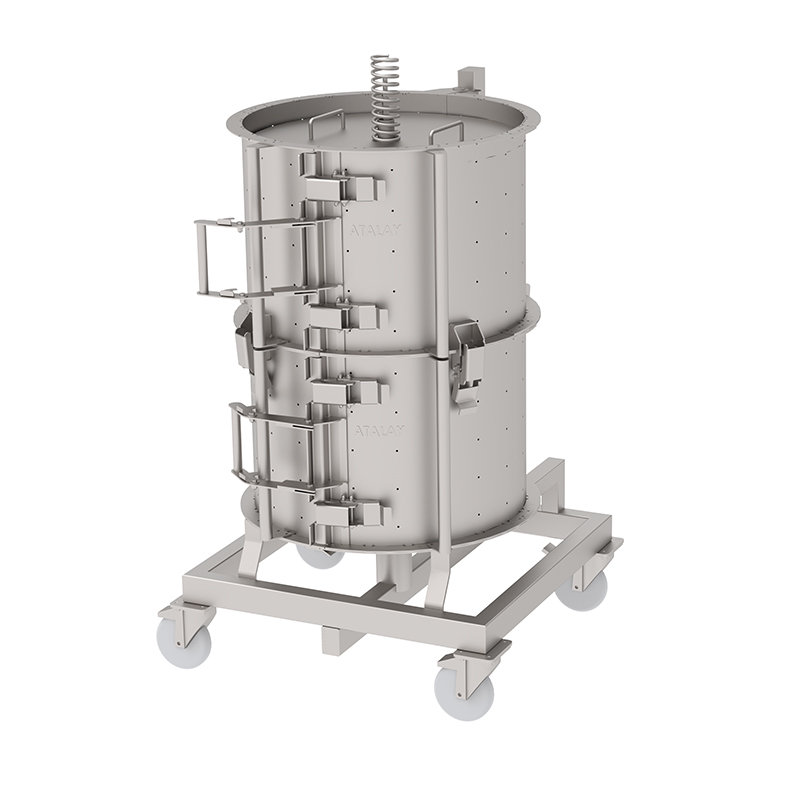

Atalay Döner Mold, 81x76.4x117 Cm, ADK 10 2

Atalay Döner Mold, 81x76.4x117 Cm, ADK 10 2

General Features

• Easily transportable thanks to its wheels.
• Allows easy product filling thanks to segmented cylindrical blocks.
• Easily lifted with the döner lift.
• Provides easy use with hinged cylindrical blocks.
• Fully stainless body and stainless wheels.
• The mold's lateral joining is enhanced with a rigid lock system to increase hinge durability.
• Additionally, this lock system provides an extra advantage during mold disassembly.
• The mold's vertical joining provides quick connection and precise block alignment with its pinned structure.
• The mold's geometric dimension tolerance stability is increased.
• The mold diameter is 620 mm and it consists of 3 blocks.
• Wheels open and close along with the mold's semicircles, providing ease of movement.
• The top part's centering sheet increases skewer geometric dimension stability.

Technical Specifications

• Number of Covers: 2x h;400 mm
• Mirrors: 440/320/200 mm
• Internal Height: 800 mm
• Internal Diameter: 560 mm
• Dimensions: 810x764x1170 mm
• Weight: 102 Kg
