AZ 86505 Table Type Ph, mV, Conductivity, TDS, Salinity, Temperature Meter

AZ 86505 Table Type Ph, mV, Conductivity, TDS, Salinity, Temperature Meter

• AZ 86505 laboratory type tabletop multi measurement device; is a laboratory type tabletop measurement device where pH, mV, TDS, Salinity, mS, and uS values can be monitored. It offers easy measurement with its large screen.

• AZ 86505 laboratory type tabletop measurement device; is a tabletop measurement device that can measure pH, mV, TDS, Salinity, mS, and uS.

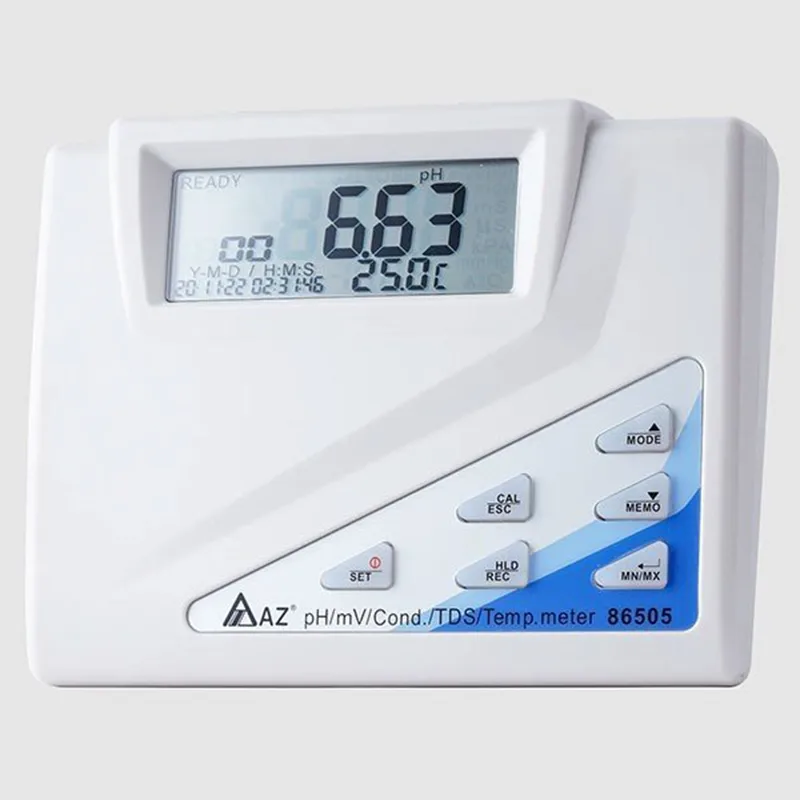

• Due to its ability to perform numerous measurements, it has a large screen for more easily examining multiple parameters.

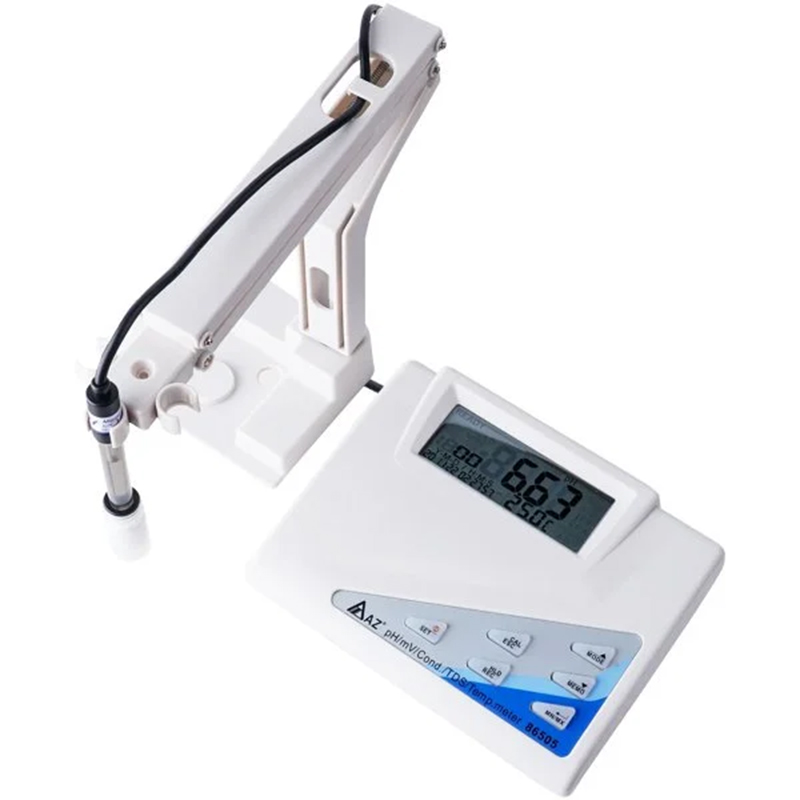

• The 86505 measurement device has a sturdy electrode holder on the right and left sides for placing electrodes.

• The holder arms of the measurement device are also an acrobat arm. It can be moved in the desired direction.

• Many of the features measured by the device can be calibrated up to 5 points. 3 points for pH, 1 point for oxygen, and one point for conductivity.

• The AZ86505 measurement device has features such as Hold function and Max/Min function.

• The AZ86505 tabletop measurement device has a memory for storing 99 measurements.

• The device operates via its adapter.

• The standard package of the AZ86505 measurement device includes; 86505 (the device itself), Conductivity electrode, Ph electrode, Electrode holder, Software CD, Connection cable, and Adapter.

TECHNICAL SPECIFICATIONS

• pH Measurement Range: 0 ~ 14 pH

• pH Sensitivity: ±0.02 pH

• pH Resolution: 0.01 pH

• pH Calibration: Calibration up to a maximum of 5 points

• mV Measurement Range: ±1999 mV

• mV Sensitivity: ±0.2 mV (-199.9 mV ... 199.9 mV), ±2 mV for others

• mV Resolution: 0.1 mV (-199.9 mV ... 199.9 mV), 1 mV for others

• Conductivity Measurement Range: 0 ~ 19.99 / 0 ~ 199.9 / 0 ~ 1999 µS/cm | 0 ~ 19.99 / 0 ~ 199.9 mS/cm

• Conductivity Sensitivity: ± %1 F.S ± 1

• Conductivity Resolution: 0.01 µS / 0.1 µS / 1 µS / 0.01 mS / 0.1 mS

• Conductivity Calibration: Calibration up to a maximum of 5 points

• TDS Measurement Range: 0.00 ... 19.99 ppm / 0.00 ... 19.99 ppt

• TDS Sensitivity: ± %1 F.S ± 1

• TDS Resolution: 0.01 ppm / 0.1 ppm / 1 ppm / 0.01 ppt / 0.1 ppt

• TDS Calibration: Calibration up to a maximum of 5 points

• Salinity Measurement Range: 0.00 ... 11.38 ppt / 0.0 ... 80.0 ppt

• Salinity Resolution: 0.01 ppt / 0.1 ppt

• Temperature Measurement Range: 0 ... 80 °C

• Temperature Sensitivity: ±0.5 °C

• Temperature Resolution: 0.1 °C

• Units Measured: pH, ppm, ppt, mV, µS, mS

• Salinity Calibration: Calibration up to a maximum of 2 points

• Measurement Storage Capacity: Stores 99 measured values in memory

• Display: LCD

• Dimensions: 317 x 168 x 58 mm

• Weight: 150 gr
