AZ 8651 Ph and Orp Measurement Device, Precision

AZ 8651 Ph and Orp Measurement Device | Precision

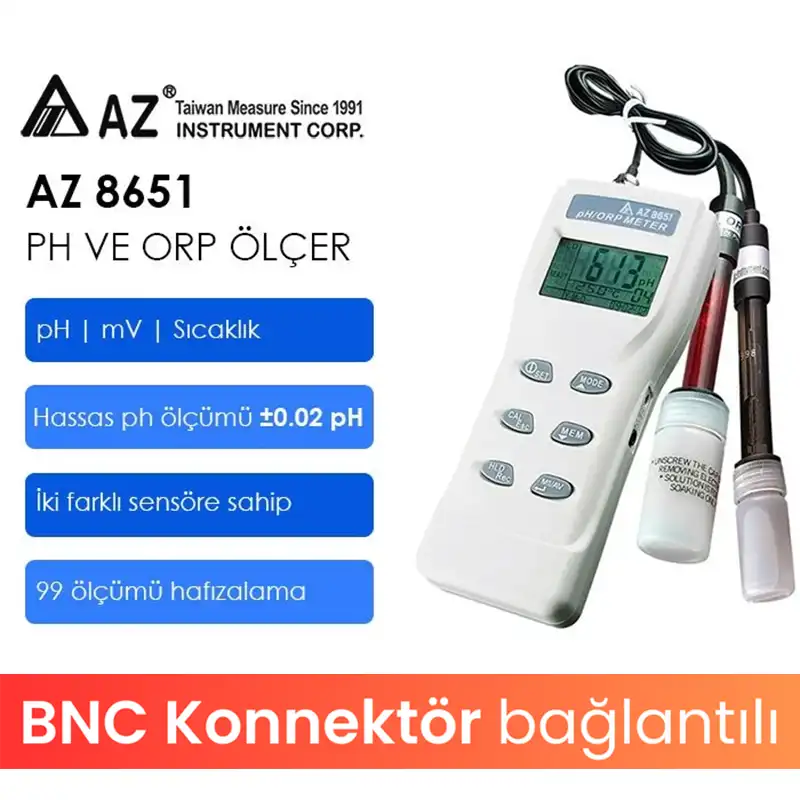

• AZ 8651 device measures pH and ORP (Oxidation Reduction Potential).

• It has a precision of ±0.02 pH in pH measurement.

• Suitable for both high precision pH and ORP measurements.

• Usage areas include laboratories, water treatment plants, fish farms, swimming pools, and all professional water-related analyses.

• pH and ORP probes are connected to the device via BNC connection, and the temperature probe is plugged into the jack next to the BNC.

• Thanks to the BNC connector, non-AZ Instrument pH probes can also be operated.

• The device has a single probe connection; AZ86P3 should be attached for pH measurement, and AZ850P probe for ORP measurement.

• Automatic pH calibration can be done with one button up to five points.

• Calibration errors are prevented with the pH automatic buffer recognition feature.

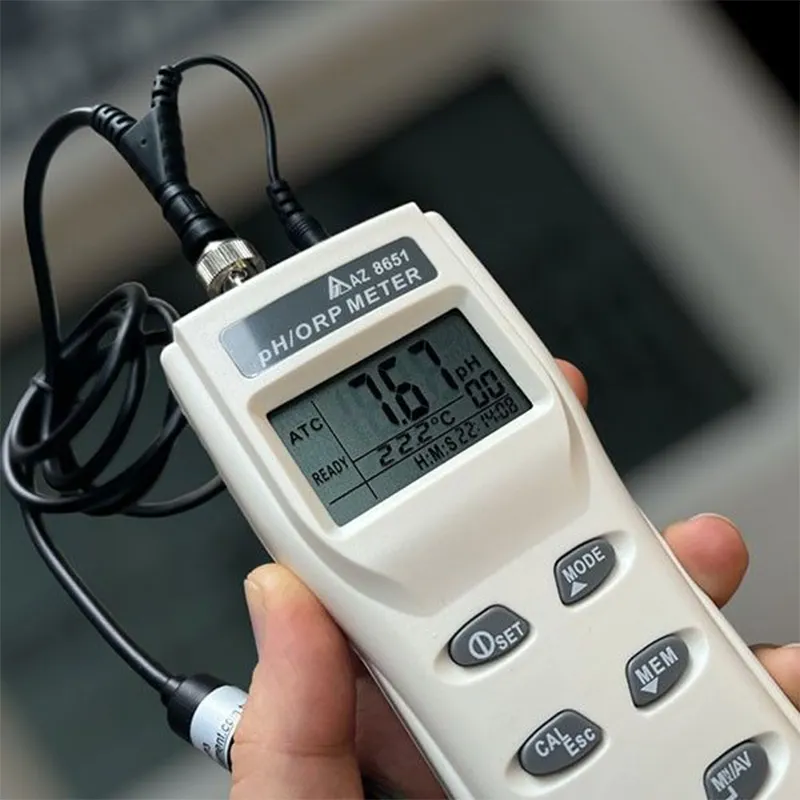

• When electrodes are ready to measure, a "Ready" message appears on the screen.

• There is an automatic status indicator for pH electrodes.

• Features include Hold, Maximum-Minimum functions, and measurement value storage.

• 99 measurements can be recorded in memory.

• The device operates with batteries for portability; it can also be used with a 9V DC adapter.

• Thanks to the backlight function, usage in dark environments is easy.

Technical Specifications

• pH Measurement Range: 0.00 ... 14.00 pH

• pH Accuracy: ±0.02 pH

• pH Resolution: 0.01 pH

• pH Calibration: Yes, automatic from 5 points

• Temperature Measurement Range: 0.0 ... 60.0 degrees

• Temperature Accuracy: ±0.3 degrees

• Temperature Resolution: 0.1 degrees

• Temperature Compensation: Yes

• Measurement Storage Capacity: 99 measurements

• ORP Measurement Range: -1999 ... 1999 mV

• ORP Accuracy: ±0.2 mV (-199.9 ... 1999.9 mV), ±2 mV (other ranges)

• ORP Resolution: 0.1 mV (-199.9 ... 1999.9 mV), 1 mV (other ranges)

• Display: LCD

• Dimensions: 175 x 70 x 33 mm

• Weight: 150 grams (device only)

• Power Source: 4 AAA batteries (included in package)

• Package Contents: Device, 4 AAA batteries, English user manual, plastic carrying case, pH4, pH7, and pH10 calibration solutions
