AZ 86555 Desktop Meter with Built-in Printer | pH | Conductivity | TDS | Salinity | Temperature
Wide Measurement Capacity:

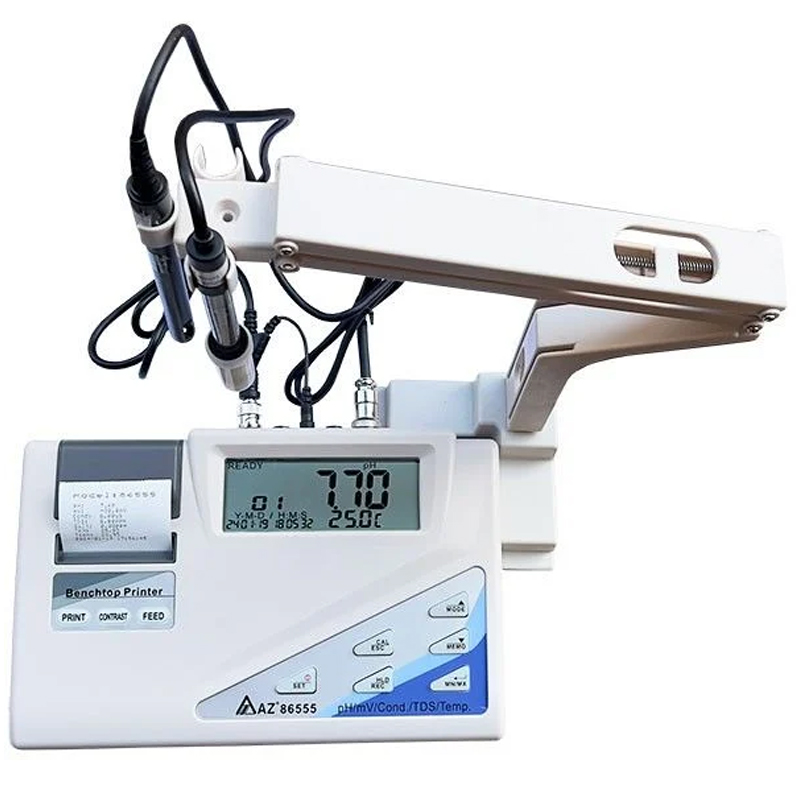

The AZ 86555 is a multifunctional desktop analysis device capable of precisely measuring pH, mV (with optional probe), conductivity, TDS, salinity, and temperature.
Dual Probe Support for Simultaneous Measurements:
Thanks to two different probes included in the set, both pH and conductivity, TDS, and salinity values can be measured. A probe holder with space for up to three electrodes is built into the device.

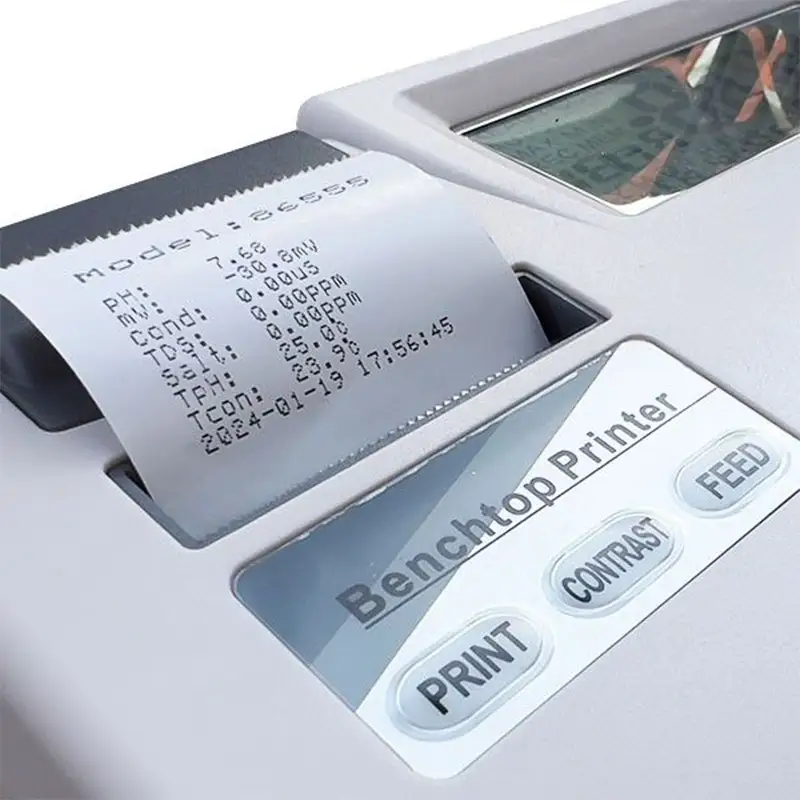

Integrated Printer for Instant Output:
The built-in printer allows you to print measurement results on slips. Stored historical data can also be printed later.
Large Display and User-Friendly Interface:
A wide LCD screen enables you to view multiple parameters simultaneously, facilitating fast and efficient operation.
Data Storage and PC Connectivity:
Up to 99 measurements per parameter can be stored in memory and transferred to a computer using the included software.
Flexible Probe Arm:
The probe holder features an adjustable arm design that can be easily positioned in any direction.
Advanced Calibration Capabilities:
– Supports up to 5-point calibration
• 3-point for pH
• 1-point for dissolved oxygen
• 1-point for conductivity
– Includes buffer solution recognition to reduce calibration errors.
Functions:
– Hold function to freeze readings
– Max/Min value display feature

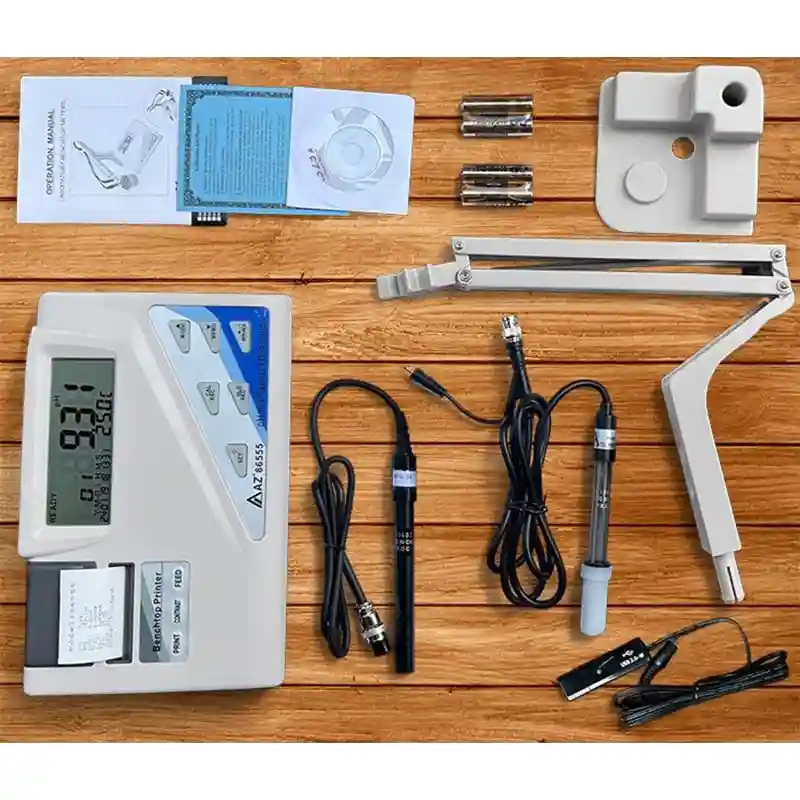

Package Contents:
– AZ 86555 device
– pH electrode
– Conductivity electrode
– Electrode holder (flexible arm)
– Software CD
– PC connection cable
– 4 x AA batteries
Technical Specifications
pH Measurement Range: 0.00 ~ 14.00 pH
pH Accuracy: ±0.02 pH
pH Resolution: 0.01 pH
pH Calibration: Up to 5 points
mV Measurement Range: ±1999 mV (optional probe)
mV Accuracy:
±0.2 mV (–199.9 to 199.9 mV)
±2 mV (for other ranges)
mV Resolution:
0.1 mV (–199.9 to 199.9 mV)
1 mV (for other ranges)
Conductivity Measurement Range:
0 ~ 19.99 μS/cm
0 ~ 199.9 μS/cm
0 ~ 1999 μS/cm
0 ~ 19.99 mS/cm
0 ~ 199.9 mS/cm
Conductivity Accuracy: ±1% FS
Conductivity Resolution: 0.05%
TDS Measurement Range:
0 ~ 19.99 ppm
0 ~ 199.9 ppm
0 ~ 1999 ppm
0 ~ 19.99 ppt
0 ~ 199.9 ppt
TDS Accuracy: ±1% FS
TDS Resolution: 0.05%
Salinity Measurement Range:
0.00 ~ 11.38 ppt
0.0 ~ 80.0 ppt
Salinity Accuracy: ±1% FS
Salinity Resolution: 0.1 ppt
Temperature Measurement Range: 0 ~ 80°C
Temperature Accuracy: ±0.5°C
Temperature Resolution: 0.1°C
Measured Parameters: pH, mV, mS, µS, ppm, ppt
Memory: 99 readings per parameter
Display: LCD, 40 x 105 mm
Dimensions: 317 x 168 x 58 mm
Weight: 150 g
Power Supply: 4 x AA batteries or optional 9V adapter
