Dasqua 1804-4612 Leeb Metal Hardness Tester

Dasqua 1804-4612 Leeb Metal Hardness Tester

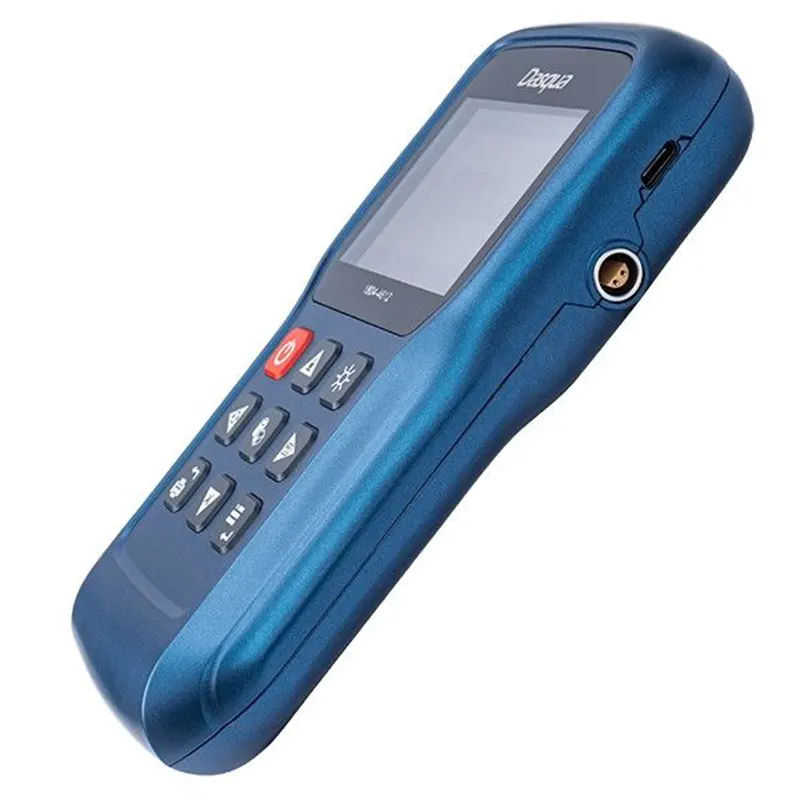

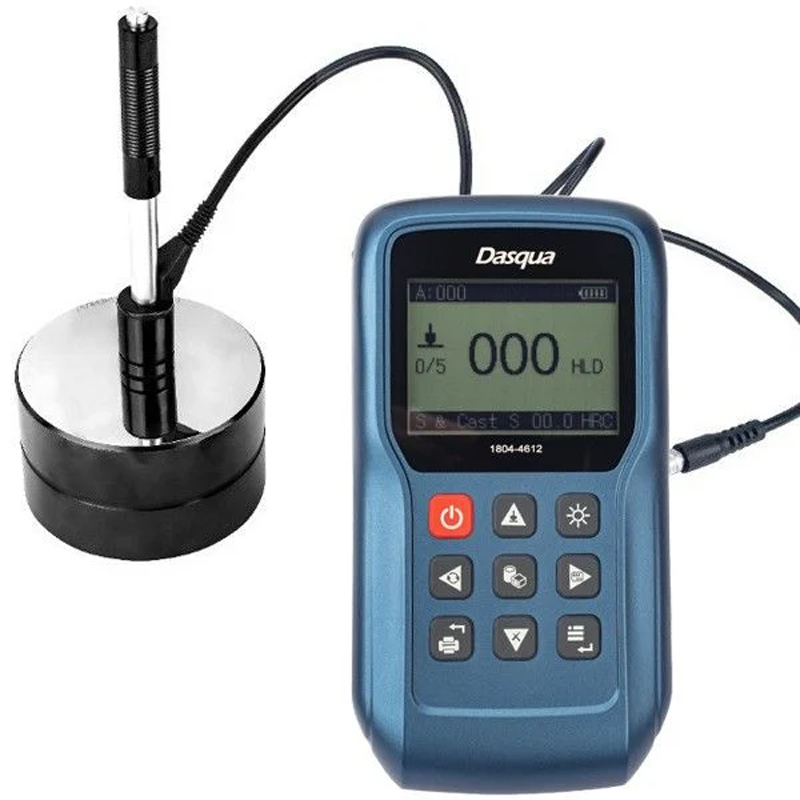

Dasqua 1804-4612 is a Leeb hardness testing device developed for fast and accurate analysis of the hardness of metal surfaces, with its portable structure and high measurement precision.
With its ease of use and versatile features, it has a wide range of applications in industrial environments.

• High precision measurement: Provides reliable results with ±6 HL accuracy.

• Portable design allows easy use in the field and workshop.

• Comes with a standard D type impact device. Can also be used with DC, DL, D+15, C, and G type impact tips as needed.

• Standard hardness block offers quick and easy calibration.

• Compatible Standards: GB/T17394, GB/T1172, ASTM A956, DIN 50156.

• 160 x 128 pixel resolution dot matrix LCD screen provides clear data display.

• The screen simultaneously shows Leeb hardness value, average value, conversion value, measurement direction, and material code.

• User-friendly menu allows quick access to settings and data.

• Optional printer connection allows measurement reports to be printed.

• Low energy consumption provides efficient operation.

• Type-C USB connection port allows data transfer.

• Low failure rate, offers long-lasting and reliable use.

• Measurement unit with Remo head, is easy to attach and remove and durable.

Package Contents

• Main unit

• Hardness gauge block (D type)

• Small support ring

• Cleaning brush

• D probe

• Hard plastic carrying case

• 3 AAA batteries

Technical Specifications

• Impact Types: D, DC, DL, D+15, C, G

• Precision: ±6 HL

• Hardness Units: HRA, HRC, HRB, HB, HV, HSD, MPa

• Data Capacity: 500 measurement records

• Printer: Optional (not included)

• Connection: Type-C USB

• Operating Temperature: -10 degrees ~ +40 degrees

• Storage Temperature: -30 degrees ~ +80 degrees

• Device Size: 154 x 82 x 26 mm

• Weight: 230 grams

• Power Source: 3 AAA batteries
