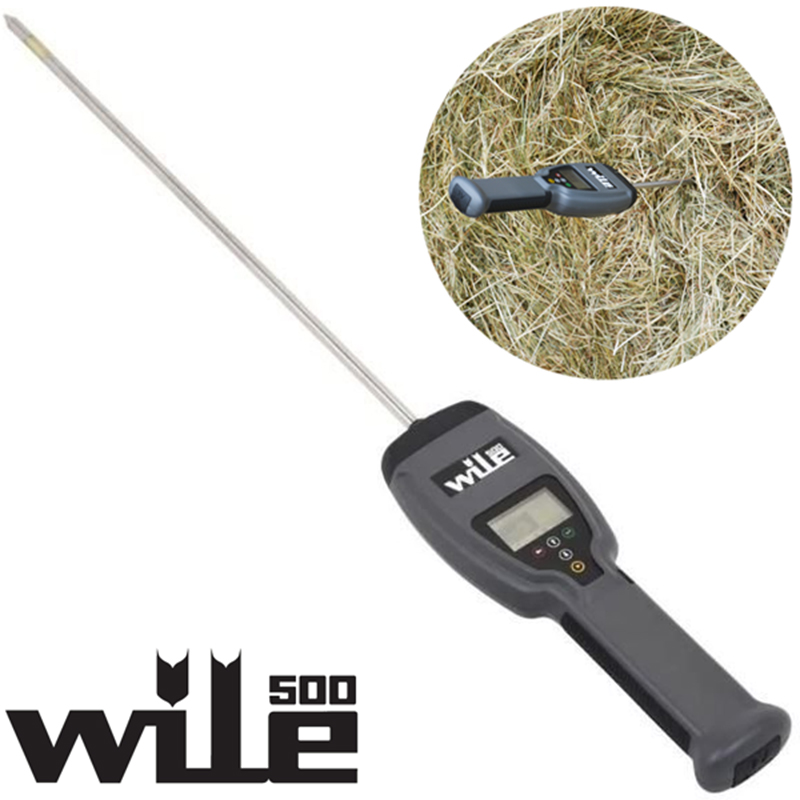

Farmcomp Wile 500 Bale Grass, Straw, Alfalfa and Silage Temperature Moisture Meter

Farmcomp Wile 500 Bale Grass, Straw, Alfalfa and Silage Temperature Moisture Meter

• With Wile 500, you can measure the moisture content between %8 and %72, and the temperature range from -10°C to 88°C.

• By inserting the 50 cm probe into the pile you will measure at a 45-degree angle, you can easily take your measurement.

• The types you can measure with the Wile 500 roughage moisture meter device are; Grass, Grass silage, Straw, Straw silage, Corn silage, and Alfalfa.

• Thanks to the backlight on the device, you can easily see the measurement values in low-light environments.

• The Wile 500 has an automatic shut-off function. It can be set from the device menu as 30s, 1min, 5min, 10min, 20min.

• The device's large LCD screen allows you to easily read the values ​​in the measurements and does not strain your eyes.

• The device has an automatic moisture result update feature every time the probe is moved forward.

• The product to be measured must be selected from the device menu. Otherwise, the results will be incorrect.

• High-quality, durable, stainless steel probe ensures the durability of the Wile 500.

• You can perform the measurement with either °C / °F temperature units.

• Package contents: Wile 500, 9V battery, USB cable, User manual

• The device's menu interface is in TURKISH.

• There is 1 USB port.

• The higher the bale moisture, the more measurements are taken, and the more important it is to apply the temperature balance correctly.

Measurement Notes and Usage Warnings:

• Before measuring in bales with thick wrapping, the wrapping should be pierced with the probe tip. The force applied during this process will not affect the density measurement.

• The accuracy of moisture measurement can be negatively affected if there is a strong heating reaction (“sweating”) in the bale, the bale is spoiled, or the effects of preservatives are not fully balanced.

• The probe should be kept clean and dry. This hygiene is important for measurement accuracy.

• Other electronic devices that may be associated with the bale should be turned off during measurement. This prevents interference formation in the measurement.

Technical Specifications

• Temperature Measurement Range: -10 degrees ... +80 degrees (14 °F ... 176 °F)

• Temperature Balance: Semi-automatic, optional

• Moisture Measurement Range: %8 ... %80 = Grass silage, Straw: %8 ... %25 = Straw, Straw Silage: %30 ... %84, Corn Silage: %40 ... %76, Alfalfa: %8 .. %75 (weight percentage at 15 degrees temperature)

• Moisture Measurement Accuracy: %10 to %20: %1.4 – %20 to %30: %2 – %30 to %50: %4 – %50 to %70: %6

• Moisture Measurement Principle: Electronic impedance measurement

• Density Balance: Based on push force and motion measurement, automatic

• Probe Length: 50 cm

• Measurement Memory: Total of 1000 moisture or temperature results for 64 bales

• Operating Temperature: Handle/display: -10 degrees ... +50 degrees (14 °F ... 122 °F), Probe: -10 degrees ... +80 degrees (14 °F ... 176 °F)

• Reference Method for Determining Moisture: Oven drying method according to ISO 6496:1999, EY N: o 152/2009, with samples obtained using a core sampler drill from the depth of moisture measurement
