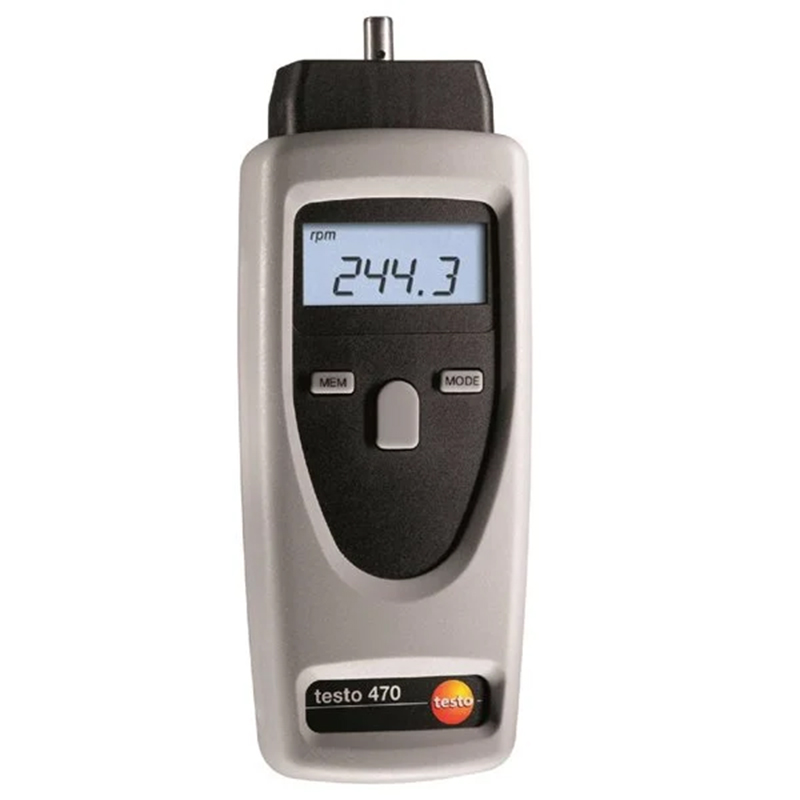

Testo 470 Contact Non-Contact Tachometer

Testo 470 Contact Non-Contact Tachometer

• Testo 470 contact non-contact rpm measurement device; Provides optical and mechanical measurement capability.

• By attaching a contact measurement apparatus to its optical sensor, contact measurement can be performed.

• For optical measurements; attaching a reflector (optional) to the object to be measured and holding the device over the reflector is sufficient.

• It has an easy-to-use feature.

• Thanks to its optical reader, non-contact measurement can be performed. By adhering the reflector tapes that come with it to the place you will measure, you can perform non-contact laser measurement from a distance.

• Measurements can be taken by making contact with the apparatuses that come in the box.

• It records average/maximum/minimum values as well as the last measurement value.

• In poor visibility conditions, it provides the ability to easily read measured values thanks to its illuminated display.

• Portable, meaning it can be used in all areas where rpm measurement is desired to be carried out. Motor rpm, rotating wheel rpm, etc...

• The SoftCase carrying case provided with the device protects it from impacts and ensures long usage duration.

TECHNICAL SPECIFICATIONS

• Operating Temperature and Humidity Range: 0°C . . . 50°C

• Display: LCD

• Dimensions: 175 x 60 x 28 mm

• Weight: 190 gr

• Power Source: 2 AA mini batteries

• Measurement Range:

  • Optical: 1 … 99,999 U/min

  • Mechanical: 0.1 … 19,999 U/min

• Resolution:

  • 0.01 U/min (1 … 99.99 U/min)

  • 0.1 U/min (100 … 999.9 U/min)

  • 1 U/min (1000 … 99,999 U/min)

• Accuracy: ±0.02% of measurement value

• Min/Max Feature: Available
