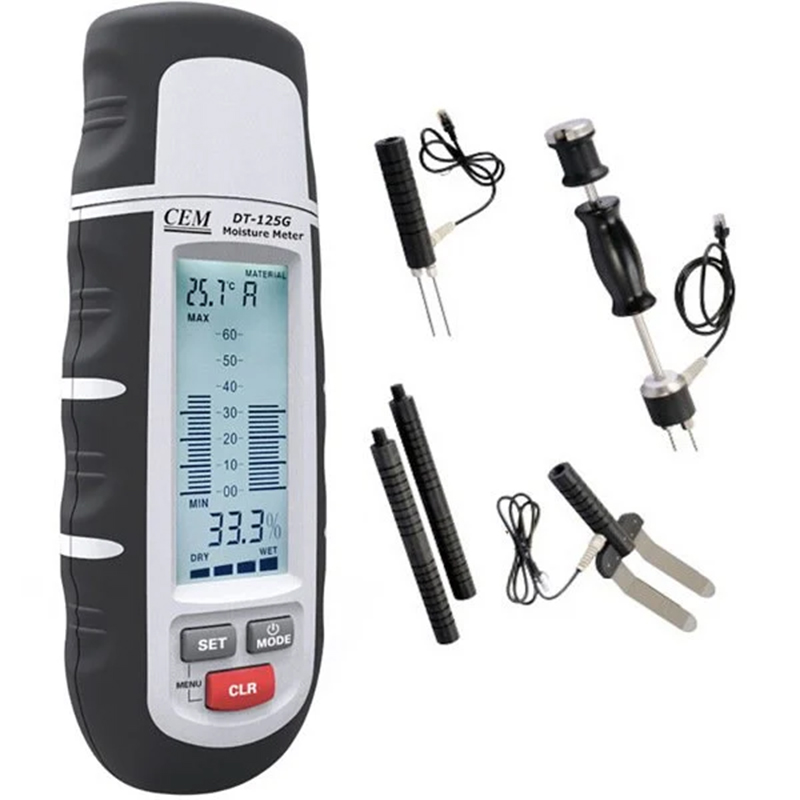

Cem DT 125G Pin-Type Wood and Building Material Moisture Meter Set

Cem DT 125G Pin-Type Wood and Building Material Moisture Meter Set

• Usage Purpose: Cem DT 125G, with its pin-type structure, is developed to measure the moisture content of wood and building materials.

• Display: Thanks to its wide and readable LCD screen, you can quickly see the measurement results.

• Graphical Display: Measurement results can also be displayed graphically on the device screen.

• Mode Selection: You can switch between Wood and Building Material modes with the help of the "MODE" button.

• Instant Temperature Tracking: The instant ambient temperature can also be displayed on the screen.

• Max/Min Tracking: The maximum and minimum values obtained during measurement can be tracked from the screen.

• Reset Function: You can reset the Max/Min values by pressing the "CLR" button.

• Accuracy Check: By switching to test mode, you can check its accuracy with the reference measurement value on the device cover.

• Various Probes: Measurements can be made on different surfaces and depths with different types of probes (probes are included in the box).

• Backlight: Thanks to the screen backlight, comfortable measurements can be made even in dark environments.

• Body Structure: Its durable hard rubber case protects the device against impact.

• Automatic Shutdown: It has an energy-saving automatic shutdown feature.

• Battery Warning: You can track the battery status with the low battery indicator.

TECHNICAL SPECIFICATIONS

• Wood Moisture Measurement Range: %1 (for 10 - 530 RH)

• Wood Moisture Sensitivity:

  • %2 (for 30 - 160 RH)

  • %4 (for 160 - 275 RH)

• Building Material Moisture Measurement Range: 2.4 - 10.5 RH

• Building Material Moisture Sensitivity: Not Specified

• Ambient Temperature Measurement Range:

  • -40 to -10 degrees and +40 to +70 degrees at ±2 degrees

  • -10 to +40 degrees at ±1 degree

• Ambient Relative Humidity Measurement Range: %50 - %100 RH

• Ambient Relative Humidity Sensitivity:

  • %15 (for 100 - 180 RH)

  • %3.5 (for 120 - 580 RH)

• Temperature Resolution: 0.1 degree

• Humidity Resolution: 0.1 %RH

• Display: Backlit LCD screen

• Materials Measurable: Wood and building materials

• Automatic Power Off: Approximately 3 minutes of inactivity

• Automatic Backlight Off: Approximately 10 seconds of inactivity

• Operating Temperature: 0 to +40 degrees

• Power Source: 3 x CR2032 battery

• Dimensions: 158 x 60 x 27 mm
