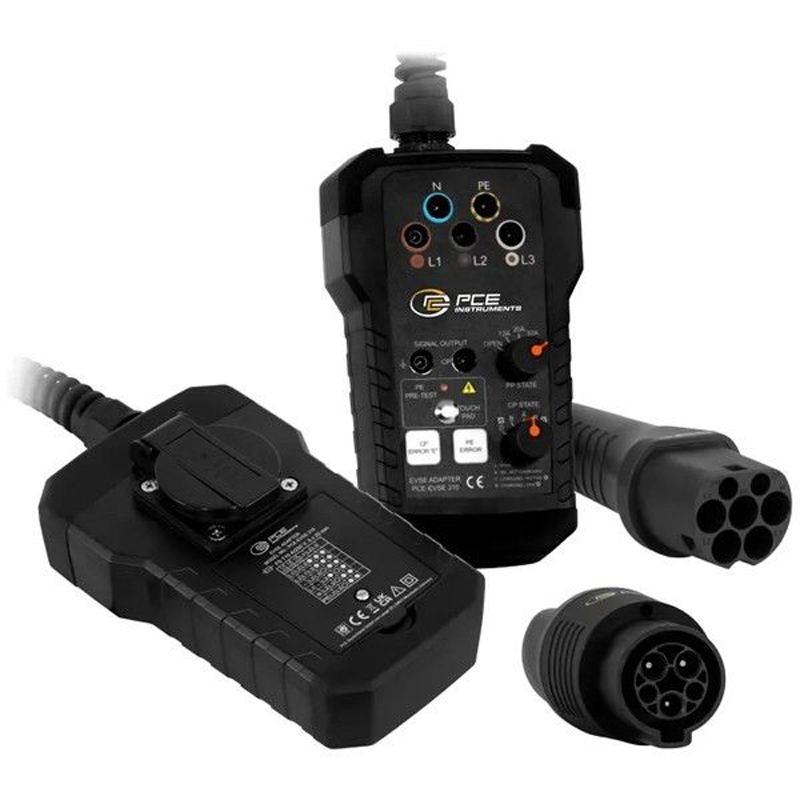

PCE-EVSE 310 EVSE adapter is a test equipment developed for VDE 0100 test devices to test charging stations (charging mode 3) for electric cars. It works compatibly with the installation tester PCE-ITE 55B and many other standard VDE 0100 test devices. Thanks to the LED indicators on the adapter, voltage detection is performed in three phases, quickly determining whether there is a fault in the installation.

• The PP State rotary switch can be used to simulate the current carrying capacity of the charging cable.

• The current carrying capacity is simulated with different resistances connected between the PP and PE conductors.

• Various vehicle states can be simulated with the CP State rotary switch. These states are achieved through different resistances connected between the CP and PE conductors.

• An external load can be connected to the network socket. This output is for measurement purposes only and allows checking the function of the electricity meter.

• Additionally, the adapter has the feature to simulate a PE fault (grounding fault).

• The product is delivered in an easy-to-use carrying case.

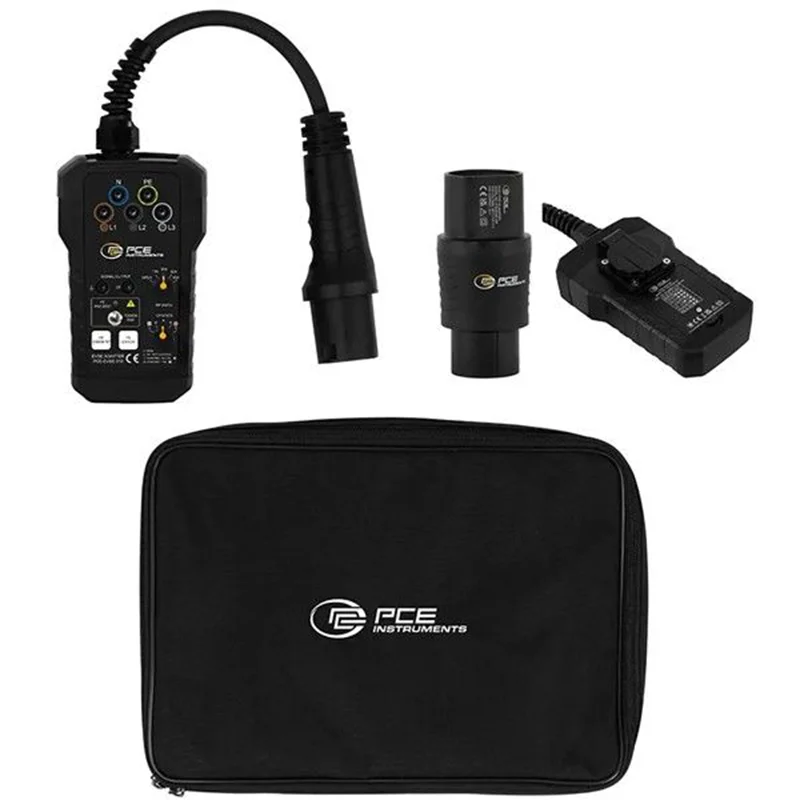

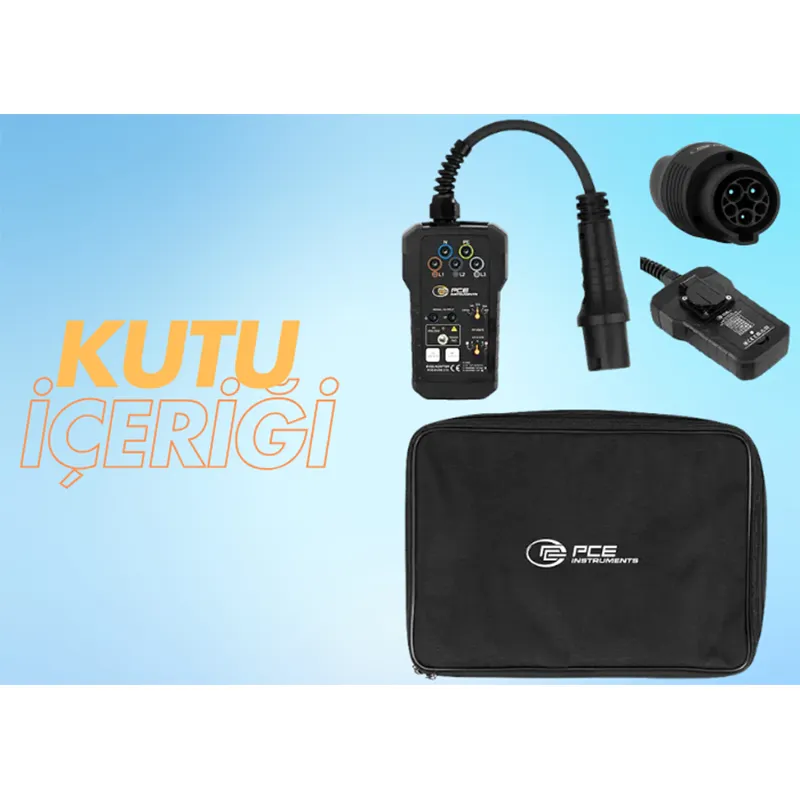

• Box contents: 1 x EVSE Adapter PCE-EVSE 310, 1 x Type 2 Adapter, 1 x Carrying Case, 1 x English User Manual.

• Type 2 adapter included; optional adapter can also be provided for wallbox with Type 1 connection.



TECHNICAL SPECIFICATIONS

• PE Pre-Test: Yes, with capacitive electrode

• PP Simulation: Open, 13 A, 20 A, 32 A, 63 A

• CP State: A, B, C, D

• CP Fault "E": E

• PE Fault / Grounding Fault: Yes

• Connections: L1, L2, L3, N, PE

• Connections Additional Info: Max. 230 V (1 phase) / 430 V (3 phase); 50 / 60 Hz | 10 A / 250 V | Type 2 adapter attached to cable | (Optional adapter required for Type 1)

• Standards: IEC 62196-2 Type 2 adapter

• Cable Length: 25 cm

• Safety Standard: CAT II / 300 V

• Network Socket: Max. 250 V; 50/60 Hz; 10 A

• Fuse: Network socket T10A/250 V

• Protection Class: IP40

• Weight: 643 grams

• Dimensions: 600 x 105 x 73 mm

• Operating Conditions: 0°C ... 40°C, 80% humidity (n.o)

• Storage Conditions: -10°C ... +50°C, 80% humidity (n.o)

• Package Contents: 1 x EVSE Adapter PCE-EVSE 310, 1 x Type 2 Adapter, 1 x Carrying Case, 1 x English User Manual
