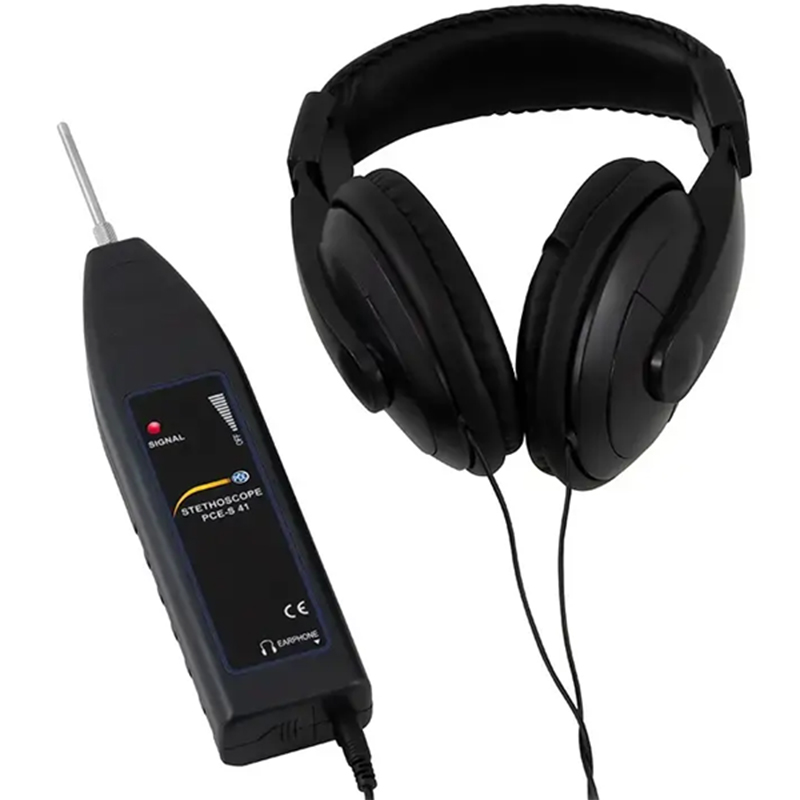

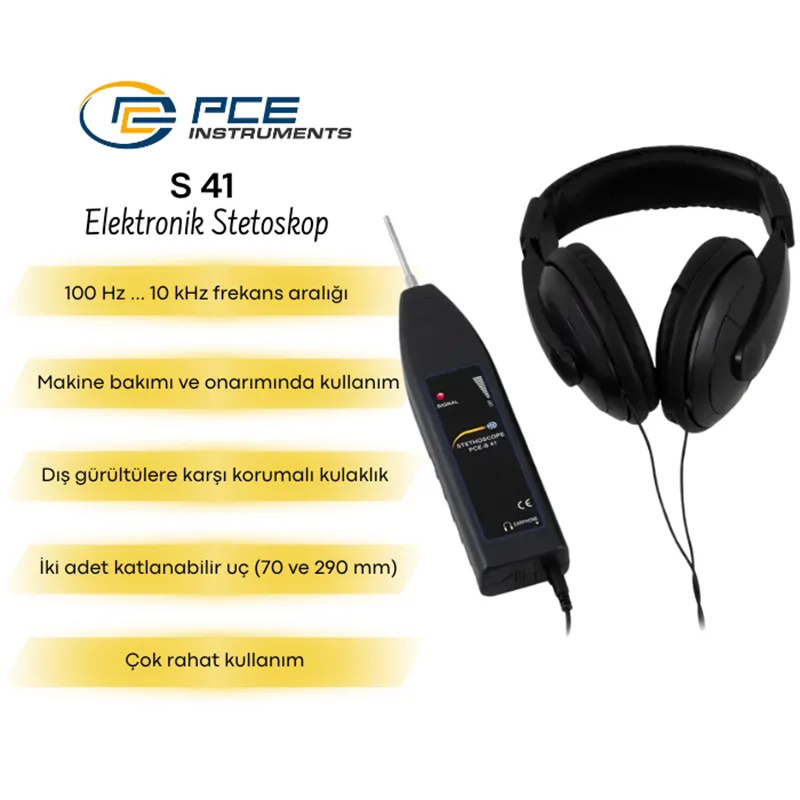

Notify me when its in stockPCE-S 41 is an electronic stethoscope with headphones used in machine and engine maintenance to detect abnormal sounds in internal mechanisms. This device transmits the sounds heard more clearly and loudly, allowing maintenance personnel to perform more precise analysis at the listening point.
This battery-operated device is portable and easy to use.
It detects sounds in machine parts such as gears, valves, ventilation ducts, and pumps, enabling the early detection of vibration and sound-related issues. This helps prevent costly breakdowns.
The stethoscope, which can detect frequencies in the range of 100 Hz … 10 kHz, can identify problems in systems operating at both low and high frequencies:
Low-frequency sounds: Motor hum, bearing failure, resonances
High-frequency sounds: Friction, lack of lubrication, minor mechanical failures
The device features piezoelectric sensor technology capable of detecting mechanical vibrations that the human ear cannot normally hear.
Its body is made of ABS plastic, offering a lightweight and ergonomic design.
Adjustable 2-meter long headphone cable provides the user with freedom of movement.

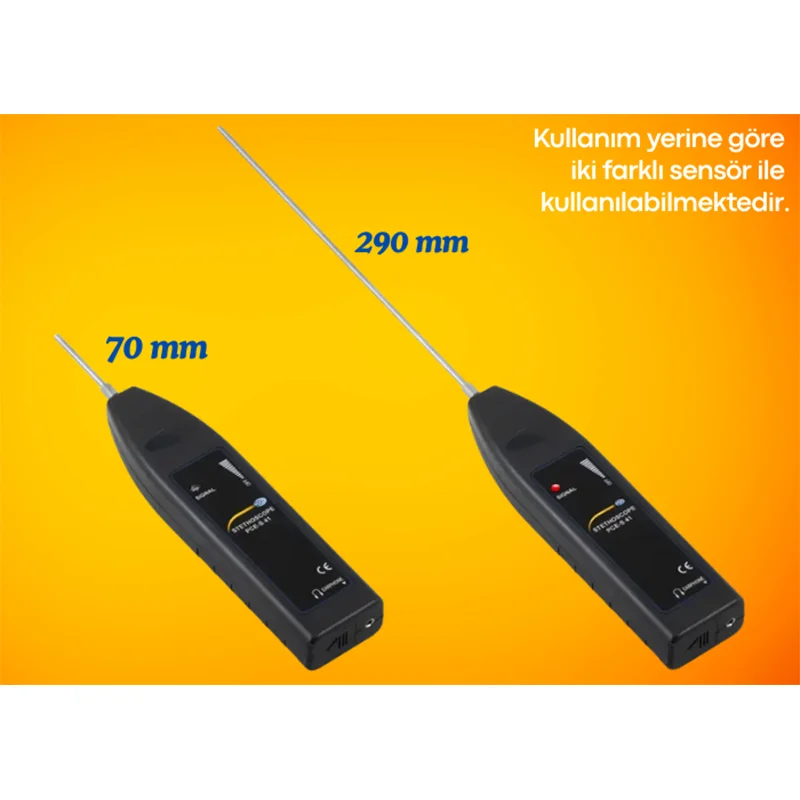

The device comes with two sensors of different lengths (70 mm and 290 mm), allowing measurements in both narrow and hard-to-reach areas.
The stethoscope detects sounds such as "clicking" at high frequencies or "humming" at low frequencies, enabling early diagnosis of faults and facilitating preventive maintenance.
Technical Specifications:
Box Contents
1 x PCE-S 41 electronic stethoscope
1 x Adjustable headphones
1 x 70 mm sensor
1 x 290 mm sensor
1 x 9 V block battery
1 x Carrying case
1 x User manual
