Notify me when its in stockTesto 565i is a new generation vacuum pump with 10 CFM capacity that automatically performs the evacuation process in heat pumps and cooling systems.
With automatic vacuum control, live data tracking, and user-friendly design, it offers both precision and efficiency.
High Performance: Ideal for powerful vacuum applications with a flow rate of 10 CFM (283 l/min).
Fully Automatic Evacuation: The device stops automatically when the target vacuum value is reached and the vacuum retention test begins. Leak data is recorded, ensuring reliability.
Live Monitoring and Reporting: With the Testo Smart App, device configuration, live measurement tracking, and report sharing can be performed.
Bluetooth Connection: Automatically pairs with Testo measurement devices and the mobile app when turned on.
Graphical Data Tracking: Evacuation progress can be monitored graphically through the app. All measurement data can be recorded and reported.
Wide Compatibility: Compatible with A2L and A3 class refrigerants, ensuring maximum safety.
User-Friendly Design: Offers comfortable use with an ergonomic handle, easy oil change mechanism, and viewing glass.
Check Valve Assurance: Prevents vacuum loss during power outages, ensuring uninterrupted operation.
Industrial Reliability: Offers high accuracy and reliability for many applications, especially cooling and heating systems.

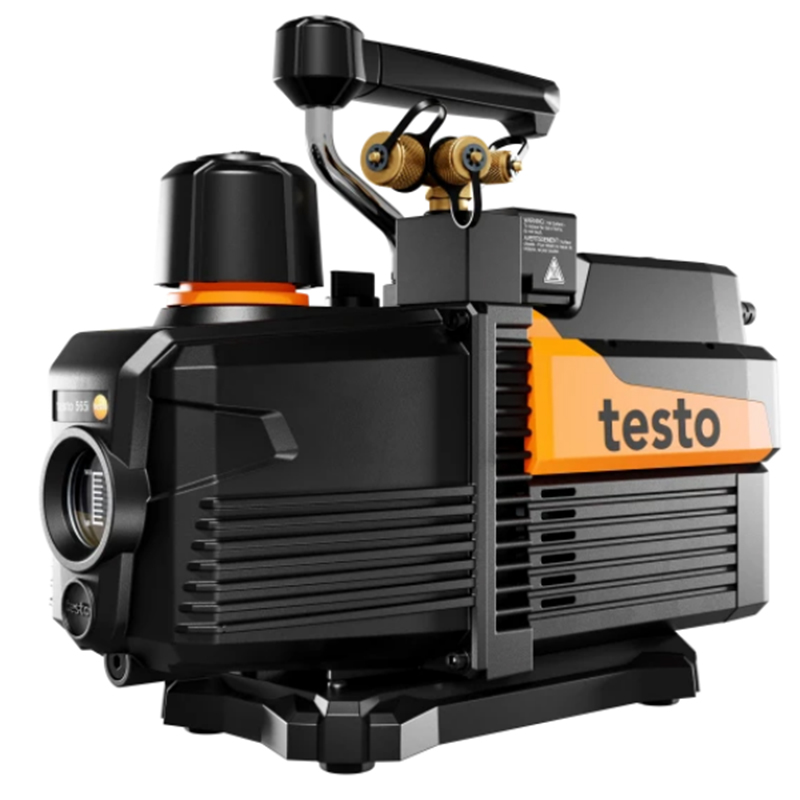

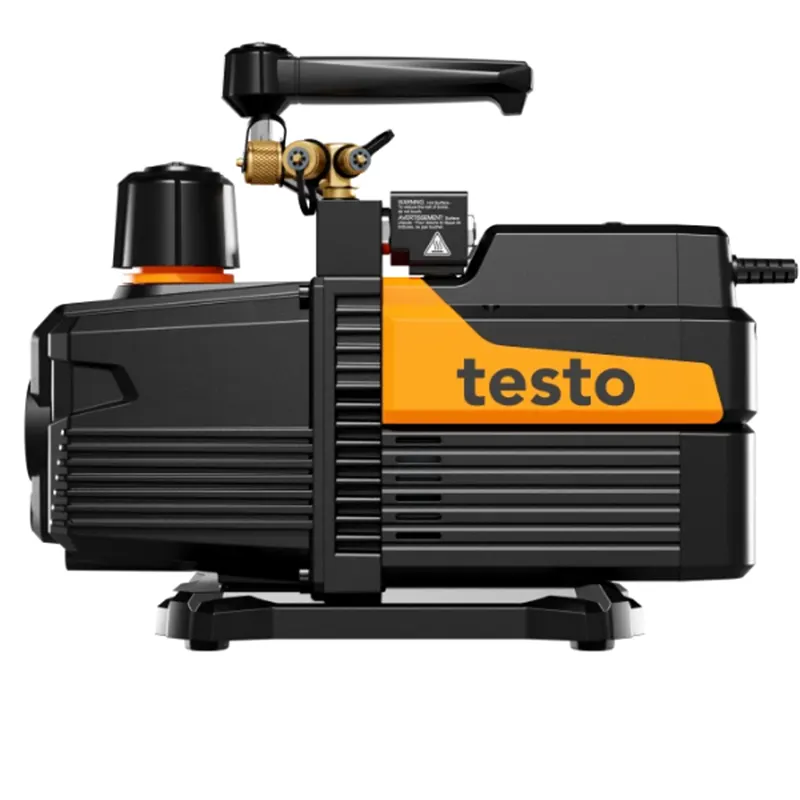

Testo 565i smart vacuum pump
Oil bottle
Manufacturer test protocol
User manual
Flow Rate : 10 CFM (283 liters/minute)
Pump Type : Rotary vane, two-stage
Connection Types : 1/4 SAE, 3/8 SAE, 1/2 SAE
Connection Interface : Bluetooth 5.0 (up to 30 meters connection distance)
Oil Compatibility : ISO VG 46
Minimum Pressure Value : 15 microns
Refrigerant Compatibility : A2L / A2 / A3 certified
Device Weight : 13 kg
