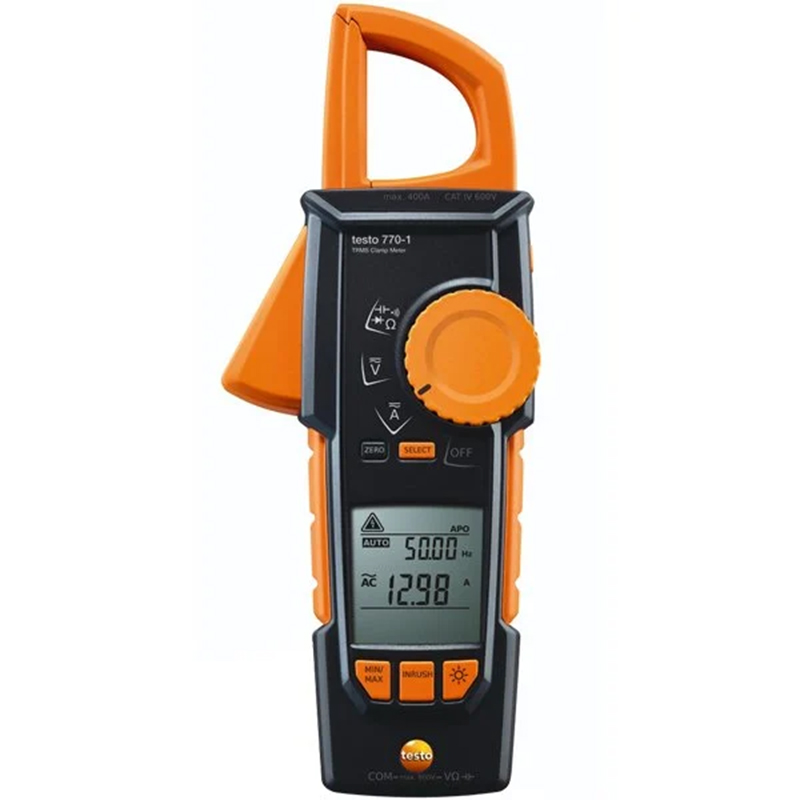

Testo 770-1 Clamp Meter

Product Code : 0590 7701
Free Shipping
%0
11,766 TL
11,766 TL
9,805 TL + VAT

Out Of Stock

Notify me when its in stock
  • Şalt dolabı kablo kontrolü yapan elektrikçilere uygun
  • AC ve DC akım ölçüm aralığı 400 A, hassasiyet ±2 %+5 Digit
  • 2 satırlı LCD ekran düşük ışıkta ölçüm verisi gösterir
ProductFeatures
Depth(cm)
9.6
Height (cm)
4.3
Width (cm)
24.3
Weight
0.378

Testo 770-1 Clamp Meter

  • The Testo 770-1 clamp meter allows you to measure current without contact on tightly packed power cables or conductors.

  • Thanks to its unique gripping mechanism, it can grasp each cable easily and securely.

  • It automatically determines and selects other electrical parameters such as AC/DC and resistance, continuity, diode capacitance.

  • With its large 2-line LCD screen, you can easily read measurement data in low-light environments.

  • You can also use the Testo 770-1 clamp meter for inrush current measurement.

  • For maximum flexibility, the clamp arm of the device can be completely retracted.

  • You can easily capture tightly packed cables in switch cabinets without any hassle.

  • The use of Testo 770-1 clamp meter is very easy and reliable.

  • AC Current Measurement Range: 400 A

  • AC Current Accuracy: ± (2 % of the measurement value + 5 Digits)

  • AC Current Resolution: 0.1 A

  • DC Current Measurement Range: 400 A

  • DC Current Accuracy: ± (2 % of the measurement value + 5 Digits)

  • DC Current Resolution: 0.1 A

  • AC Voltage Measurement Range: 4,000 V / 40.00 V / 400.0 V / 600 V

  • AC Voltage Accuracy: ± (1.0 % of the measurement value + 3 Digits)

  • AC Voltage Resolution: 1 mV / 10 mV / 100 mV / 1 V

  • DC Voltage Measurement Range: 400 mV / 4,000 V / 40.00 V / 400.0 V / 600 V

  • DC Voltage Accuracy: ± (0.8 % of the measurement value + 3 Digits)

  • DC Voltage Resolution: 1 mV / 10 mV / 100 mV / 1 V

  • Capacitance Measurement Range: 51.20 nF / 512.0 nF / 5.120 µF / 51.20 µF / 100.0 µF

  • Capacitance Accuracy: ± (1.5 % of the measurement value + 5 Digits)

  • Capacitance Resolution: 0.01 nF / 0.1 nF / 0.001 µF / 0.01 µF / 0.1 µF

  • Resistance Measurement Range: 400.0 Ohm / 4.000 kOhm / 40.00 kOhm / 400.0 kOhm / 4.000 MOhm / 40.00 MOhm

  • Resistance Accuracy: ± (1.5 % of the measurement value + 3 Digits)

  • Resistance Resolution: 0.1 Ohm / 1 Ohm / 10 Ohm / 100 Ohm / 1 kOhm / 10 kOhm

  • Frequency Measurement Range: 99.99 Hz / 999.9 Hz / 9.999 kHz

  • Frequency Accuracy: ± (0.1 % + 1 Digit)

  • Frequency Resolution: 0.01 Hz / 0.1 Hz / 1 Hz

  • Diode Test: Yes

  • Continuity Test: Yes

  • Display Illumination: Yes

  • Min/Max Feature: Yes

  • Hold Feature: Yes

  • Operating Temperature: -10 degrees … +50 degrees

  • Display Count: 4,000

  • Storage Temperature: -15 degrees … +60 degrees

  • Dimensions: 243 x 96 x 43 mm

  • Weight: 378 g
