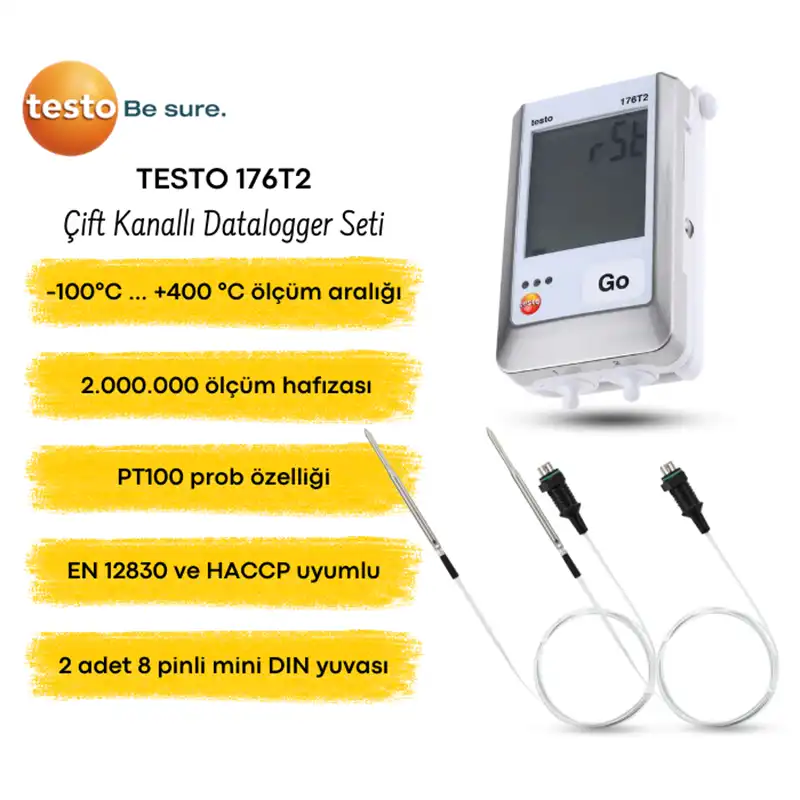

Testo 176T2 Double Channel Temperature Datalogger Set
The Testo 176T2 dual channel temperature datalogger set offers a wide measurement range from -100°C to +400°C. Thanks to externally connectable PT100 probes, it allows precise measurement and recording of temperature values from two different environments simultaneously.
- Testo 176T2 is a professional data logger designed for high-precision temperature measurement and long-term data recording.
- Its dual-channel capability enables simultaneous temperature logging from two separate locations.
- The device can accurately measure extreme temperatures from -100°C to +400°C.
- Included PT100 probes measure temperatures ranging from -85°C to +150°C.
- With up to 8 years of battery life and a 2 million data record capacity, it ensures long-term, maintenance-free reliable use.
- Helps efficiently manage temperature controls in food safety, pharmaceutical storage, laboratory research, industrial, and logistics sectors.
- Wide memory, long battery life, and high measurement accuracy make it a reliable solution for all applications where temperature monitoring is critical.
- Current measurement values, set limits, min/max values, limit exceedances, and remaining battery life can be monitored live via the device display.
- Data is automatically backed up when the battery runs out or is replaced, preventing data loss.
- Complies with DIN EN 12830 standard and is HACCP certified.
- Battery life: up to 8 years with 15-minute measurement intervals at +25°C (may vary depending on use).
- Data transfer can be done on-site without removing the device via the SD card slot, facilitating easy field use.
- Free ComSoft Basic software allows basic analysis; optional ComSoft Professional offers advanced analysis features.
- Device can be wall-mounted and secured with the included mounting bracket and lock.

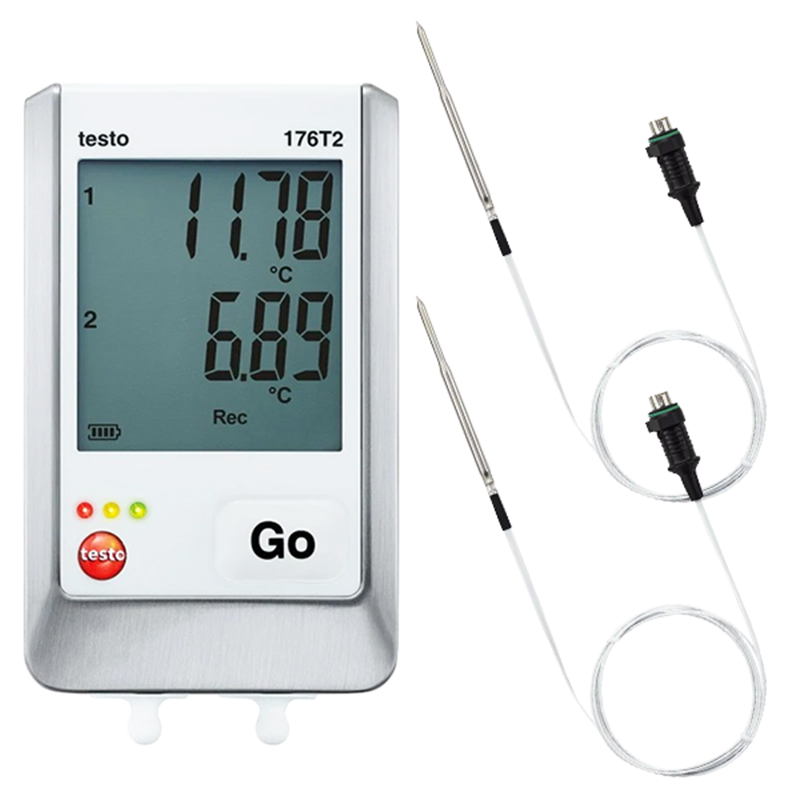

- Package Contents: Testo 176T2 device, 2 PT100 probes, wall mounting bracket, lock, 5-pin mini USB-B cable, battery. (Note: SD card not included.)
Technical Specifications
- Temperature Measurement Range: -100°C to +400°C
- Temperature Accuracy: ±0.3°C (+200.1°C to +400°C) ±1 digit / ±0.2°C (-100°C to +200°C) ±1 digit
- Temperature Resolution: 0.01°C
- Connectable Probes: 2 x PT100 temperature probes

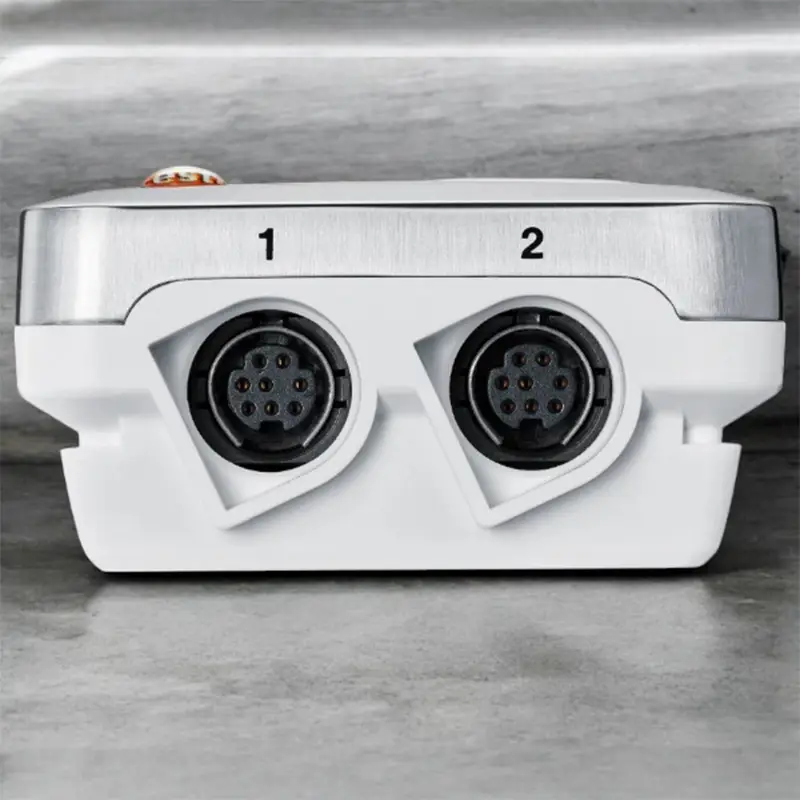

- Probe Connection Type: 8-pin mini DIN
- Memory Capacity: 2,000,000 data records
- Interface: 5-pin mini USB-B, SD card slot
- Adjustable Logging Interval: 1 second to 24 hours (online measurement: 2 seconds to 24 hours)
- Alarm Feature: Visual alarm only
- Protection Class: IP65
- Display: LCD
- Storage Temperature: -40°C to +85°C
- Dimensions: 103 x 63 x 33 mm
- Weight: 220 g
- Battery Life: Up to 8 years (with 15-minute logging interval at +25°C)
- Power Supply: 1 x AA Mignon battery 3.6 V (Lithium, TL-5903)
- Standards: EU Directives 2014/30/EU, 2011/65/EU; DIN EN 12830
PT100 Probe Technical Specifications
- Temperature Measurement Range: -85°C to +150°C
- Temperature Accuracy: Class A
- Response Time: t90 ≈ 5 seconds
- Cable Length: 2 meters
- Probe Shaft Diameter: 5 mm
- Probe Tip Diameter: 3.6 mm
- Probe Shaft Length: 90 mm
- Probe Tip Length: 30 mm
- Protection Class: IP54
- Connection Type: 8-pin mini DIN
