Testovent 417 Funnel Set, For Volumetric Flow Measurement

Testovent 417 Funnel Set | For Volumetric Flow Measurement

Testovent 417 funnel set is a practical solution designed to accurately measure air flow velocities and volumes in ventilation systems.
It allows you to easily measure the volumetric flow at ventilation grilles and plate outlets without the need for complex calculations.

General Features

• Accurate and easy measurement: Measuring air flow velocities and calculating volumetric flow is generally difficult. This set, when used with appropriate measuring devices, provides accurate and suitable measurements.

• Saves time: Using a funnel significantly reduces measurement time by eliminating the need for manual averaging.

• Dual-purpose use: The set includes two different funnels; one is specially designed for ventilation grilles and the other for plate outlets.

• Portable design: Thanks to its practical design, both funnels can be easily carried in the field.

• Flow direction detection: In addition to measuring flow velocity, it also detects the direction of air flow.

• Suitable for outlets up to 300 x 300 mm.

Technical Specifications

• Application Area: Ventilation grilles and plate outlets

• Measurement Function: Air flow velocity and volumetric flow measurement

• Funnel Types:

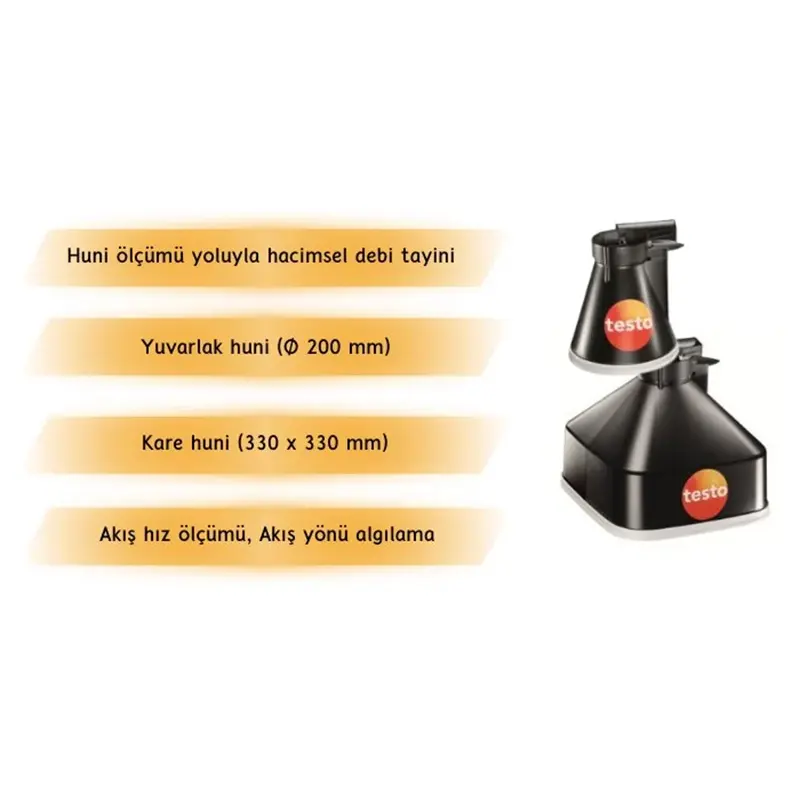

  • Square Funnel: 330 x 330 mm (For ventilation grilles)

  • Round Funnel: Ø 200 mm (For plate outlets)

• Compatible Device: Suitable for use with Testo 417 or similar air flow measurement devices

• Maximum Outlet Size: 300 x 300 mm
