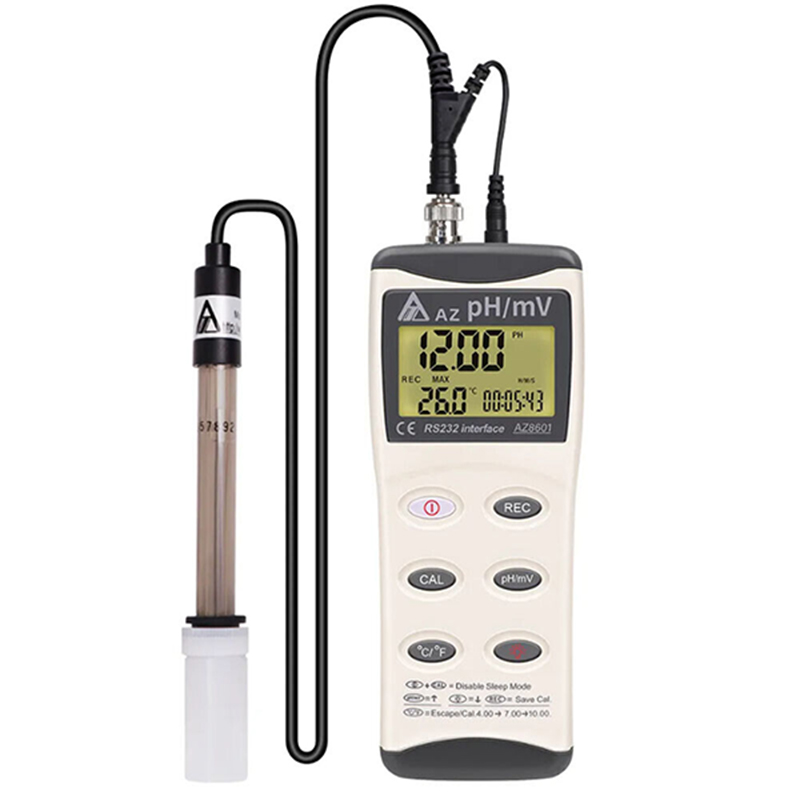

Notify me when its in stockThe AZ8601 measuring device is a compact and reliable device with a BNC connection, allowing you to quickly and accurately measure pH and mV (oxidation-reduction potential) values.
With its advanced sensor structure and easy calibration feature, it offers consistent performance in all conditions, from laboratory environments to the field.
Its single-probe ergonomic design makes the measurement process extremely practical.
The portable AZ8601 device is used for measuring pH and oxidation-reduction potential (mV) and is commonly preferred in water quality testing applications.

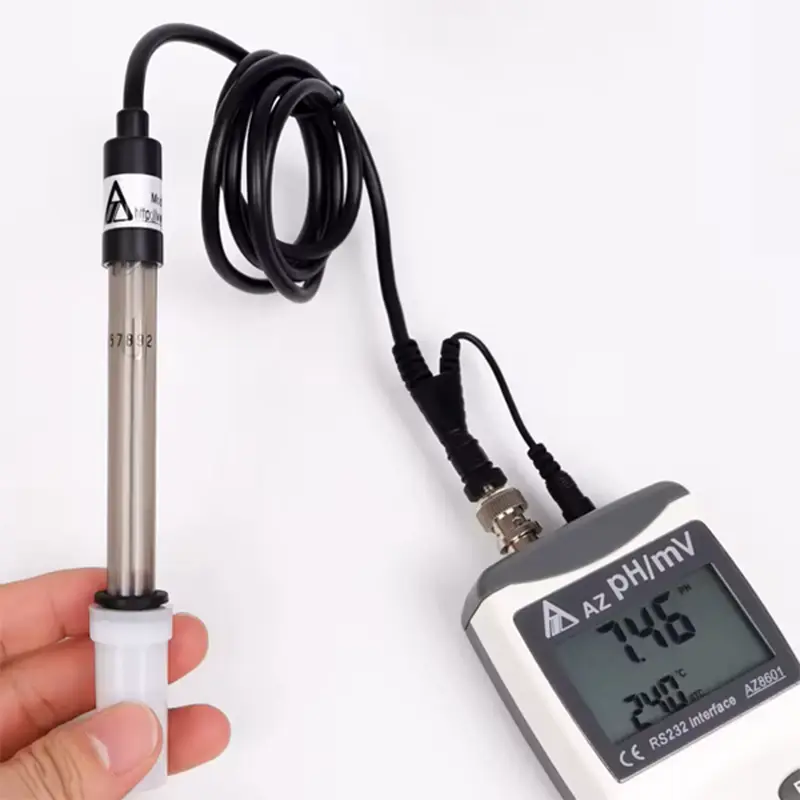

The probe connection is BNC connector. External, BNC input other pH probes of the AZ Instrument brand can also be used.

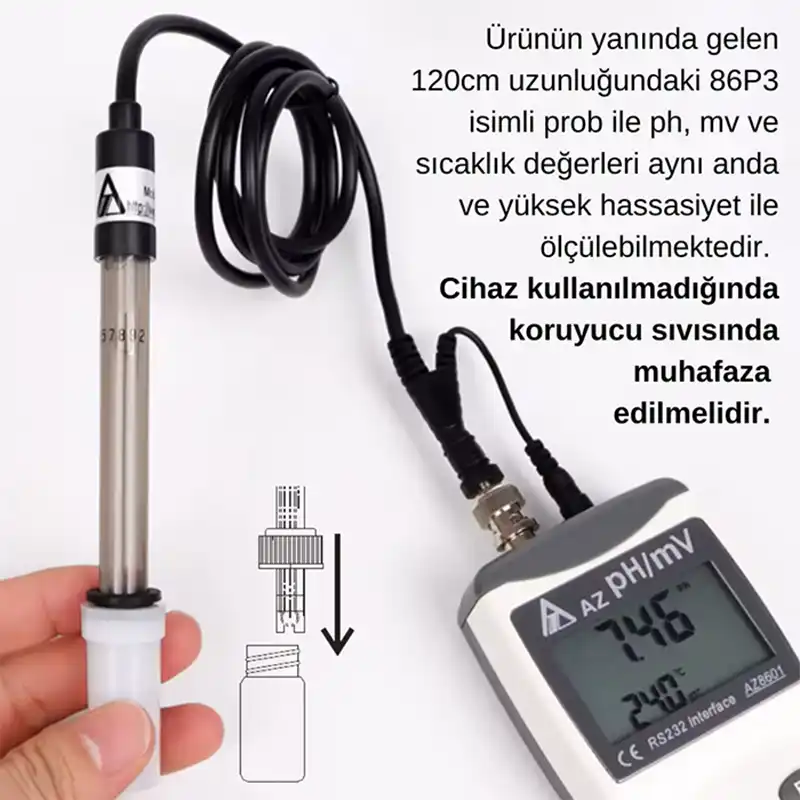

The device can also measure temperature through the same probe. The temperature probe's jack connection is attached to a separate input next to the BNC input, and the temperature value can be read from the screen.
Thanks to the feature of being able to perform automatic calibration with a single touch up to five points, highly accurate results are obtained.
Calibration values can be adjusted by the user to suit different applications.

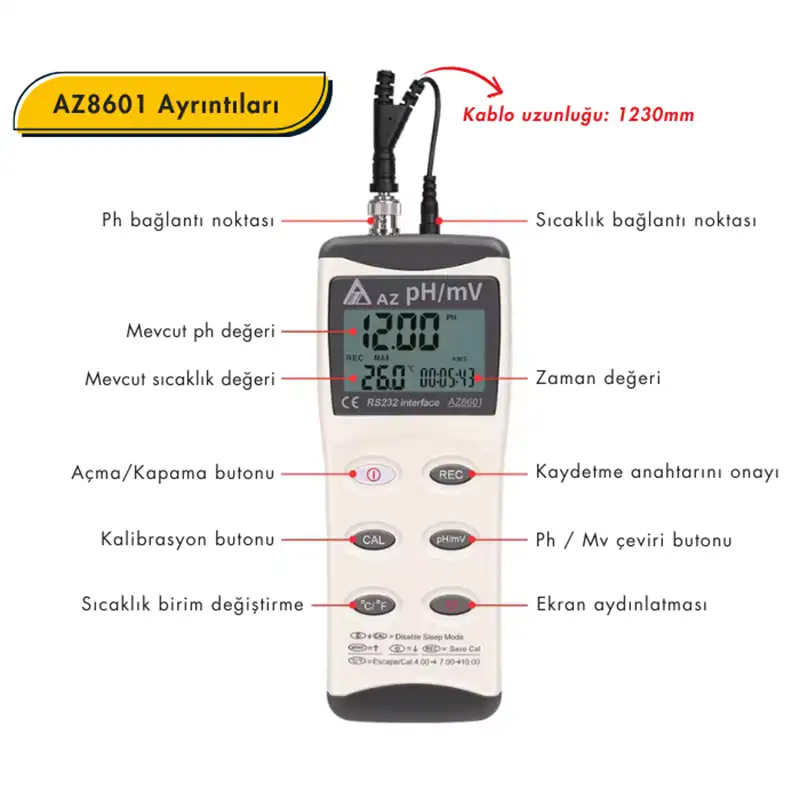

The device simplifies and accelerates the measurement process with its dual-screen feature, showing pH/mV and temperature values simultaneously.
The automatic pH buffer recognition function minimizes calibration errors.
The ability to examine the maximum and minimum values of recorded measurement data makes data tracking easier.
In long-term use, the ability to operate with an adapter provides additional comfort. The product package does not include an adapter; use with a 9 V external adapter is possible.
For battery saving, there is an automatic shutdown feature when not in use.
AZ8601 is suitable for professional water quality testing needs in laboratories, water treatment plants, aquaculture, swimming pools, and similar environments.
pH Measurement Range: 0.00 ... 14.00 pH
pH Accuracy: ±0.02 pH
pH Resolution: 0.01 pH
pH Calibration: Three points (4, 7, and 10)
mV Measurement Range: -499 ... 499 mV
mV Accuracy: ±0.2 mV (±0.1 ... 195.0) / ±2 mV (±190 ... 499)
mV Resolution: ±0.1 mV (±0.1 ... 195.0) / ±1 mV (±190 ... 499)
Temperature Measurement Range: 0°C ... 50.0°C
Temperature Accuracy: ±0.3°C
Temperature Resolution: 0.1°C
Operating and Storage Conditions: Temperature 0 ... 50°C, Humidity < 80%
Weight: 150 grams
Power Source: 1 x 9 V battery
Package Contents: Device, cabled 86P3 probe, battery, English user manual, plastic carrying case, calibration solutions (pH 4, 7, and 10)
Display Size: 50 × 29 mm
Probe Code (Probe on device): 86P3
