PCE GM 60 Plus Glossmeter, Gloss Measurement Device

Product Code : gm60plus
Free Shipping
%0
28,419 TL
28,419 TL
23,682 TL + VAT

Out Of Stock

Notify me when its in stock
  • 60° açıyla ölçüm, ISO 2813, GB/T 9754, ASTM D523 standartları
  • D65 ışık kaynağı, CIE C altında insan gözü algısına yakın ölçüm
  • 16 cm genişlik, 7,5 cm derinlik, 9 cm yükseklik
ProductFeatures
Depth(cm)
7.5
Height (cm)
9
Width (cm)
16
Weight
0.35
ComplementProducts

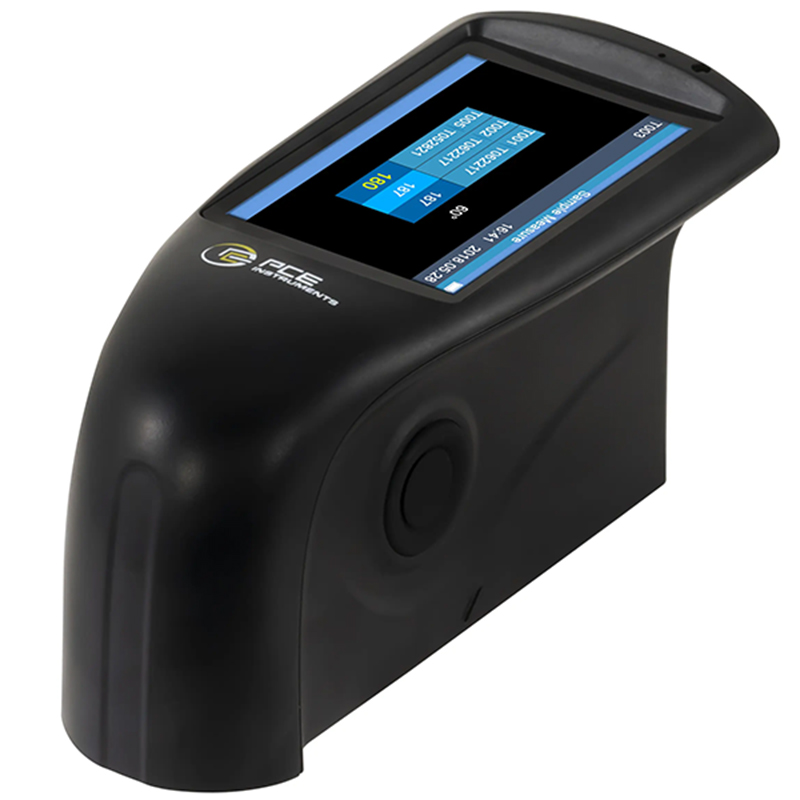

PCE-GM 60Plus Glossmeter Gloss Measurement Device

The PCE-GM 60Plus glossmeter is a device that can measure gloss by determining how much light is reflected from any material surface. This measurement is conducted based on the amount of light reflected at a specific angle to the surface, and the results are expressed in GU (Gloss Unit).

  • The device illuminates surfaces at a standard 60-degree angle and uses a sensor to detect the reflected light and measure the gloss level.

  • Measurements are conducted using methods that comply with international standards like ISO 2813, GB/T 9754, ASTM D523, and ASTM D2457. These standards define the criteria related to the accuracy of gloss measurement, angle selection, and evaluation of results.

  • It offers a user-friendly experience thanks to its 3.5-inch TFT touch screen.

  • The device performs measurements in accordance with the CIE C light source and the CIE 1931 (2 degrees) observation angle. This ensures that the measurement results are closer to the colors perceived by the human eye.

  • The D65 light source used simulates the lighting conditions closest to natural daylight. Thus, accurate and internationally standardized gloss values are obtained.

  • The device, with a gloss measurement accuracy of ±1.5 GU, is quite sufficient for general and semi-professional use.

  • When the device is turned on, it automatically calibrates itself thanks to the special calibration plate on it and becomes ready for precise measurement.

  • To obtain accurate results, the protective cap must be attached before the device is operated. After calibration is completed, measurement can proceed.

  • The PCE-GM 60Plus glossmeter is frequently preferred in quality control processes to ensure visual consistency of products during production.

  • It is used especially for measuring gloss levels of automotive, furniture, wood, plastic, paper, and metal surfaces.

  • Using a glossmeter provides important quality assurance for companies that want to offer a consistent appearance, consistent quality, and reliable products in production.

  • Measurement Range: 0 ... 200 GU

  • Accuracy: ±1.5 / ±1.5%

  • Measurement Geometry: 60 degrees

  • Display: 3.5-inch TFT touch screen

  • Standards: ISO 2813, GB/T 9754, ASTM D523, ASTM D2457

  • Readability: 1 GU

  • Repeatability: ±1 GU

  • Colorimetry Standard: Corresponds to CIE C light source under CIE 1931 (2 degrees)

  • Measurement Area: 10 x 25 mm

  • Measurement Duration: 0.5 seconds

  • Dimensions: 160 x 75 x 90 mm

  • Weight: 350 grams

  • Menu Language: English, Chinese

  • Power Source: 3200 mAh lithium-ion rechargeable battery

  • Connection Type: USB, RS-232

  • Operating Temperature: 0 ... 40 degrees

  • Storage Temperature: -20 ... 50 degrees

  • Box Contents: PCE-GM 60Plus device, charging adapter, USB cable, calibration plate, user manual
