PCE MFM 3500 Gaussmeter, 30,000 Gauss, Wide Measurement Range

PCE-MFM 3500 Gaussmeter | 30,000 Gauss | Wide Measurement Range

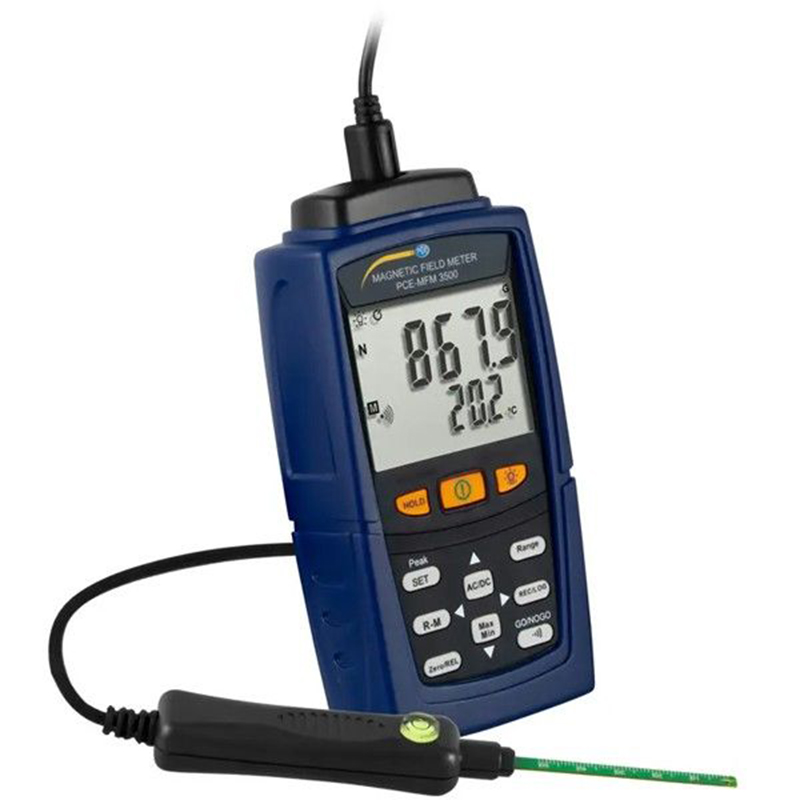

PCE-MFM 3500 is a high-precision and versatile gaussmeter model capable of measuring both static (DC) and alternating (AC) magnetic fields.
With a measurement capacity of 30,000 Gauss (3000 mT), it offers a wide measurement range and is designed for use in various fields from industrial applications to laboratory analyses.

• AC/DC magnetic field measurement: Measurement of static (DC) and variable (AC) magnetic fields can be done with the same device.

• Wide measurement range: Magnetic field measurements up to 30,000 Gauss / 3000 mT can be performed.

• High precision: With an accuracy of ±4% and ±5%, the resolution value can go up to 0.01 mT / 0.1 G depending on the application.

• External sensor: Thanks to the flat and removable sensor with a cable approximately 1 meter long, measurements can be easily made even in narrow spaces.

• Temperature measurement: It can measure temperature in the range of -20 °C to 50 °C, allowing the effects of environmental factors to be evaluated.

• Adjustable alarm function: Provides audio/visual alerts when the set limit is exceeded; ideal for production and safety applications.

• Internal memory and data transfer: Automatic recording capacity for up to 7000 measurements and manual capacity for up to 200 measurements. Data can be transferred to a computer via Mini USB.

• Software support: Measurement data can be monitored on the computer for graphical analysis via software.

• LCD screen: Numeric display up to 30,000 with a 5-digit clear display.

• Compact design and portability: Comes with a protective carrying case; suitable for field and laboratory use.

TECHNICAL SPECIFICATIONS

• DC MilliTesla (mT) Measurement Range: 300.00 mT, 2400.0 mT, and between 2000.1 and 3000.0 mT. There are resolution differences in these ranges.

• DC Gauss (G) Measurement Range: 3000.0 G, 20000 G, and between 20001 and 30000 G. Resolution values vary according to these ranges.

• DC Precision: ± (4% + 10 digits) for all values. Precision information above 2000 mT and 20001 G is not specified.

• DC Resolution: At 0.01 mT and 0.1 mT values; in Gauss, it is given as 0.1 G and 1 G.

• AC MilliTesla (mT) Measurement Range: 150.00 mT and 1500.0 mT. Resolution varies according to the measurement range.

• AC Gauss (G) Measurement Range: Ranges between 1500.0 G and 15000 G.

• AC Precision: Specified as ± (5% + 20 digits) for all values.

• AC Resolution: At 0.01 mT and 0.1 mT; in Gauss, it is 0.1 G and 1 G.

• Temperature Measurement Range: Between -20 °C and 50 °C.

• Temperature Precision: Given as ±1.0 °C.

• Temperature Resolution: 0.1 °C.

• Memory: 200 measurements in manual mode, 7000 measurements in automatic mode can be recorded.

• Interface: Has a Mini USB connection point.

• Measurement Direction: Transverse measurement is performed.

• Magnetic Field: The device can measure both static (DC) and alternating (AC) magnetic fields.

• Measurement Unit: Measurements are made in mT and Gauss (G) units.

• Automatic Shutdown: The device can be completely turned off or automatically shut down after 15 minutes.

• Dimensions: 156 x 73 x 35 mm.

• Display: Has a 5-digit LCD display and can show values up to 30000.

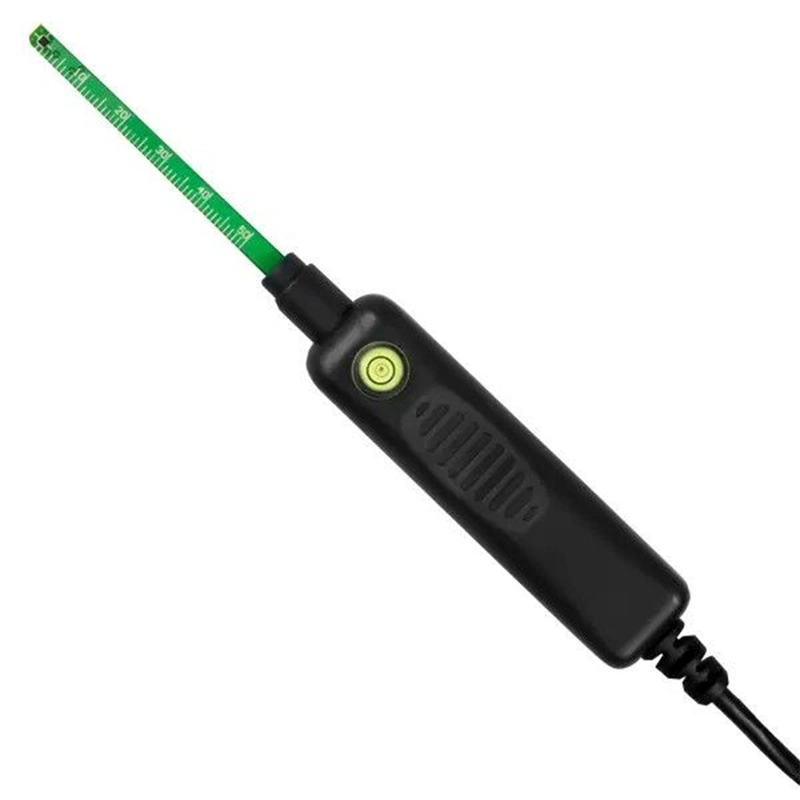

• Sensor: It is transverse, removable, and has a cable approximately 1 meter long.

• Operating Temperature: Between 5 °C and 40 °C.

• Storage Temperature: Should be between 0 °C and 50 °C.

• Operating Altitude: Can operate up to a maximum of 2000 meters.

• Weight: The device weighs 320 grams.

• Power Source: Operates with 6 pieces of 1.5 V AAA batteries.

BOX CONTENTS

• 1 x PCE-MFM 3500 Gaussmeter

• 1 x External measurement sensor

• 1 x Mini USB cable

• 1 x Software CD

• 6 x 1.5 V AAA batteries

• 1 x Power adapter

• 1 x Carrying case

• 1 x User manual
