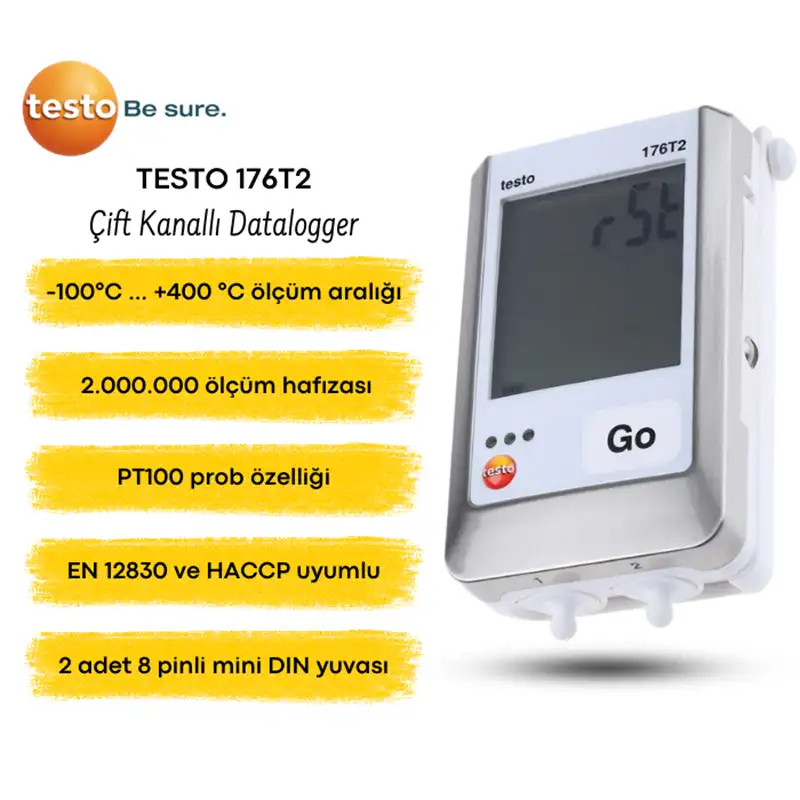

Testo 176T2 Dual Channel Temperature Datalogger Single Device

Testo 176T2 Dual Channel Temperature Datalogger Single Device

The Testo 176T2 dual channel temperature datalogger device has a wide measurement capacity ranging from -100 to +400 degrees.
Thanks to the externally connectable PT100 probes, you can accurately measure and record the temperature values of two different environments simultaneously.

• Testo 176T2 is a professional data logger designed for high precision temperature measurement and long-term data recording.

• Thanks to its dual channel structure, it can simultaneously record temperature measurements from two different regions.

• The device can operate over a wide temperature range with the ability to measure between -100 degrees and +400 degrees.

• With a battery life of up to 8 years and a data recording capacity of 2 million entries, it provides long-term and reliable usage.

• It helps efficiently manage temperature controls in various sectors, such as food safety, pharmaceutical storage, laboratory research, industry, and logistics.

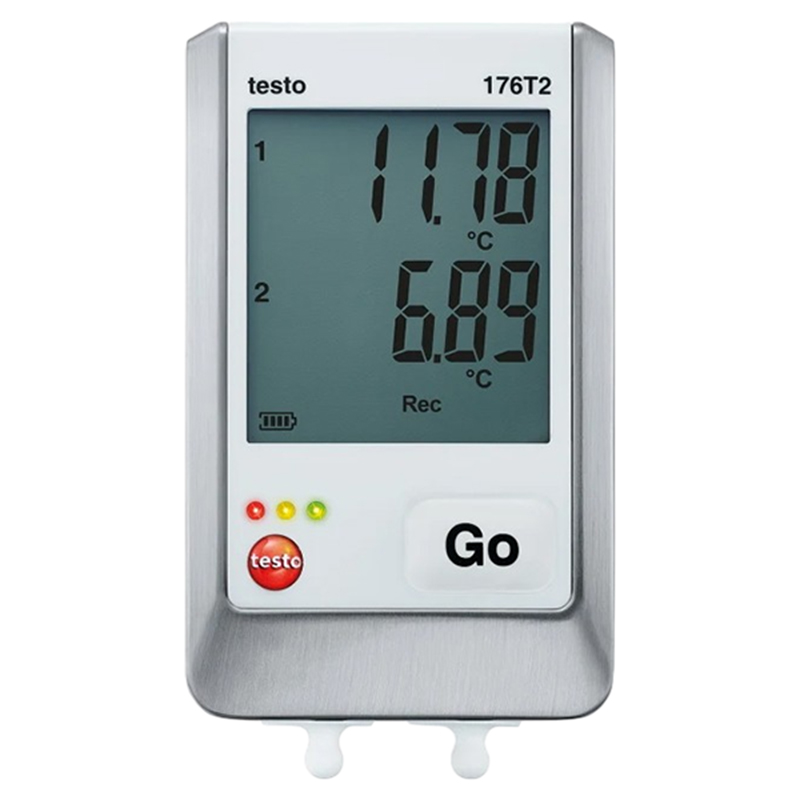

• Current measurement data, limit values, min./max. values, limit exceedance information, and battery status can be monitored in real-time on the device's screen.

• Measurement data is automatically backed up and not lost when the battery is depleted or replaced.

• It has been tested for compliance with HACCP standards according to DIN EN 12830.

• It offers an 8-year battery life with a 15-minute measurement interval at +25 degrees (may vary based on usage).

• Data can be easily transferred in the field with the SD card input option.

• The device can be programmed and basic analyses can be performed with the free ComSoft Basic software. ComSoft Professional software offers detailed analysis features.

• The device comes with a wall-mountable bracket and can be securely used by locking.

• The box includes the Testo 176T2, wall mounting bracket, lock, and battery. SD card and USB cable must be purchased separately.

• The device does not come with a PT100 probe. A probe with an 8-pin mini DIN type connector should be used for connection.

Technical Specifications

• Temperature Measurement Range : -100 degrees ... +400 degrees

• Temperature Accuracy : ±0.3 degrees (200.1 ... 400 degrees) ±1 digit / ±0.2 degrees (-100 ... 200 degrees) ±1 digit

• Temperature Resolution : 0.01 degrees

• Connectable Probes : 2 x PT100 temperature probe

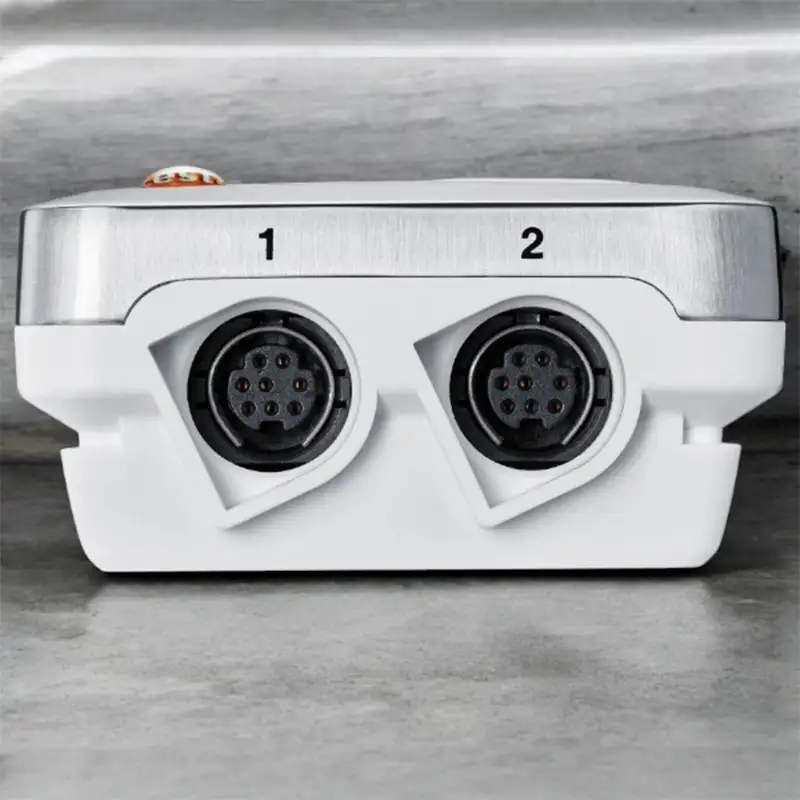

• Probe Connection Type : 8-pin mini DIN

• Memory Capacity : 2,000,000 data recording capacity

• Interface : 5-pin mini USB-B, SD card slot

• Adjustable Recording Intervals : 1 second - 24 hours (2 seconds ... 24 hours online measurement)

• Alarm Feature : Yes (visual alarm only)

• Protection Class : IP65

• Display : LCD

• Storage Temperature : -40 degrees ... +85 degrees

• Dimensions : 103 x 63 x 33 mm

• Weight : 220 grams

• Battery Life : 8 years (with 15-minute measurement interval, at +25 degrees)

• Power Source : 1 x AA mignon battery 3.6 V (lithium, TL-5903)

• Package Contents : Testo 176T2, wall mounting bracket, lock, battery

• Standards : EU Directives 2014/30/EU; 2011/65/EU; DIN EN 12830
