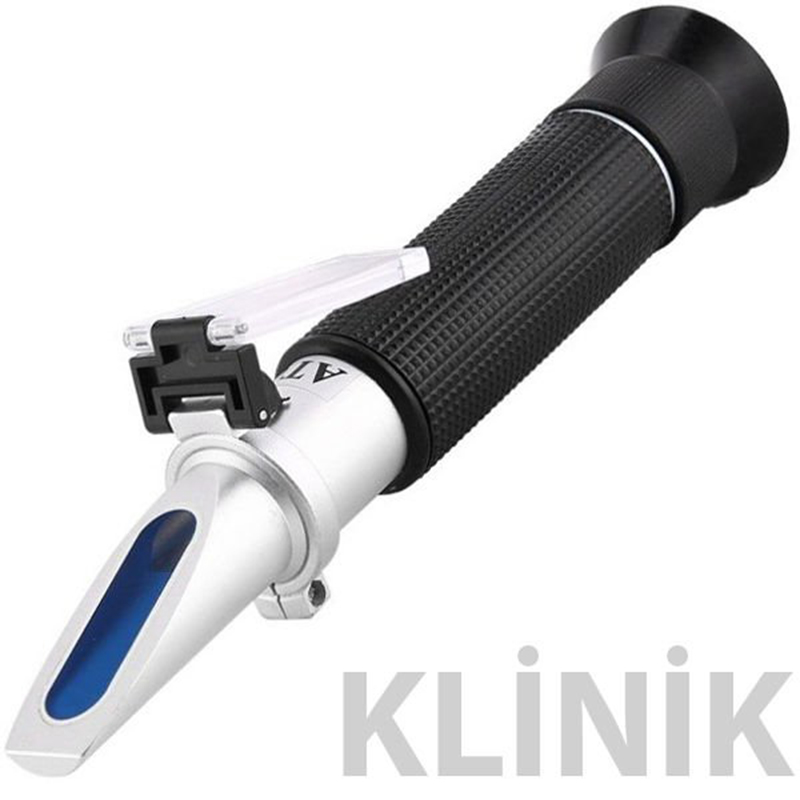

Loyka Clinical and Urea Refractometer

Loyka Clinical and Urea Refractometer

• Loyka clinical refractometer can measure urea, serum protein, and refractive index. This refractometer model is mostly used in health institutions, veterinary clinics, and laboratories.

• Loyka clinical refractometer measures urea in the range of (1000 . . . 1050 sg).

• This urea refractometer measures serum protein in the range of (0 . . . 12 gr/100ml).

• LOYKA Clinical refractometer measures refractive index in the range of (1333 . . . 1366 nD).

• SG (Specific Gravity) means density or "specific weight".

• This refractometer model is mostly used in health institutions, veterinary clinics, and laboratories.

• This refractometer device requires no power source and is very easy to use.

• To read the measurement results more comfortably, make sure the prism receives enough light.

• Zero adjustment is done with the calibration liquid that comes with the device, and clarity adjustment is done via the eyepiece.

• This refractometer has an ATC feature. ATC compensation range is 10°C to 20°C.

• The prism of the refractometer must be protected from shocks and scratches. With a scratch-free prism, you will always get clear results.

• For better and clearer results, the measuring prism should be cleaned with a soft cloth after each use.

• Accessories included with the refractometer are; calibration liquid, hard carrying case, small screwdriver for calibration, plastic dropper, cleaning cloth, and user manual.

HOW TO MEASURE?

• Hold the refractometer by its body so that the inclined prism at the tip, where the sample is dropped, faces the light source.

• With the cover closed, place the eyepiece to your eye and try to read the value on the measurement scale you see.

• If the values you see are not clear, turn the adjustment ring above the eyepiece to make the measurement scale clearer.

ZERO CALIBRATION:

• First, open the prism cover and drop 1-2 drops of distilled water on the inclined prism surface, then close the cover slowly.

• This will leave a thin layer of water between the prism surface and the cover.

• If the dark-light separation image around the zero line on the measurement scale is not clear;

• Adjust the calibration screw with a screwdriver until the dark-light separation aligns exactly with the zero line on the measurement scale.

TECHNICAL SPECIFICATIONS

• Measurement Range (Urea) : 1000 . . . 1050 sg

• Sensitivity (Urea) : 0.005 sg

• Measurement Range (Serum Protein) : 0 . . . 12 gr/100 ml

• Sensitivity (Serum Protein) : 0.2 gr/100 ml

• Measurement Range (Refractive Index) : 1333 . . . 1366 nD

• Sensitivity (Refractive Index) : 0.0005 nD

• ATC Feature : Yes

• Dimensions : 27 x 40 x 170 mm

• Weight : 125 gr.
