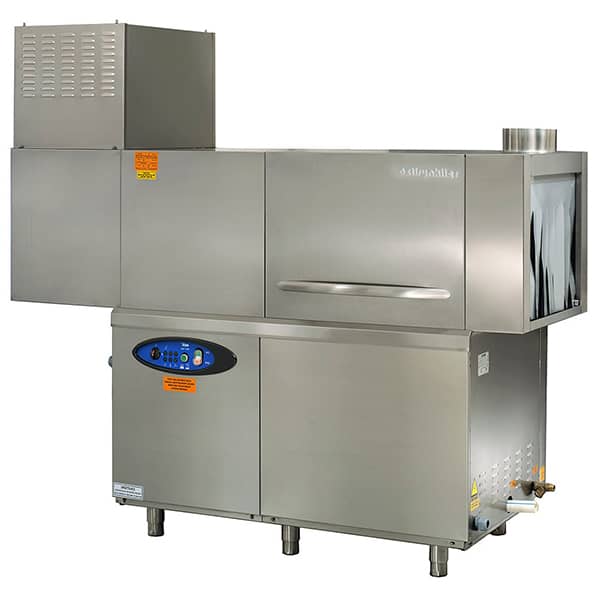

Notify me when its in stockÖztiryakiler OBK 1500 drying conveyor dishwasher model has a capacity of washing 100 racks per hour, performing 1650 plate washing operations, with washing and rinsing tank capacities of 90 / 18 liters, and provides 3 liters of water consumption for each washing cycle. Conveyor dishwasher ensures effective drying with its high-power fan, thanks to the Öztiryakiler OBK 1500 drying model, shortening the time for dishes to dry. It belongs to the hotel type dishwasher group with its user-friendly digital panel, making dishwashing operations easy. Thus, it provides the possibility to fill and heat the boiler and washing tanks with one button. Professional dishwasher is designed with the latest technology features to ensure effective washing by controlling the rinsing and washing temperatures with its thermostats designed for this purpose.
| PRODUCT CODE | 076R.0010K.BD |
| DESCRIPTION | *Body, boiler, and washing tank made of stainless steel *Seamless and rounded corner hygienic washing tank *100 racks per hour washing capacity (Rack dimensions 50cmx50cm) *Effective drying with high-power fan *3 liters of water consumption per washing cycle *Automatic and user-friendly control panel *Continuous washing with drying thanks to the conveyor system *Savings in energy, detergent, and water usage *Washing arms made of stainless steel *Height optimization with adjustable feet *Easy start; possibility to fill and heat boiler and washing tanks with one button *Electrical components and wiring systems comply with international standards and safety *Whole body is insulated and has water protection up to IPX5 standard *Rinsing and washing temperatures are thermostat-controlled for effective washing *Valve system preventing the return of water in the machine to the installation *Washing water temperature 55-60°C (provided the supply water is at least 2 bar and 50°C) *Rinsing water temperature 80-85°C (provided the supply water is at least 2 bar and 50°C) *Right entry table |
| TYPE | Electric |
| WIDTH (mm) | 2050 |
| DEPTH (mm) | 850 |
| HEIGHT (mm) | 1880 |
| NET WEIGHT (Kg) | 250 |
| GROSS WEIGHT (Kg) | 270 |
| VOLUME (m3) | 3.08 |
| CAPACITY | 1650 Plates/Hour |
| ELECTRICAL POWER | 47 |
| VOLT | 400V - 3 NPE |
| FREQUENCY | 50 |
| HOT WATER PRESSURE | 2-4 bar |
| HOT WATER HARDNESS | 0-10 French Hardness |
| COLD WATER INLET DIAMETER | 3/4'' |
| COLD WATER PRESSURE | 2-4 bar |
| COLD WATER HARDNESS | 0-10 French Hardness |
| DRAINAGE INLET DIAMETER | Ø 50 |
| TANK VOLUME | 90 |
| BOILER VOLUME | 18 |
| WASHING PUMP FLOW RATE | 659 |
| RINSING PUMP FLOW RATE | 18 |
| BOILER HEATING POWER | 27 |
| TANK HEATING POWER | 9 |
| WASHING PUMP POWER | 1.5 |
| RINSING PUMP POWER | 0.37 |
| WASHING WATER TEMPERATURE | 55 - 60 |
| RINSING WATER TEMPERATURE | 80 - 85 |
| DRYING FAN POWER | 0.45 |
| MAXIMUM NOISE | 80 |
| PROTECTION CLASS | IPX5 |
| ORIGIN OF PRODUCT | Turkey |
| BRAND | Öztiryakiler |
