Loyka 5323 Cylindrical Material Thickness Gauge

Loyka 5323 Cylindrical Material Thickness Gauge

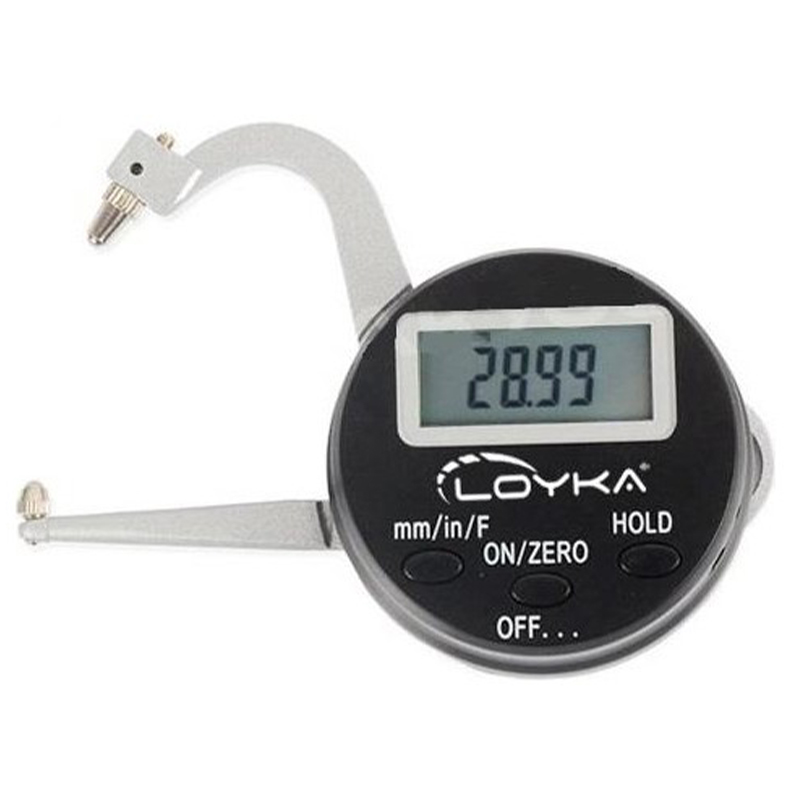

• The Loyka 5323 cylindrical material thickness gauge is a device that can measure the thickness of any material between 0 and 25 mm.

• It is generally used to measure the thickness of circular structures such as grooves, pipes, and similar shapes.

• The display part of the Loyka 5323 digital thickness gauge is made of hard plastic material, while the jaws are made of chrome-plated material.

• The jaws of the Loyka 5323 cylindrical digital thickness gauge are thinner compared to other thickness gauges, allowing measurements in narrow spaces.

• You can lock the measured values on the LCD screen using the "HOLD" button.

• To reset the measured values, you can use the "ZERO" button.

• To turn the device on or off, press and hold the "ON/ZERO/OFF" button.

• The device features a readable LCD screen for displaying your measurements.

• This thickness gauge has two arms: one fixed at the bottom and one movable at the top. Measurements are made using the movable upper arm.

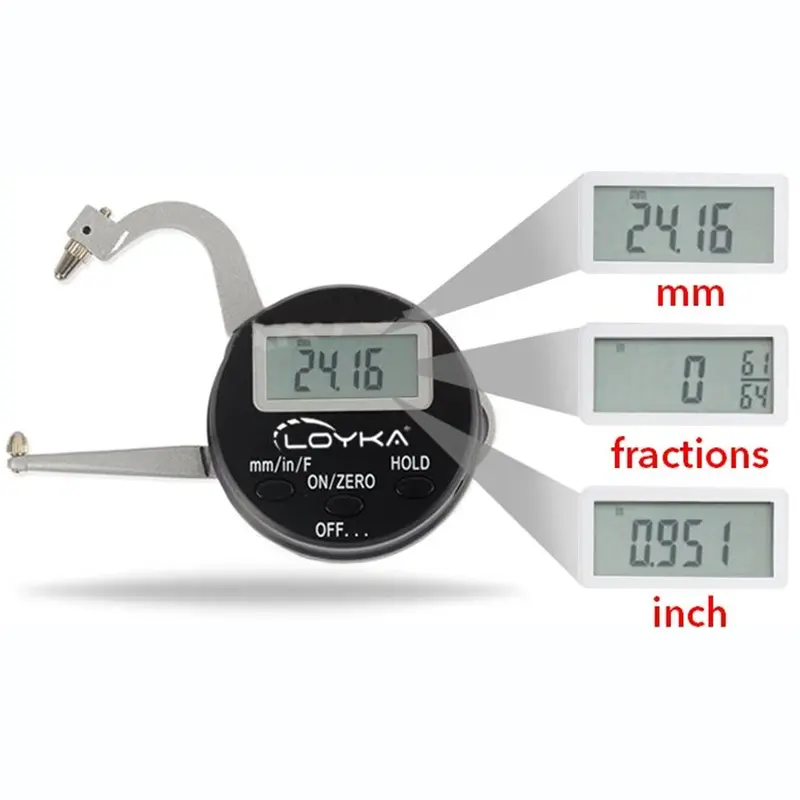

• You can switch between measurement units using the "mm/In/F" button.

• In "F" mode, fractional measurements are displayed in 1/64 increments.

• The pins at the ends of the arms that contact the surface being measured are rounded.

• The package includes 1 Loyka 5323 cylindrical thickness gauge and 1 CR2032 battery.

• The Loyka 5323 cylindrical thickness gauge operates with a CR2032 battery.

TECHNICAL SPECIFICATIONS

• Measurement Range: 0 ... 25 mm

• Accuracy: ±0.05 mm

• Display: LCD

• Digit Height: 0.75 mm

• Hold Feature: Available

• Measurement Units (Inch and Millimeter): Available

• Reset Function: Available

• Power On/Off Button: Available

• Dimensions: 90 x 60 x 20 mm

• Power Source: 1 x CR2032 battery

• Weight: 100 grams
